Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel (I/P) accessory trim plate. Refer to Trim Plate Replacement - I/P Accessory .
  2. Disconnect the cigarette lighter electrical connector (1).

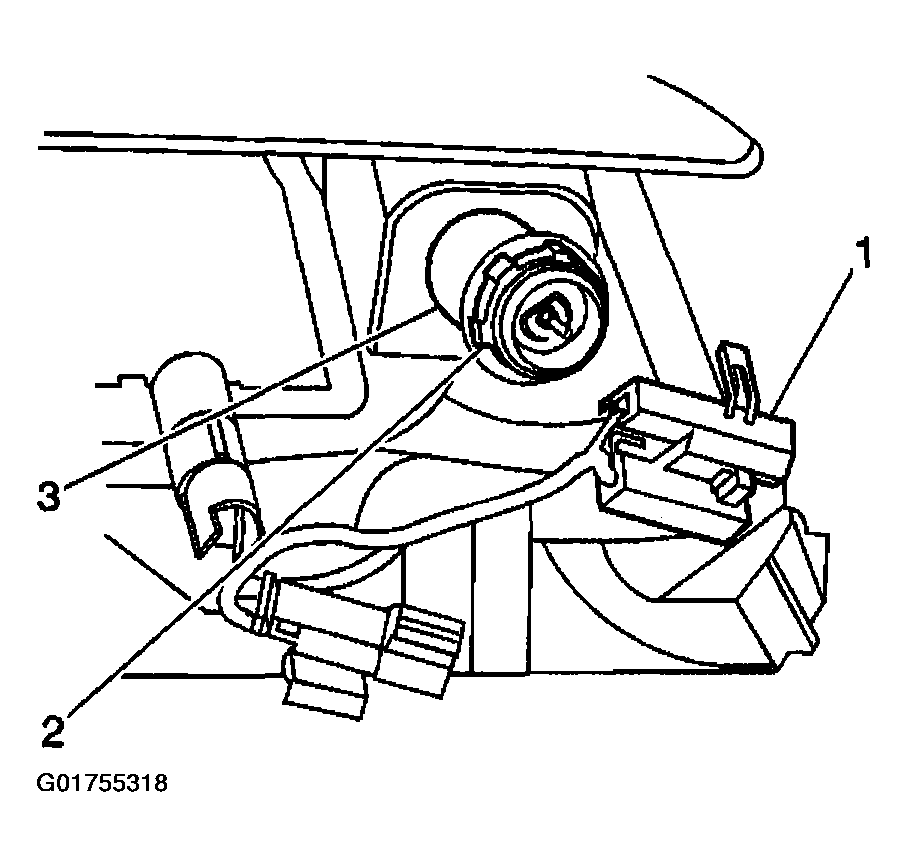

    3. Fig 1: Identifying Cigarette Lighter Connector, Socket Retainer & Spacer
    G01755318Courtesy of GENERAL MOTORS CORP.
  3. Remove the I/P cigarette lighter socket retainer (2).
  4. Remove the cigarette lighter spacer and socket (3) from the I/P ashtray.
