Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the cigarette lighter spacer and socket (3) into the I/P ashtray.

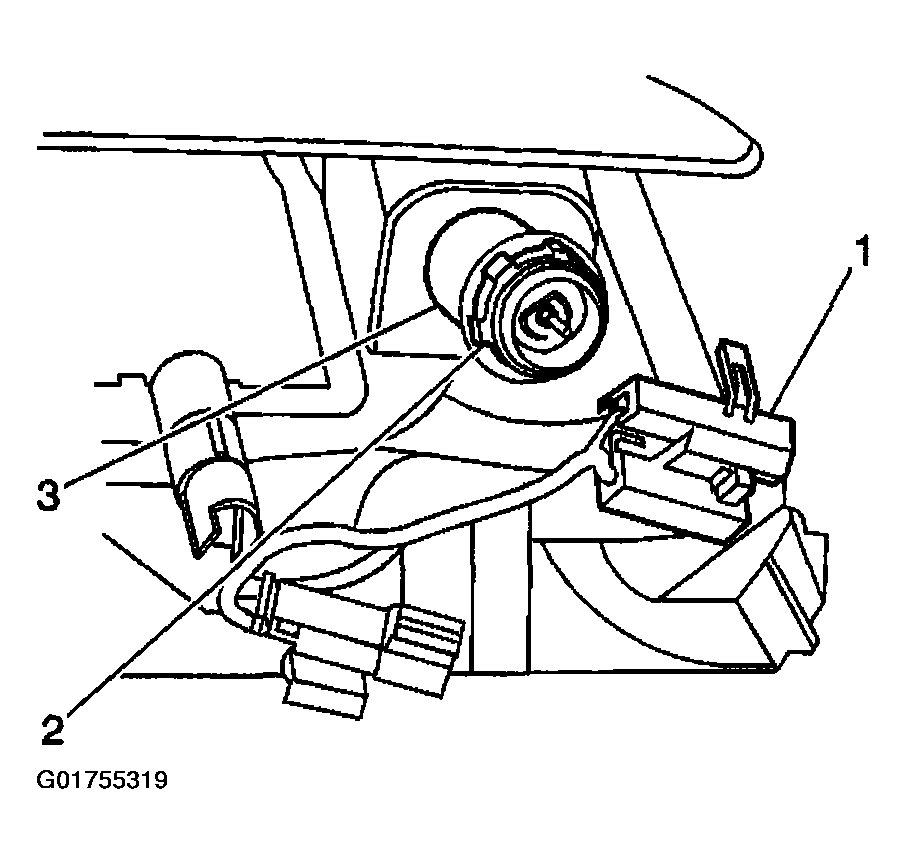

    2. Fig 1: Identifying Cigarette Lighter Connector, Socket Retainer & Spacer
    G01755319Courtesy of GENERAL MOTORS CORP.
  2. Install the I/P cigarette lighter socket retainer (2).
  3. Connect the cigarette lighter electrical connector (1).
  4. Install the instrument panel (I/P) accessory trim plate. Refer to Trim Plate Replacement - I/P Accessory .
