Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel accessory trim plate. Refer to Trim Plate Replacement - I/P Accessory .
  2. Remove the screws (1) from the instrument panel ashtray bracket.

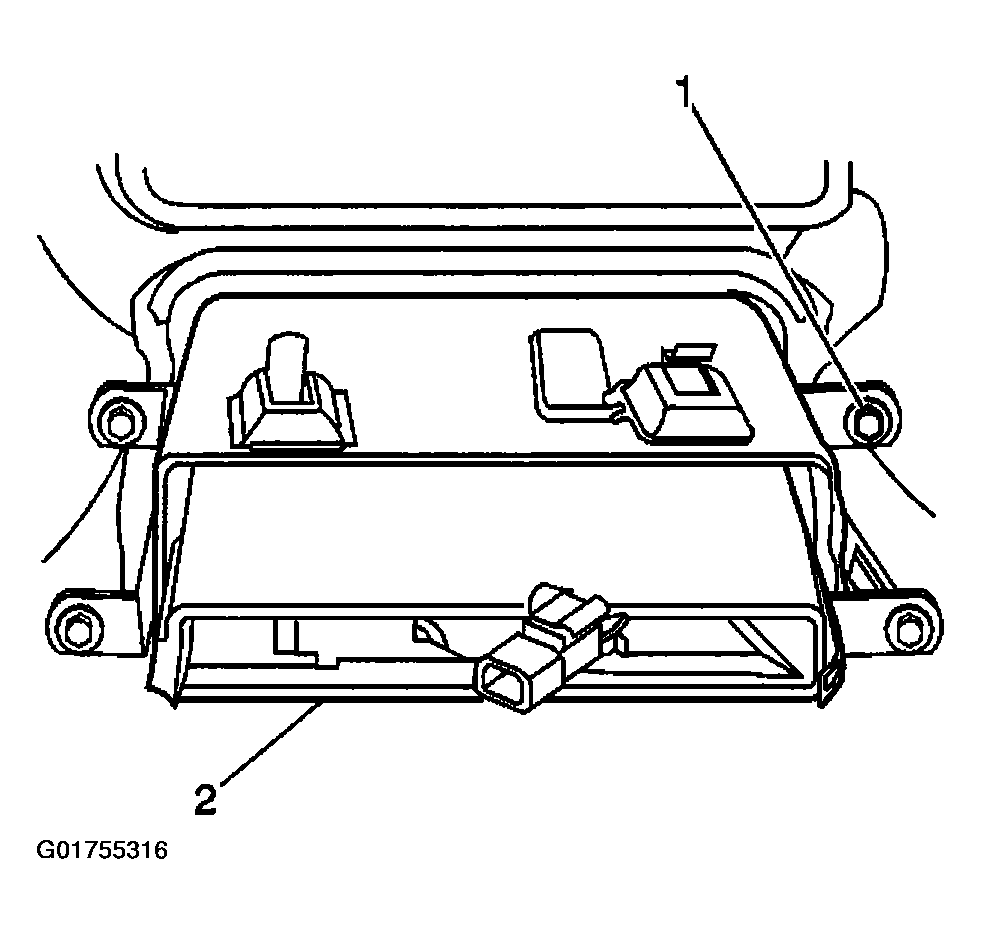

    3. Fig 1: Identifying Ashtray & Screws
    G01755316Courtesy of GENERAL MOTORS CORP.
  3. Remove the I/P ashtray (2) from the instrument panel accessory trim plate.
  4. Disconnect the electrical connector from the ashtray.
