Scan Tool Output Controls

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

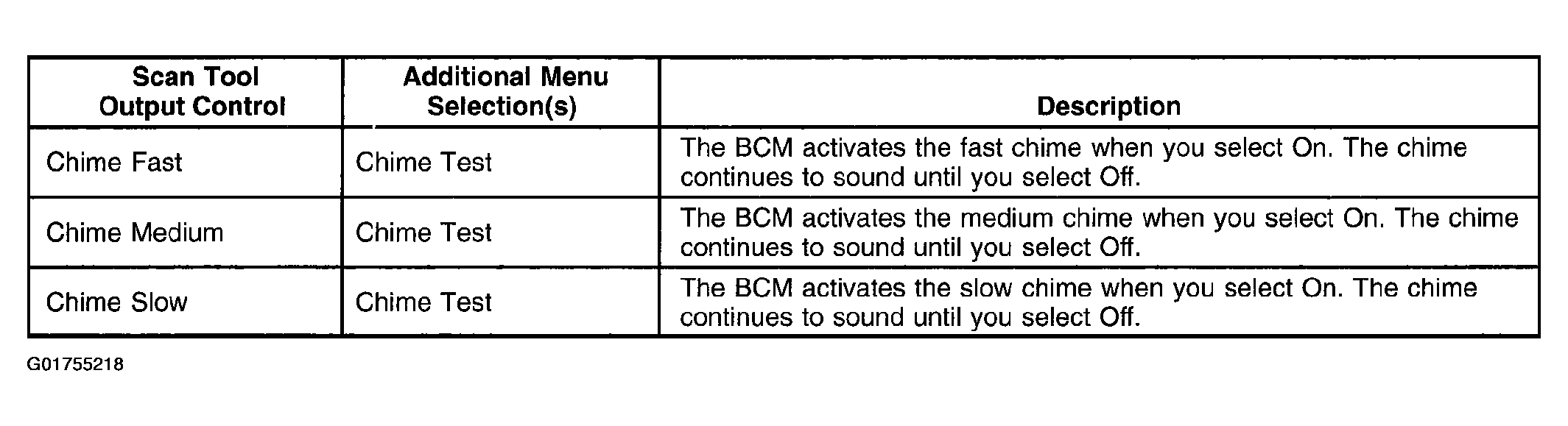

Fig 1: Identifying Body Control Module (BCM) Scan Tool Output Controls

Courtesy of GENERAL MOTORS CORP.

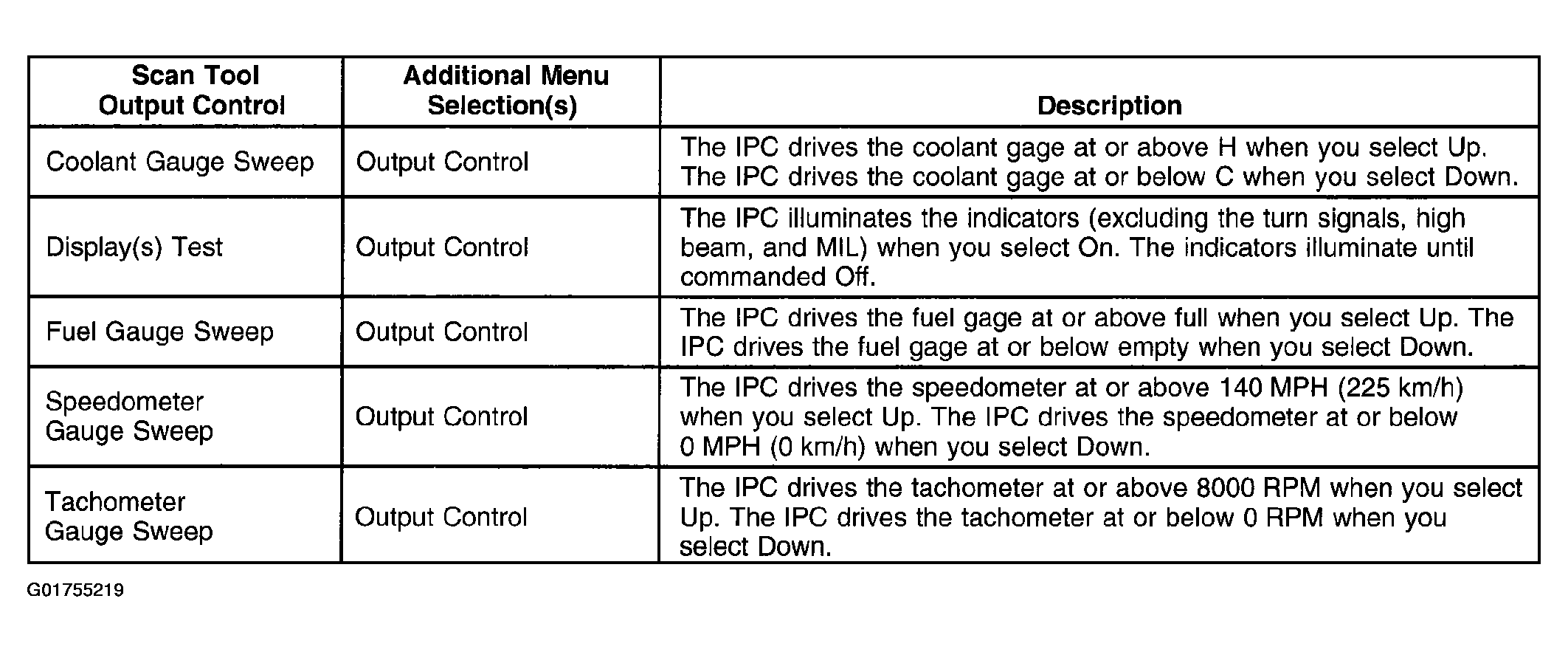

Fig 2: Identifying Instrument Panel Cluster (IPC) Scan Tool Output Controls

Courtesy of GENERAL MOTORS CORP.

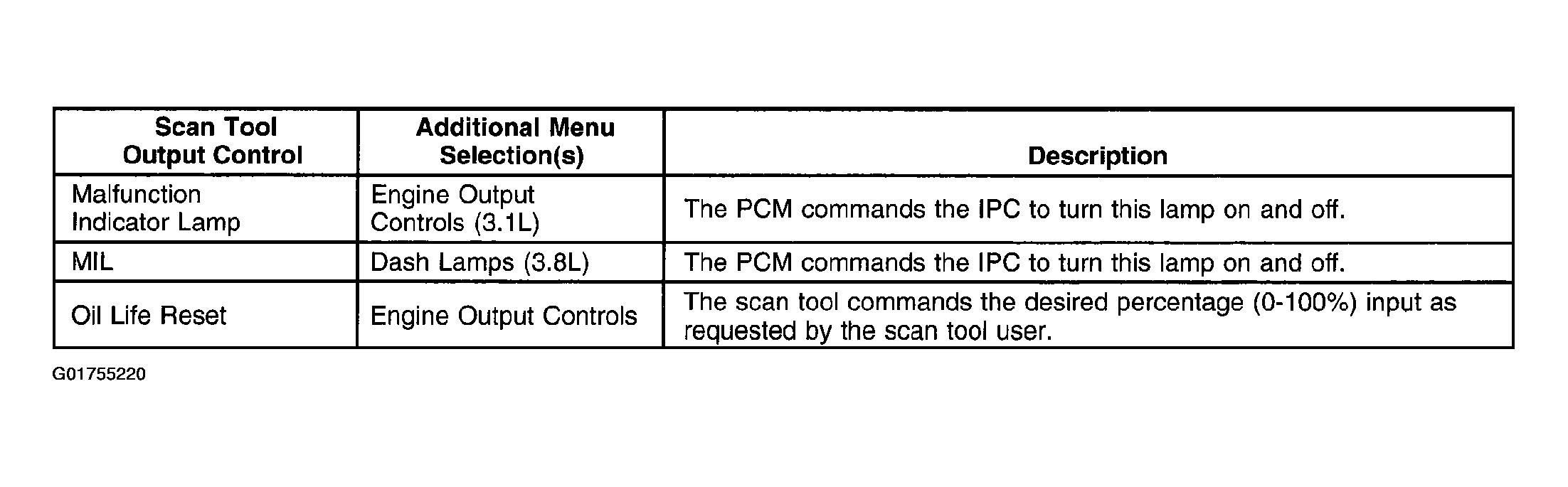

Fig 3: Identifying Powertrain Control Module (PCM) Scan Tool Output Controls

Courtesy of GENERAL MOTORS CORP.
