Test Description

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the step numbers on the diagnostic table.

3. This step tests for a high resistance in the signal circuit and the low reference circuit of the fuel level sensor.
13. DTCs will be set in the PCM when you perform this diagnostic table.

Fig 1: Identifying Fuel Gage Inaccurate or Inoperative Diagnostic Table (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

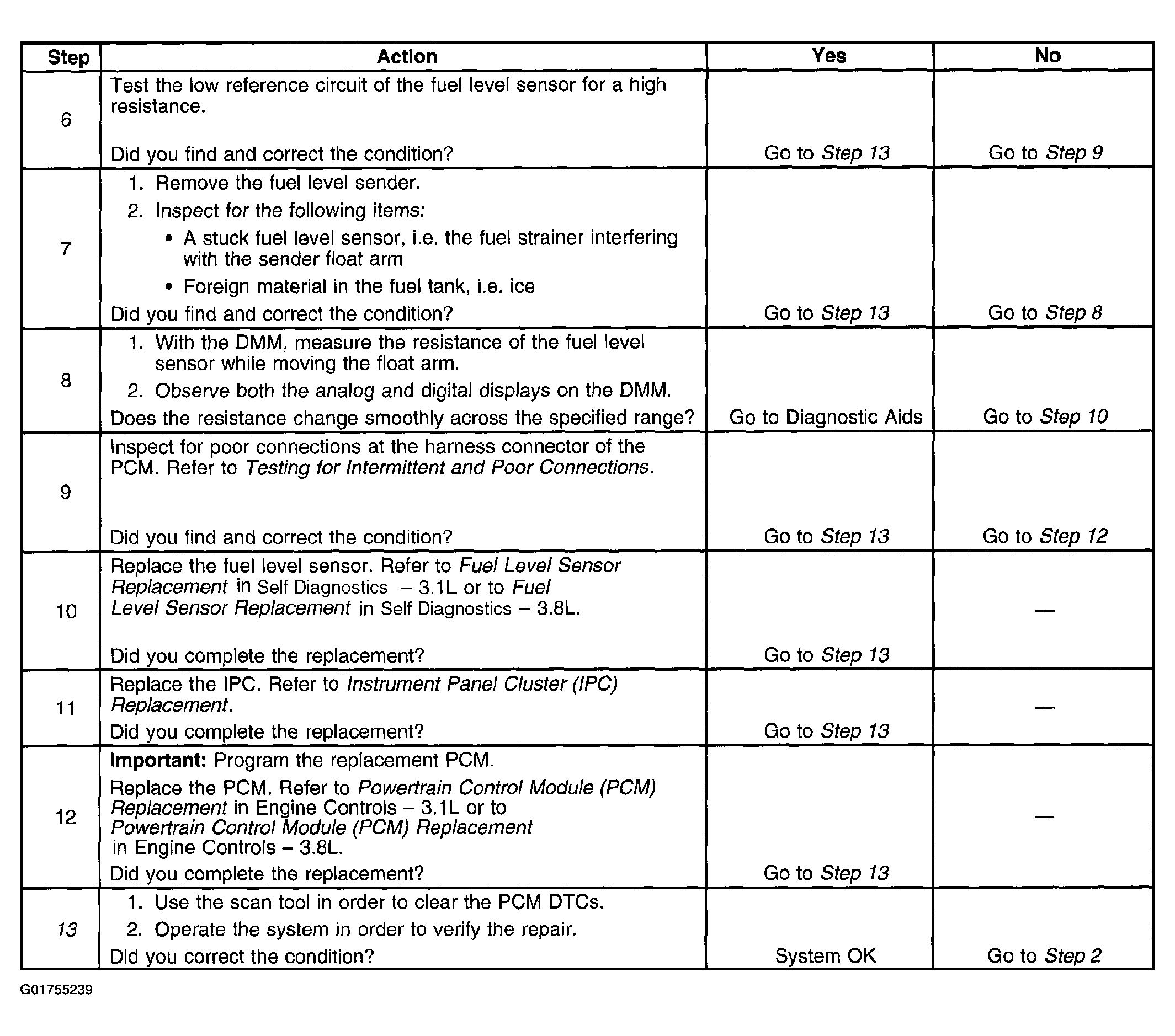

Fig 2: Identifying Fuel Gage Inaccurate or Inoperative Diagnostic Table (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
