Test Description

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

The number(s) below refer to the step number(s) on the diagnostic table.

  1. 5.  Test the entire ignition voltage circuit, which includes the ignition switch and the fuses.
  2. 6.  Test the entire crank voltage circuit, which includes the ignition switch and the fuse.
  3. 7.  Test the entire ignition 1 voltage circuit, which includes the ignition switch and the fuse.

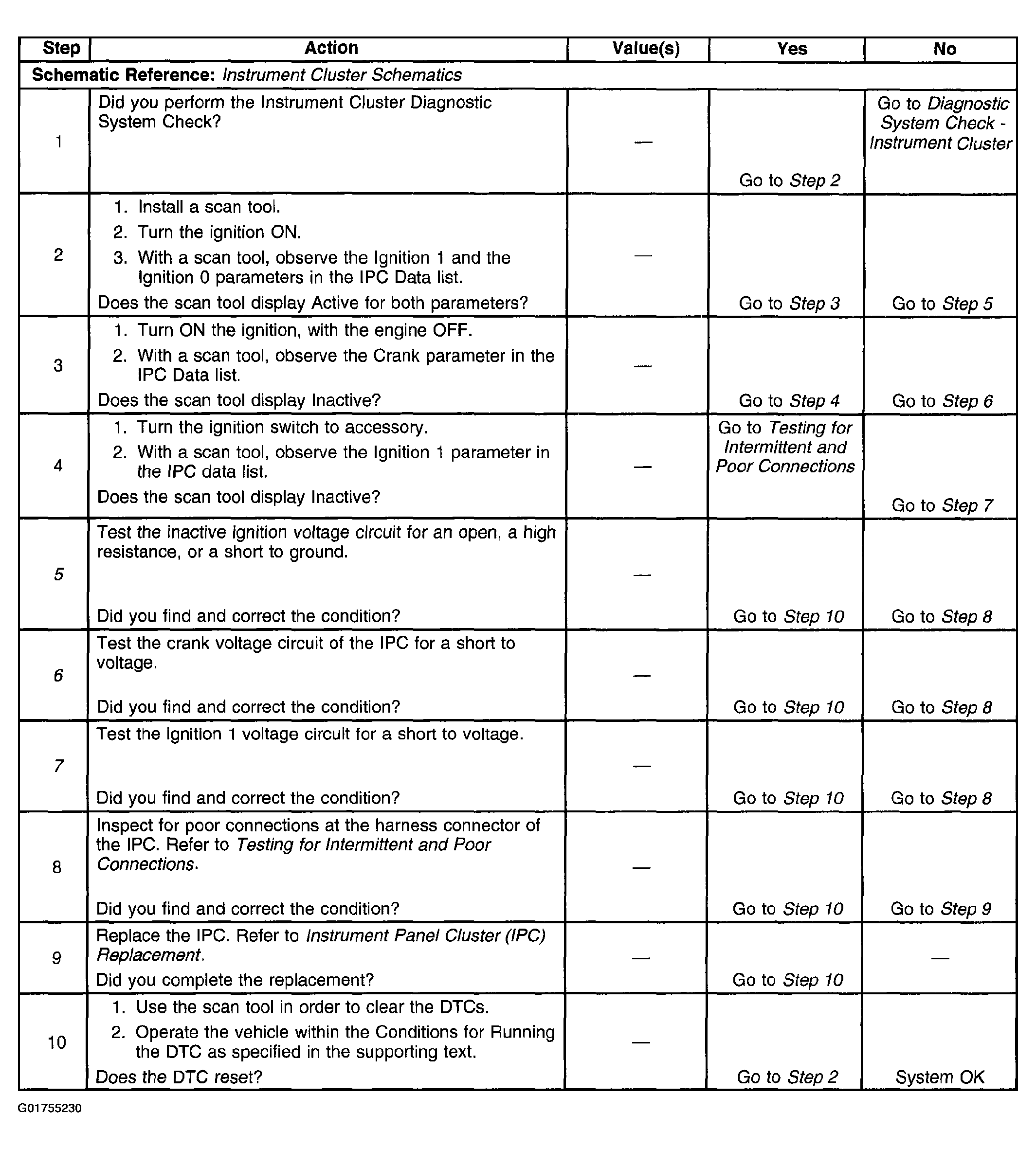

    4. Fig 1: Identifying DTC B0608 Diagnostic Table
    G01755230Courtesy of GENERAL MOTORS CORP.
