Instrument Panel, Gages, and Console Connector End Views

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

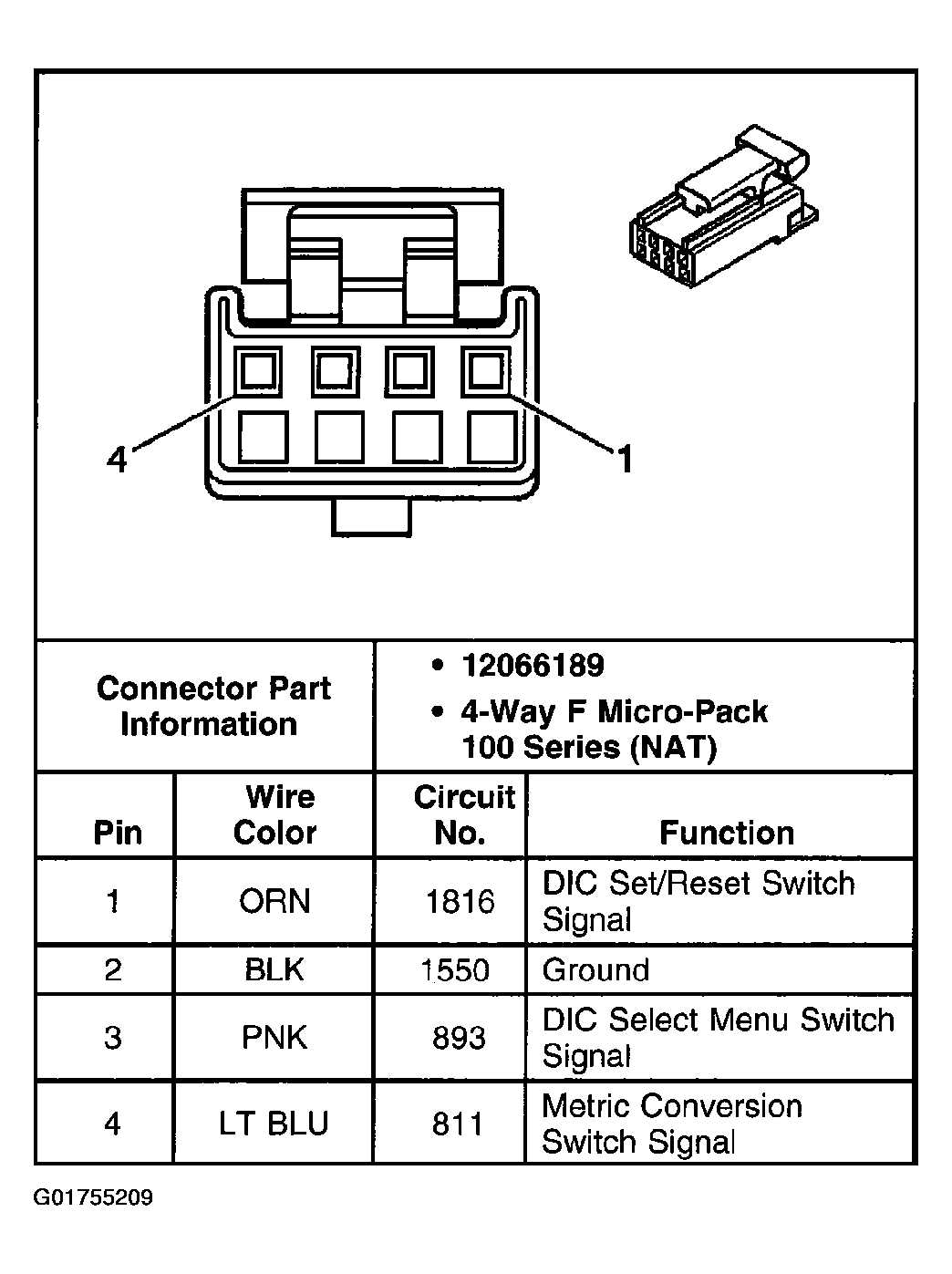

Fig 1: Identifying Driver Information Center (DIC) Switch (Regal) Connector End View

Courtesy of GENERAL MOTORS CORP.

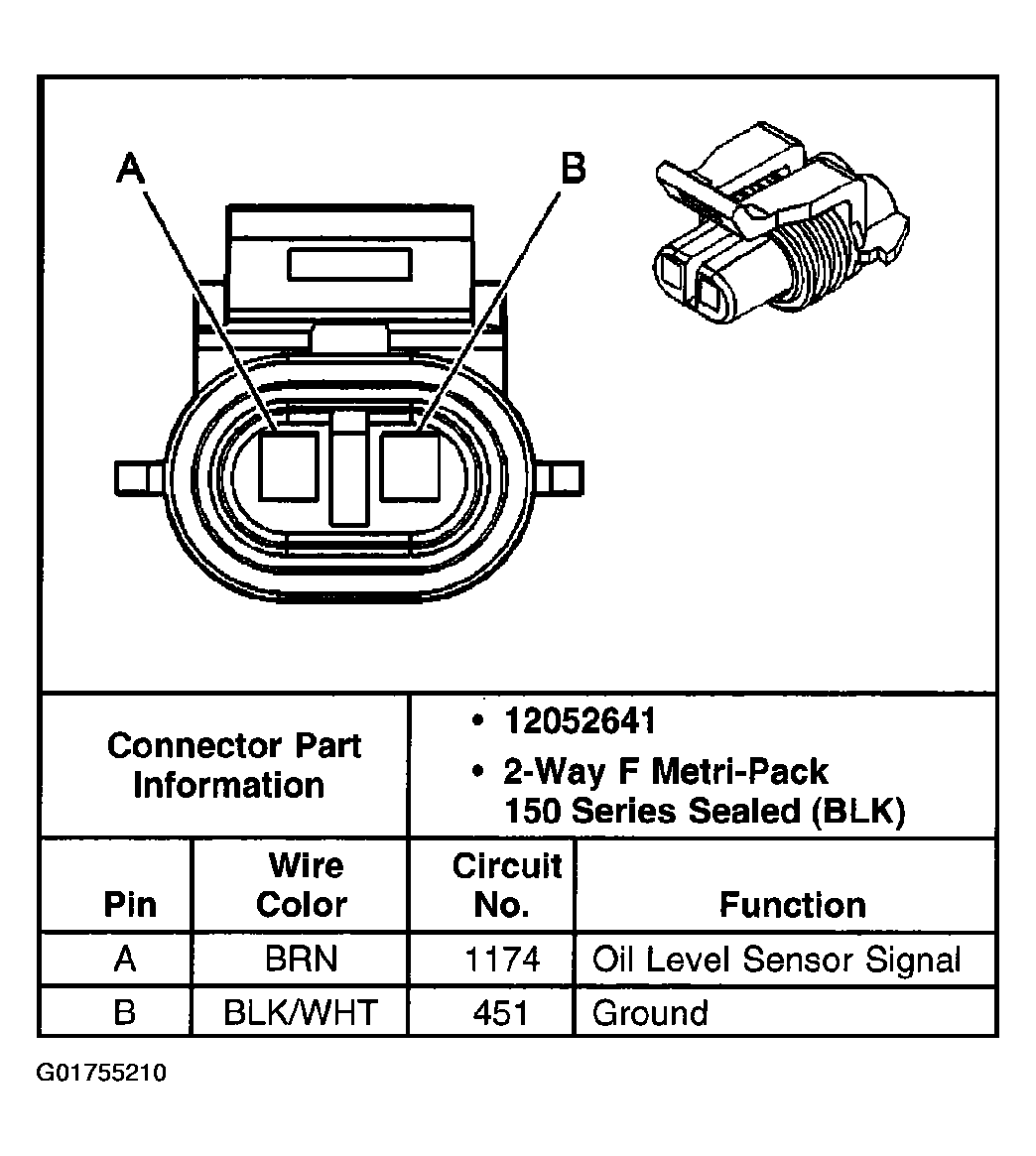

Fig 2: Identifying Engine Oil Level Sensor Connector End View

Courtesy of GENERAL MOTORS CORP.

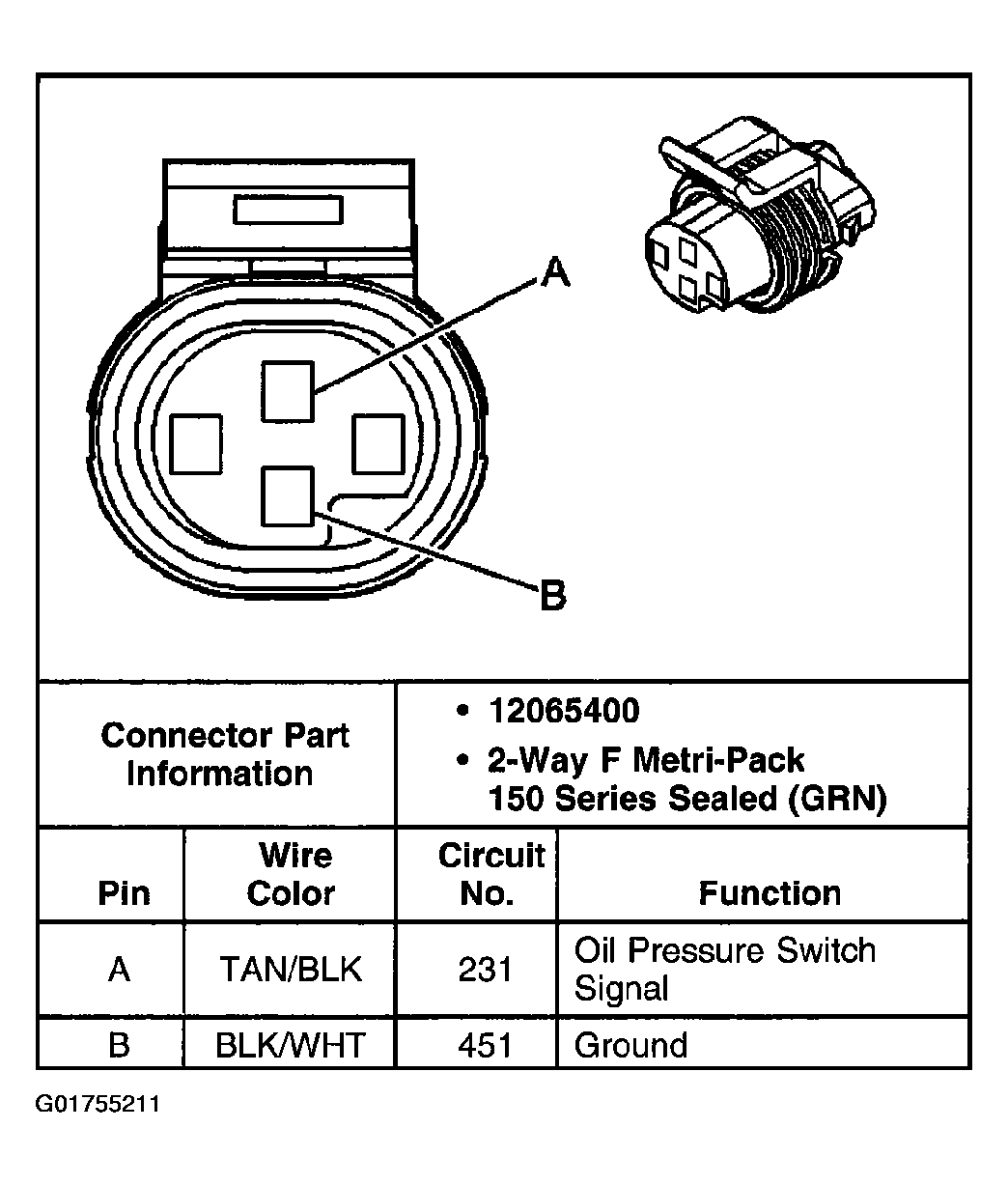

Fig 3: Identifying Engine Oil Pressure (EOP) Switch (L36/L67) Connector End View

Courtesy of GENERAL MOTORS CORP.

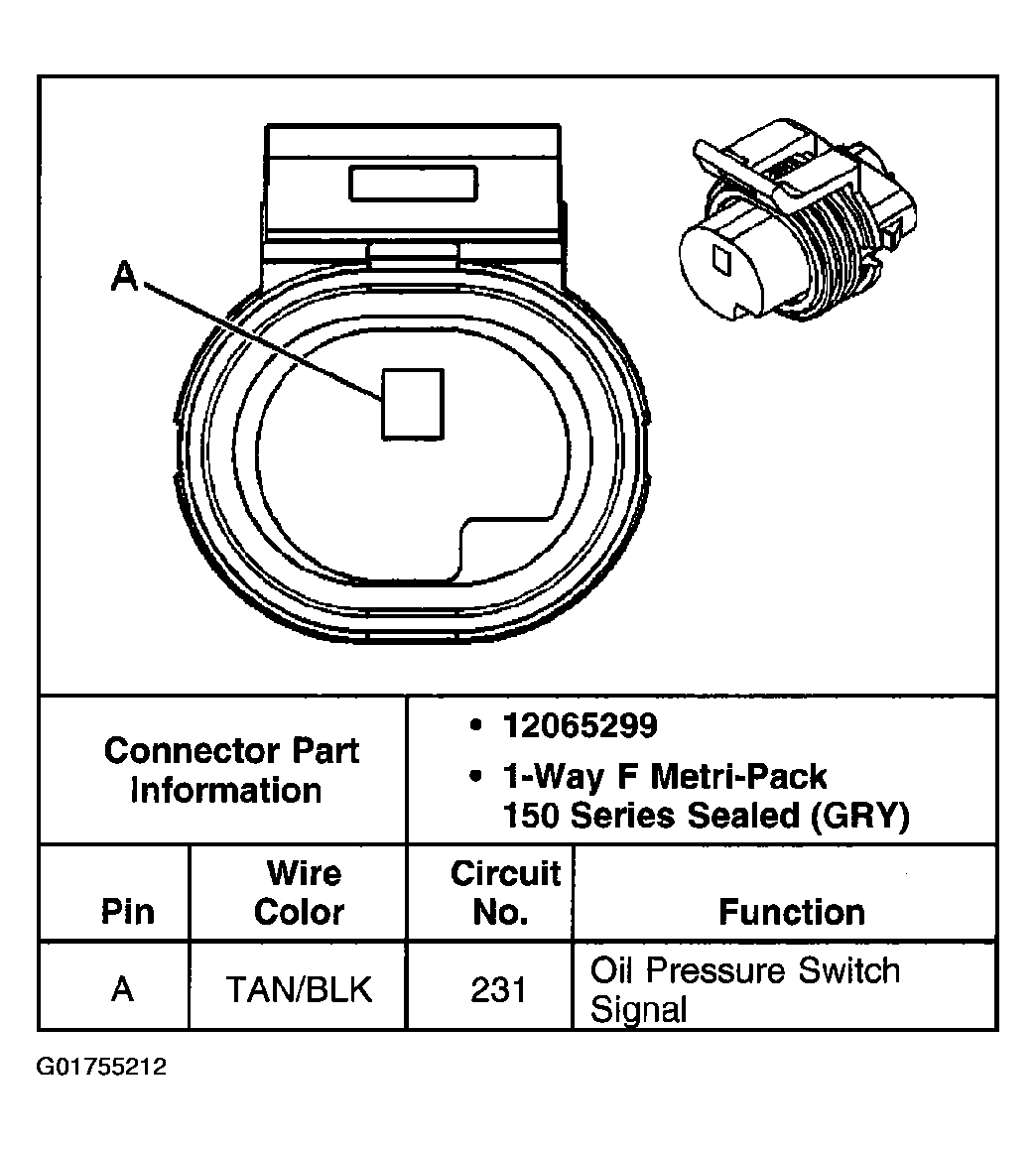

Fig 4: Identifying Engine Oil Pressure (EOP) Switch (LG8) Connector End View

Courtesy of GENERAL MOTORS CORP.

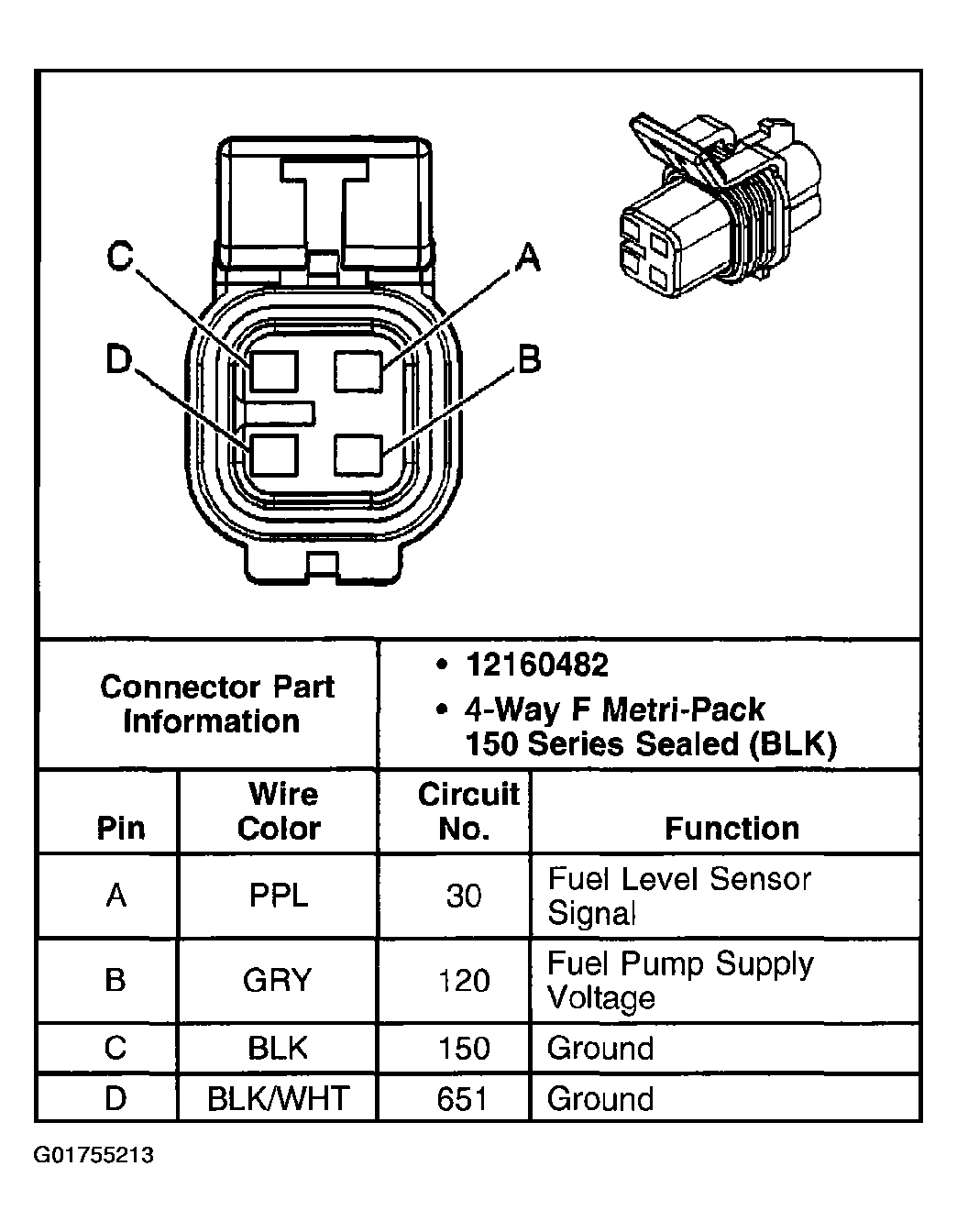

Fig 5: Identifying Fuel Pump and Sender Assembly Connector End View

Courtesy of GENERAL MOTORS CORP.

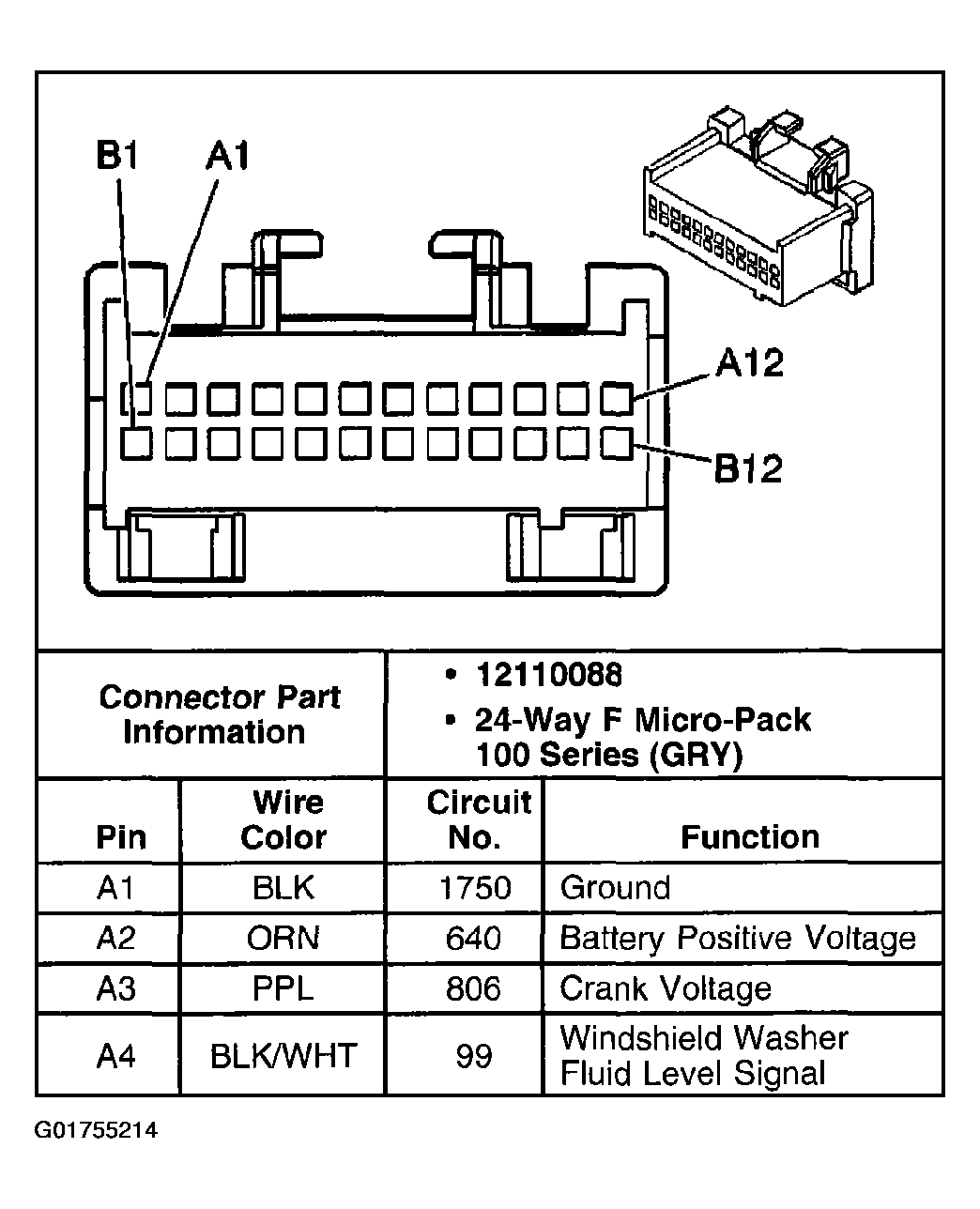

Fig 6: Identifying Instrument Panel Cluster (IPC) Connector End View (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

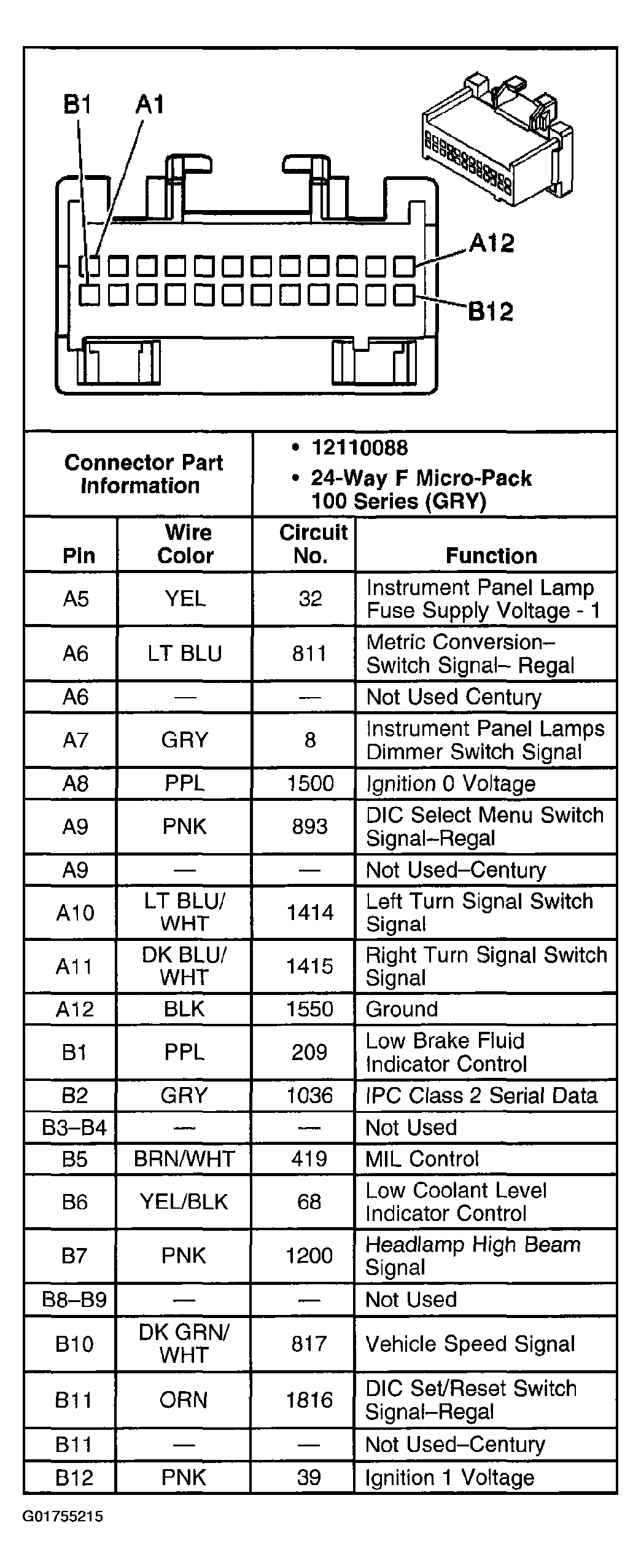

Fig 7: Identifying Instrument Panel Cluster (IPC) Connector End View (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
