Upper Radiator Support: Installation

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix and 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

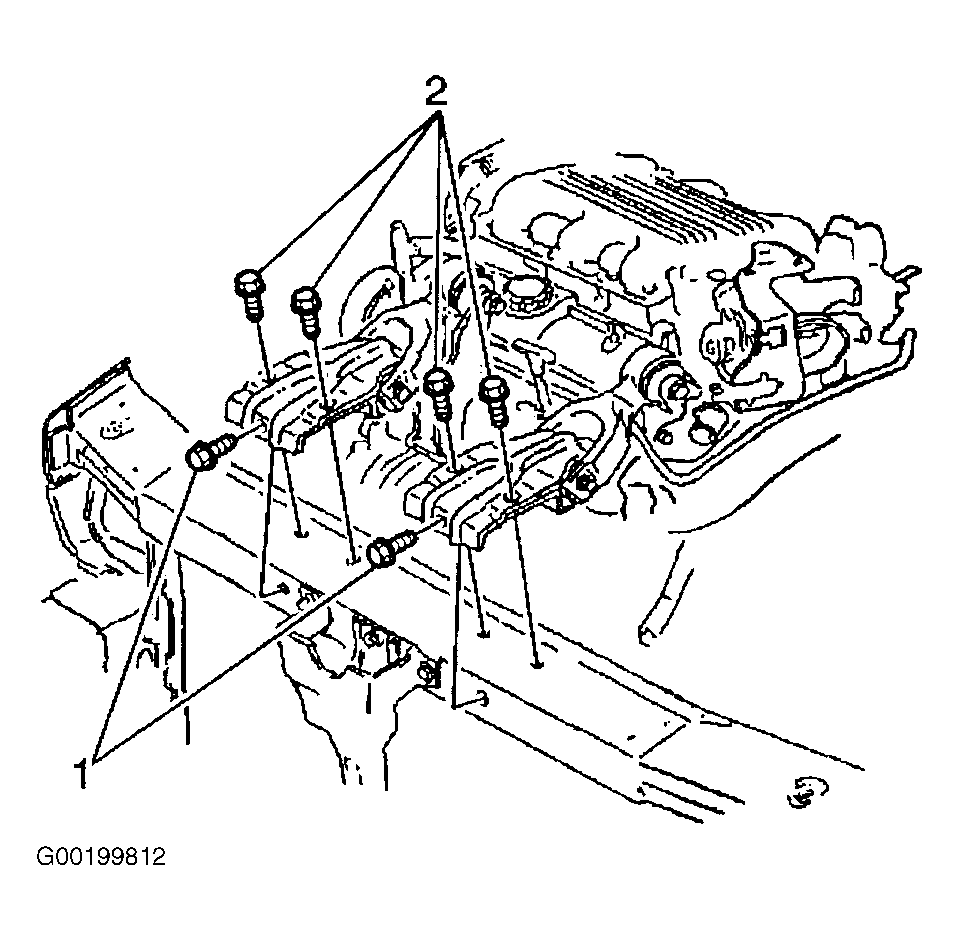

  1. Position the engine mount strut bracket over the upper radiator support. Make sure that the engine mount strut bracket and the engine mount strut are aligned to the proper holes of the upper radiator support. The proper torque sequence is shown (1 and 2). See Figure .
  2. Install and tighten the engine mount strut bracket bolts. The following is a mandatory torque sequence:
    1. Tighten the horizontal engine mount strut bracket bolt (1) to the engine mount strut bracket. Tighten the horizontal engine mount strut bracket bolt to specification. See Figure . See TORQUE SPECIFICATIONS  .
    2. Tighten the vertical engine mount strut bracket bolts (2) to the engine mount strut bracket. Tighten the horizontal engine mount strut bracket bolt to specification. See Figure . See TORQUE SPECIFICATIONS  .
  3. Install the engine mount strut to the engine mount strut bracket at the upper radiator support. See ENGINE MOUNT STRUT  .
