Air Cleaner Intake Duct: Installation

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix and 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

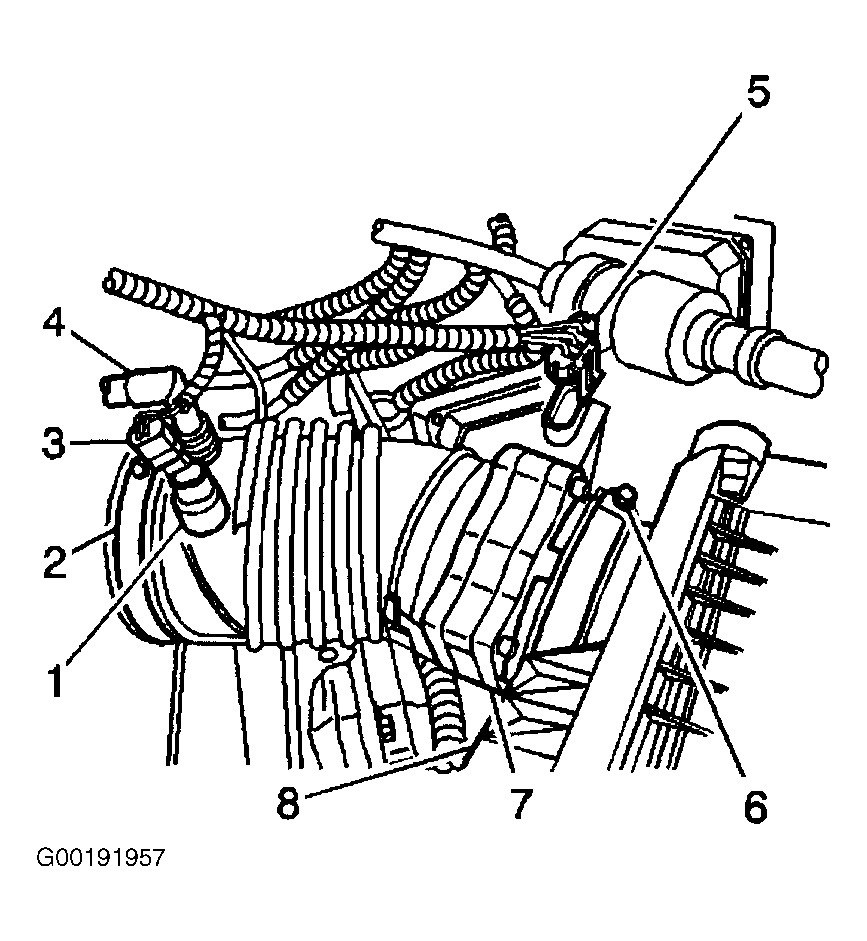

  1. If removed, install the IAT sensor (1). See Figure .
  2. Install the air cleaner intake duct to the MAF sensor (7). See Figure .
  3. Install the air cleaner intake duct to the throttle body and the air cleaner assembly.
  4. Install the air cleaner intake duct clamps (2 and 6). See Figure . Tighten the clamps to specification. See TORQUE SPECIFICATIONS  .
  5. Connect the MAF sensor electrical connector (5). See Figure .
  6. Connect the IAT sensor electrical connector (3). See Figure .
  7. Install the PCV tube (4) to the air cleaner intake duct. See Figure .
