Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the left side insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - LEFT in GAUGES AND INSTRUMENT PANELS .
  2. Remove the aspirator hose at the muffler.
  3. Remove the aspirator mounting screws.

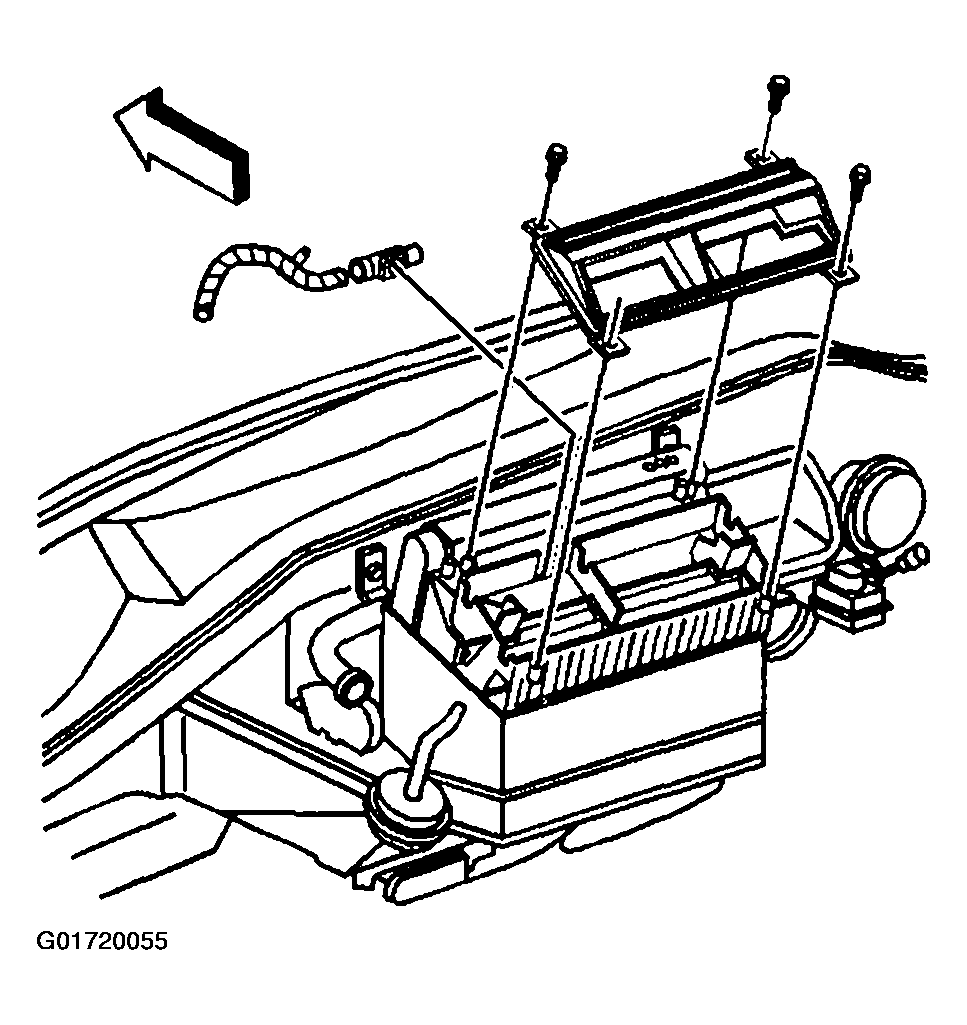

    Fig 1: Aspirator Mounting Screws And Aspirator Hose
    G01720055Courtesy of GENERAL MOTORS CORP.
  4. Use a flat blade tool to pry the aspirator out of the HVAC case.
