Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the electrical connector (1) from the ambient air temperature sensor (3) that is located on the right front radiator air baffle.
  2. Remove the push-in retainer (2) from the ambient air temperature sensor.
  3. Remove the ambient air temperature sensor (3) from the radiator air baffle.

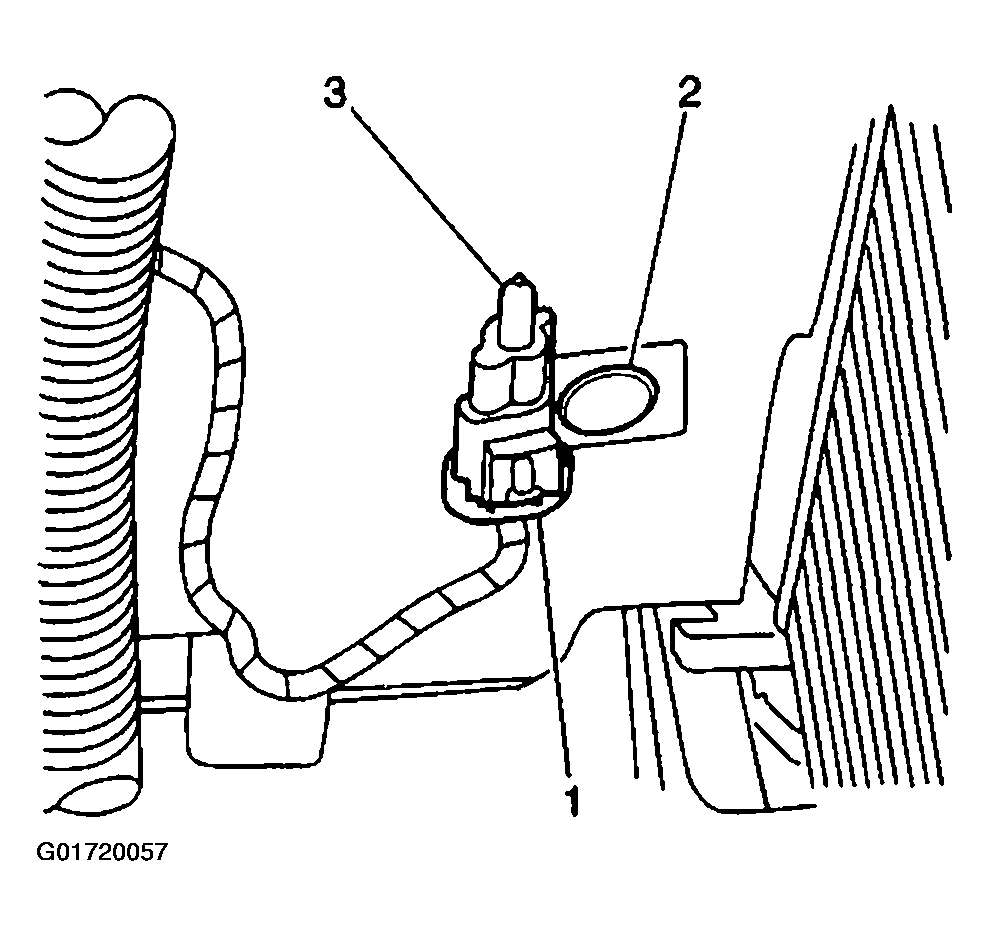

Fig 1: Electrical Connector And Ambient Air Temperature Sensor
G01720057Courtesy of GENERAL MOTORS CORP.
