Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the right side instrument panel insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - RIGHT in GAUGES AND INSTRUMENT PANELS
  2. Remove the instrument panel compartment. Refer to COMPARTMENT REPLACEMENT - IP in GAUGES AND INSTRUMENT PANELS .
  3. Disconnect the electrical connector from the right air temperature actuator.

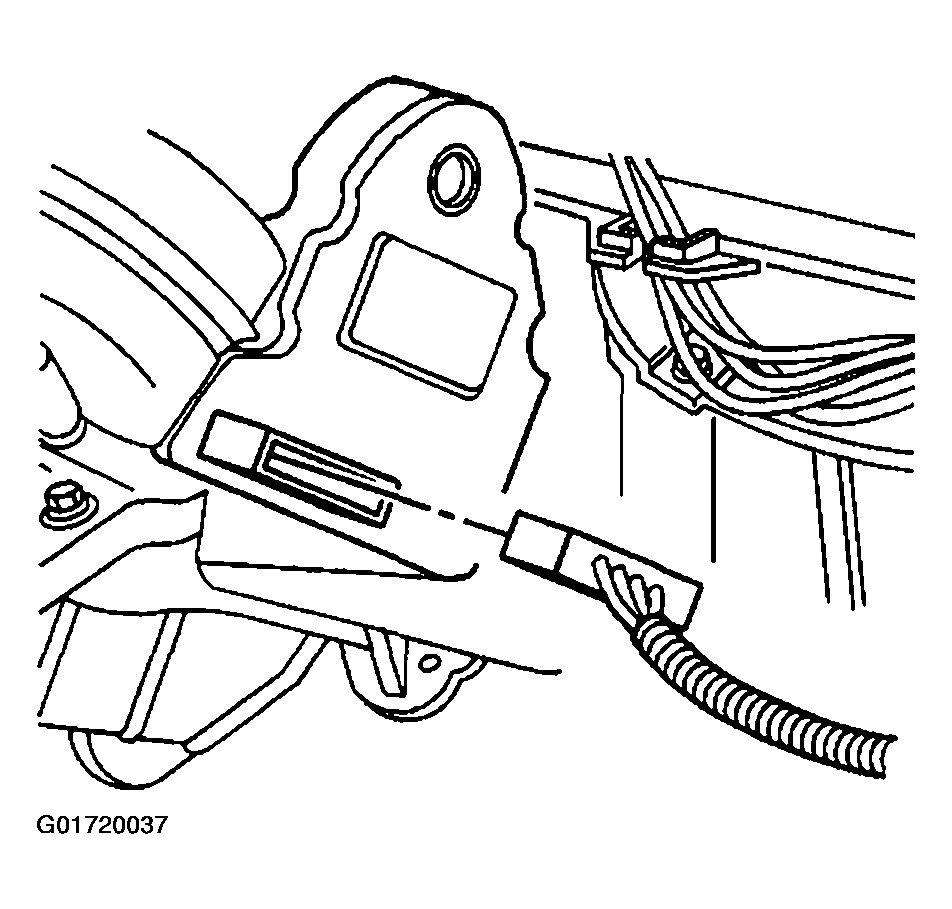

    Fig 1: Electrical Connector To The Right Air Temperature Actuator
    G01720037Courtesy of GENERAL MOTORS CORP.
  4. Remove the screws which secure the right air temperature actuator.
  5. Remove the electric actuator.

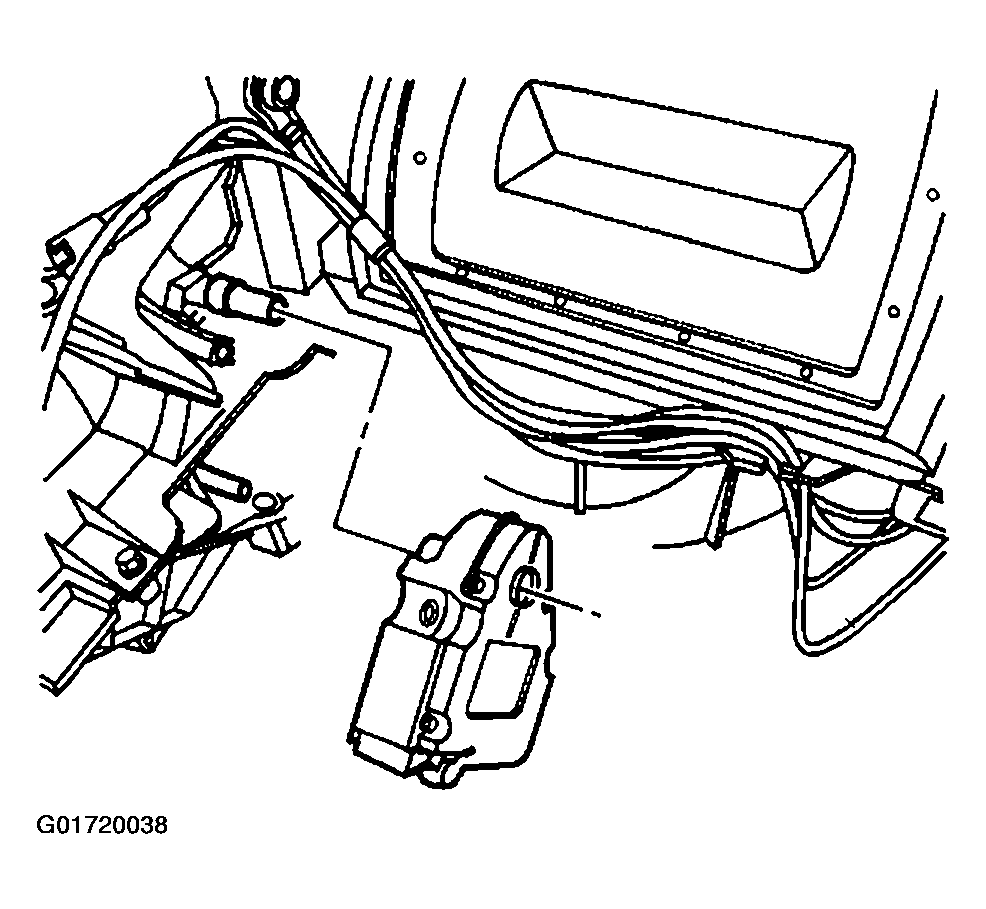

Fig 2: Electric Actuator Driver
G01720038Courtesy of GENERAL MOTORS CORP.
