Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the left instrument panel insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - LEFT in GAUGES AND INSTRUMENT PANELS .
  2. Remove the knee bolster. Refer to KNEE BOLSTER REPLACEMENT in GAUGES AND INSTRUMENT PANELS .
  3. Disconnect the electrical connector from the left air temperature actuator.

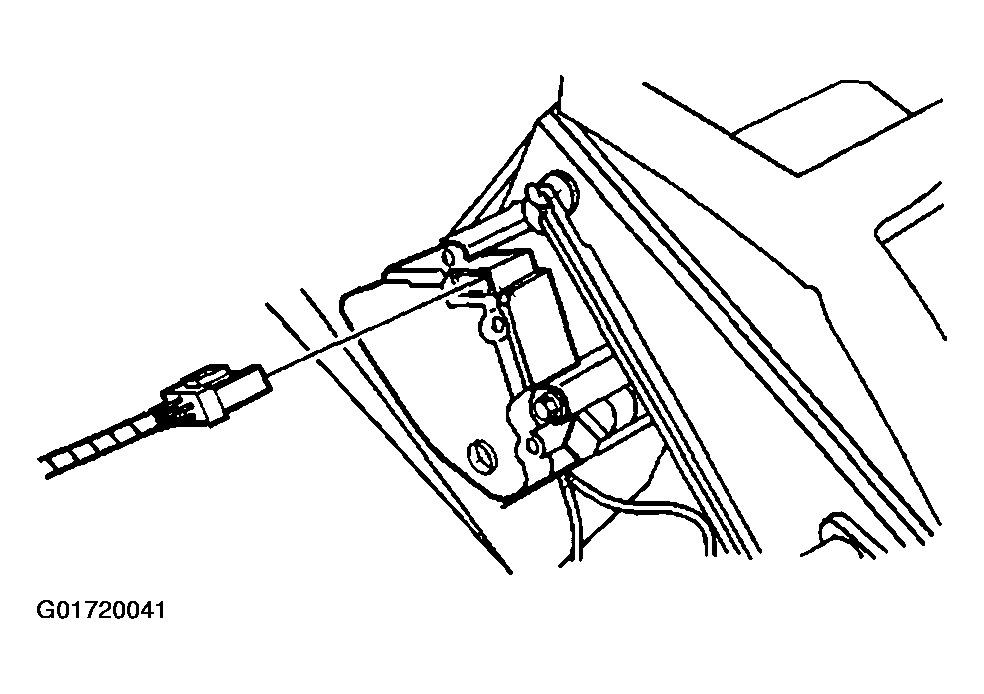

    Fig 1: Electrical Connector To The Left Air Temperature Actuator
    G01720041Courtesy of GENERAL MOTORS CORP.
  4. Remove the mounting screws from the left air temperature actuator.
  5. Remove the left air temperature actuator.

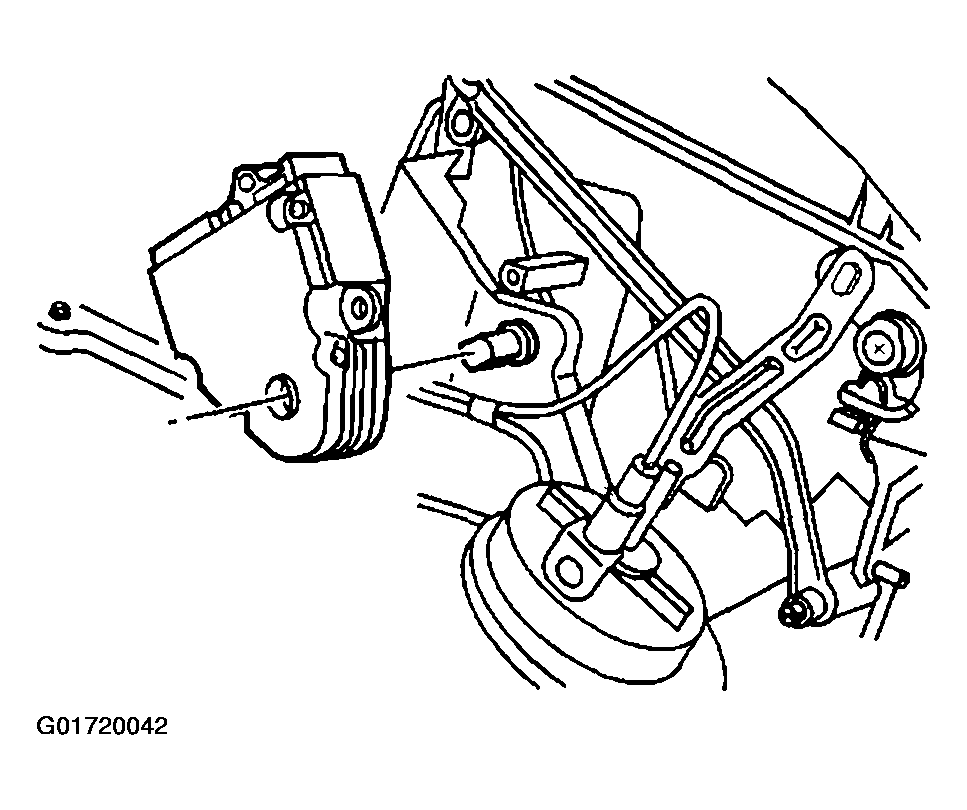

    Fig 2: Left Air Temperature Actuator
    G01720042Courtesy of GENERAL MOTORS CORP.
