Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the left camshafts. Refer to Camshaft Replacement - Left .

    Important:  If the followers are being reused, arrange them so that they may be put back in their original locations.

  2. Remove the camshaft followers.
  3. Clean and inspect the rocker arms. Refer to VALVE ROCKER ARMS CLEANING AND INSPECTION .

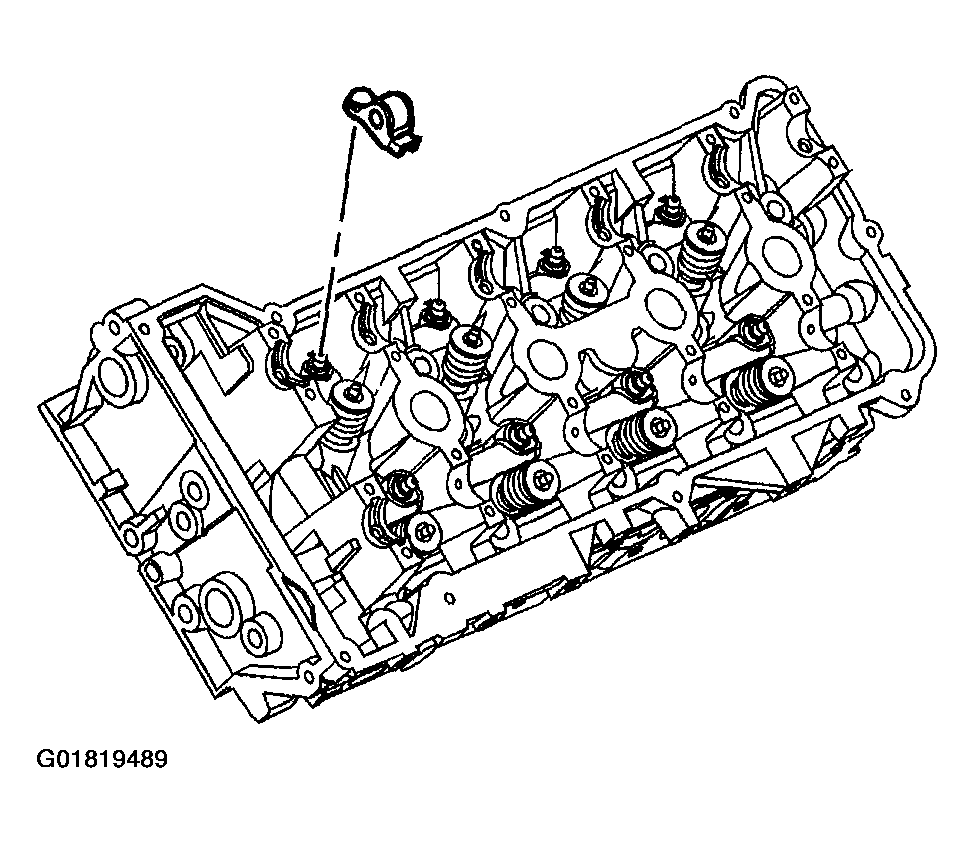

    Fig 1: Removing Camshaft Followers
    G01819489Courtesy of GENERAL MOTORS CORP.
