Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine oil pan. Refer to Oil Pan Replacement .
  2. Remove the oil pump pickup tube support nut (3) from the main bearing stud.
  3. Remove the mounting bolt (1) from the oil manifold plate.
  4. Remove the oil pump pickup tube (2).

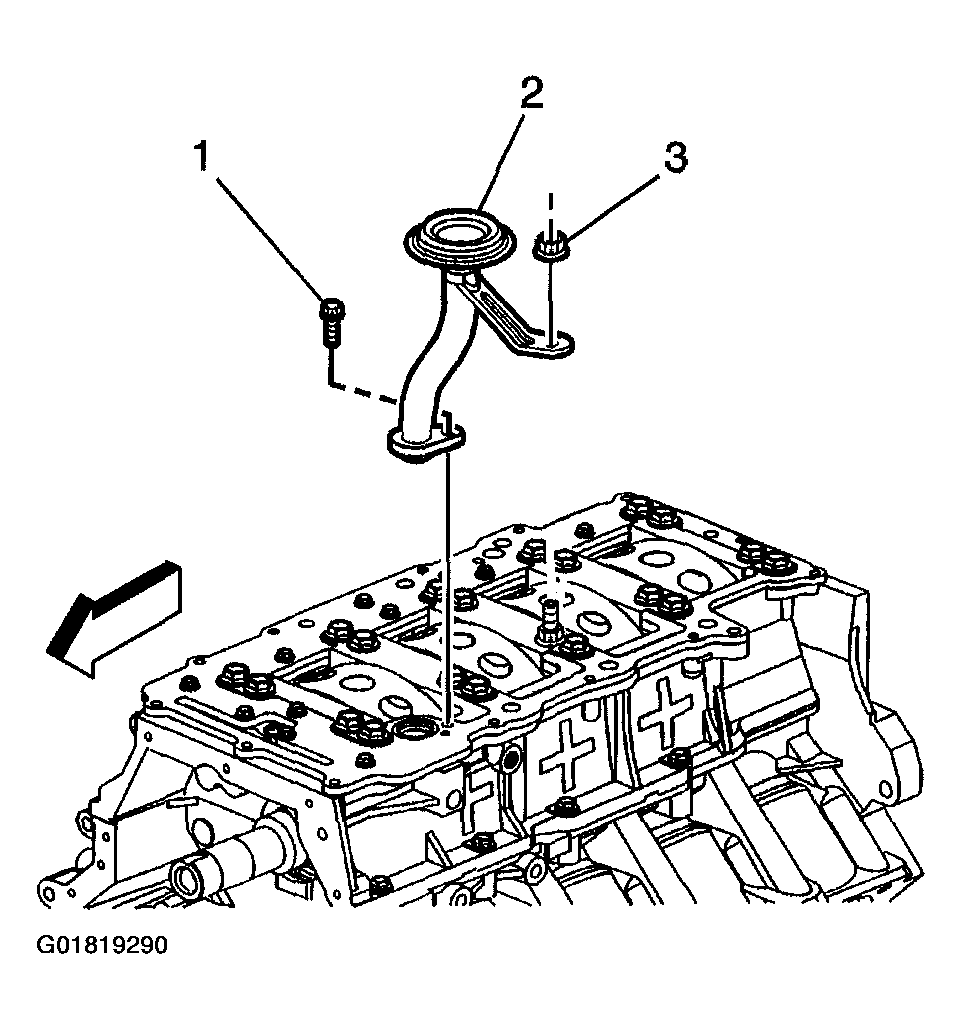

    Fig 1: Removing Oil Pump Pipe & Screen Assembly
    G01819290Courtesy of GENERAL MOTORS CORP.
