Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the rear tab with the slot in the rear bracket and push the sight shield inward to engage.
  2. Pull sight shield down and align the studs on the intake manifold with the holes in the sight shield.
    CAUTION: Refer toFASTENER NOTICE .
  3. Install the fuel injector sight shield (1) nuts (2).

    Tighten

    Tighten the fuel injector sight shield nuts to 3 N.m (27 in lbs).

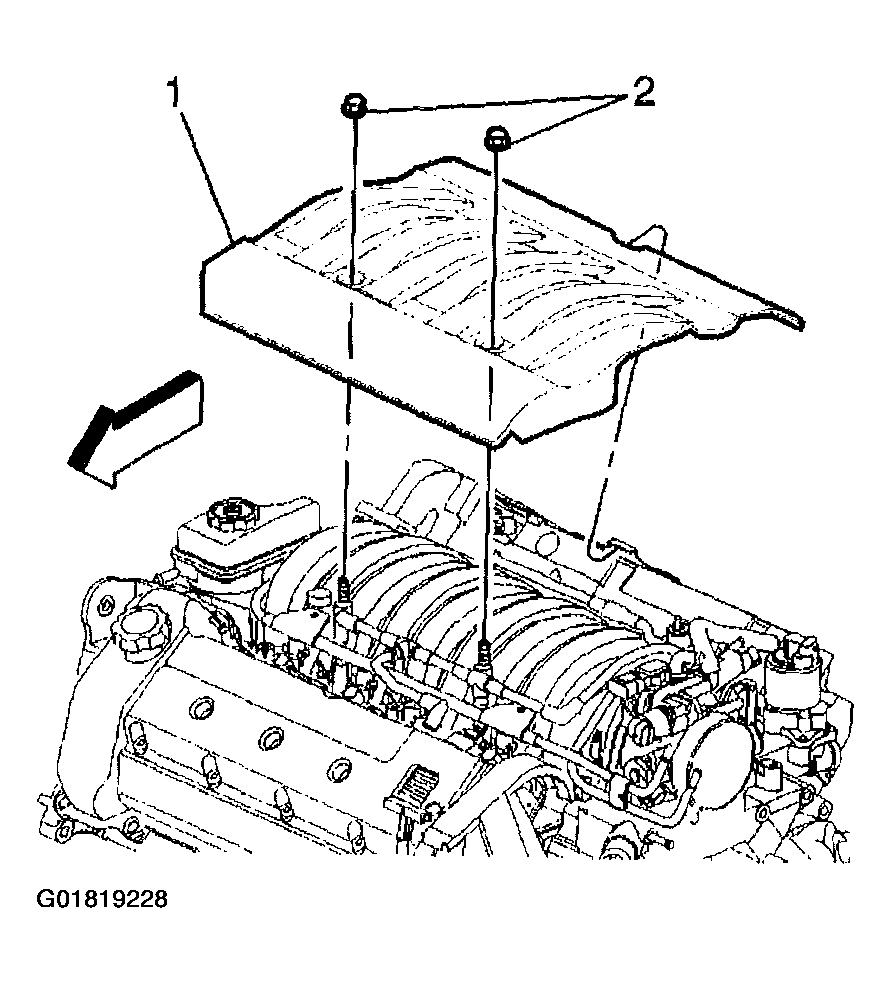

    Fig 1: Installing Fuel Injector Sight Shield
    G01819228Courtesy of GENERAL MOTORS CORP.
