Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the J 28467-B.
  2. Remove the J 42478.
    CAUTION: Refer toFASTENER NOTICE .
  3. Install the two rearward strut bolts to the right and left strut towers.

    Tighten

    Tighten the strut tower bolts to 45 N.m (33 ft lbs).

  4. Install the air inlet grill. Refer to AIR INLET GRILLE PANEL REPLACEMENT .

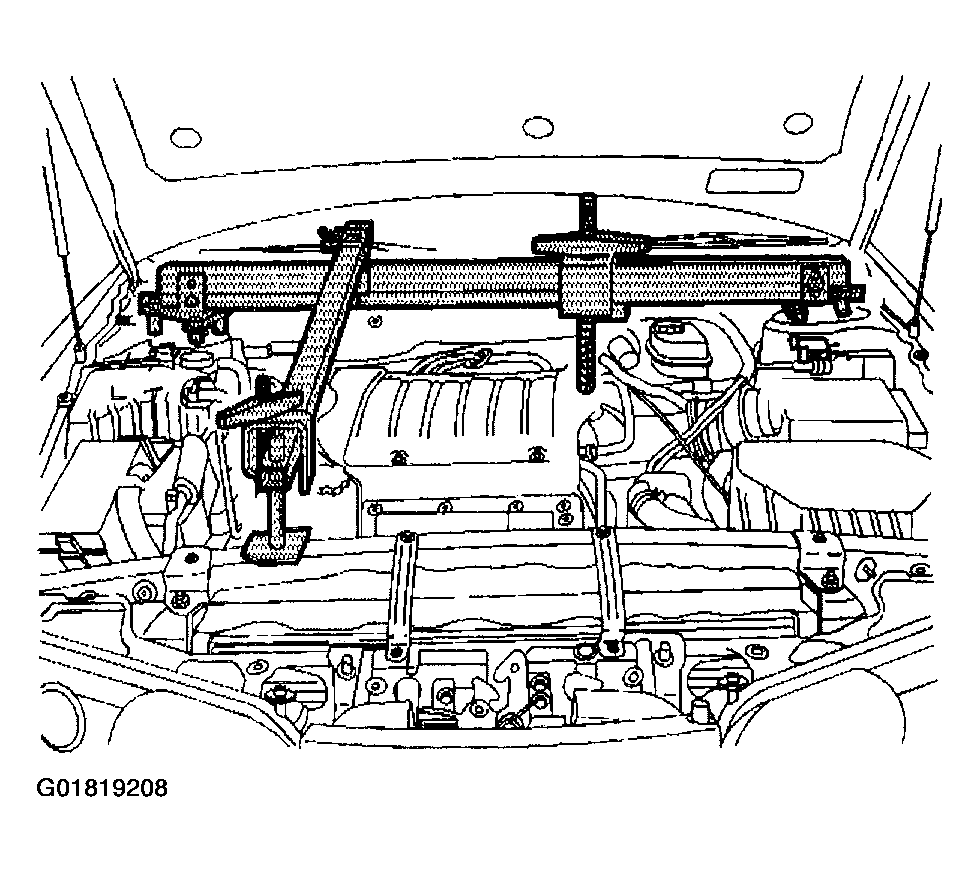

    Fig 1: Identifying Engine Support Structure
    G01819208Courtesy of GENERAL MOTORS CORP.
  5. Remove the J 42504  from the cylinder head.

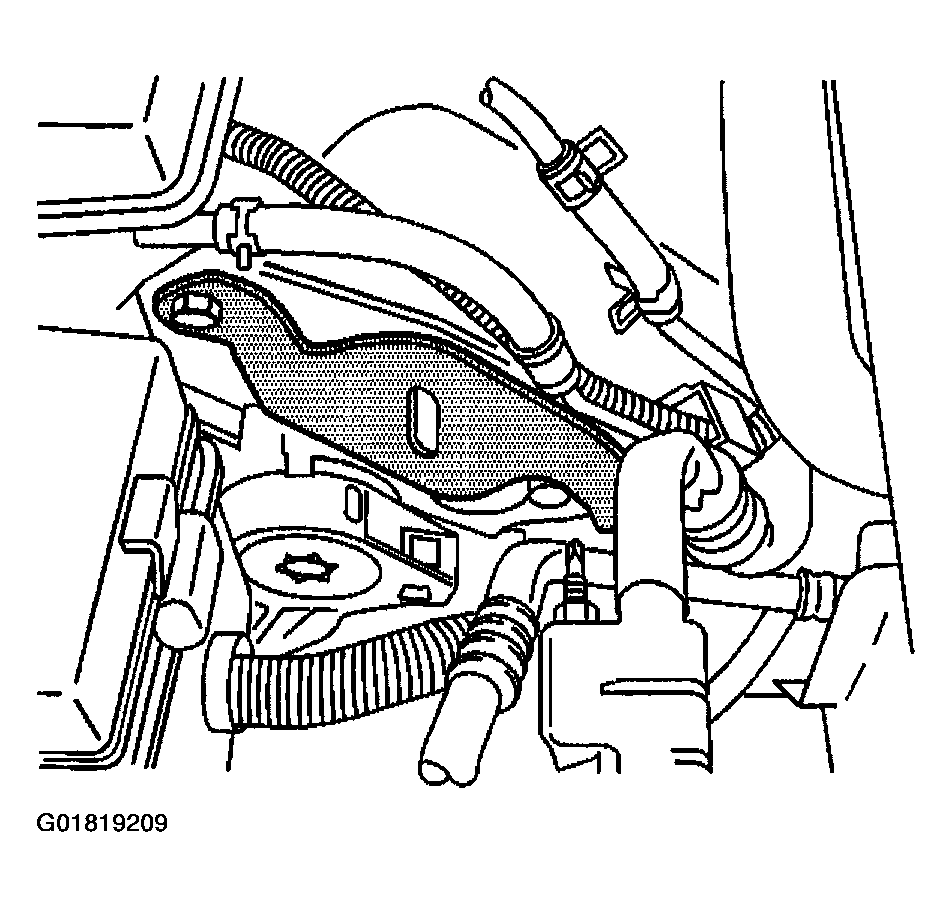

    Fig 2: Identifying J 42504
    G01819209Courtesy of GENERAL MOTORS CORP.
  6. Install the bolt bracing the power steering return hose to the cylinder head.

    Tighten

    Tighten the power steering return hose brace bolt to 50 N.m (37 ft lbs).

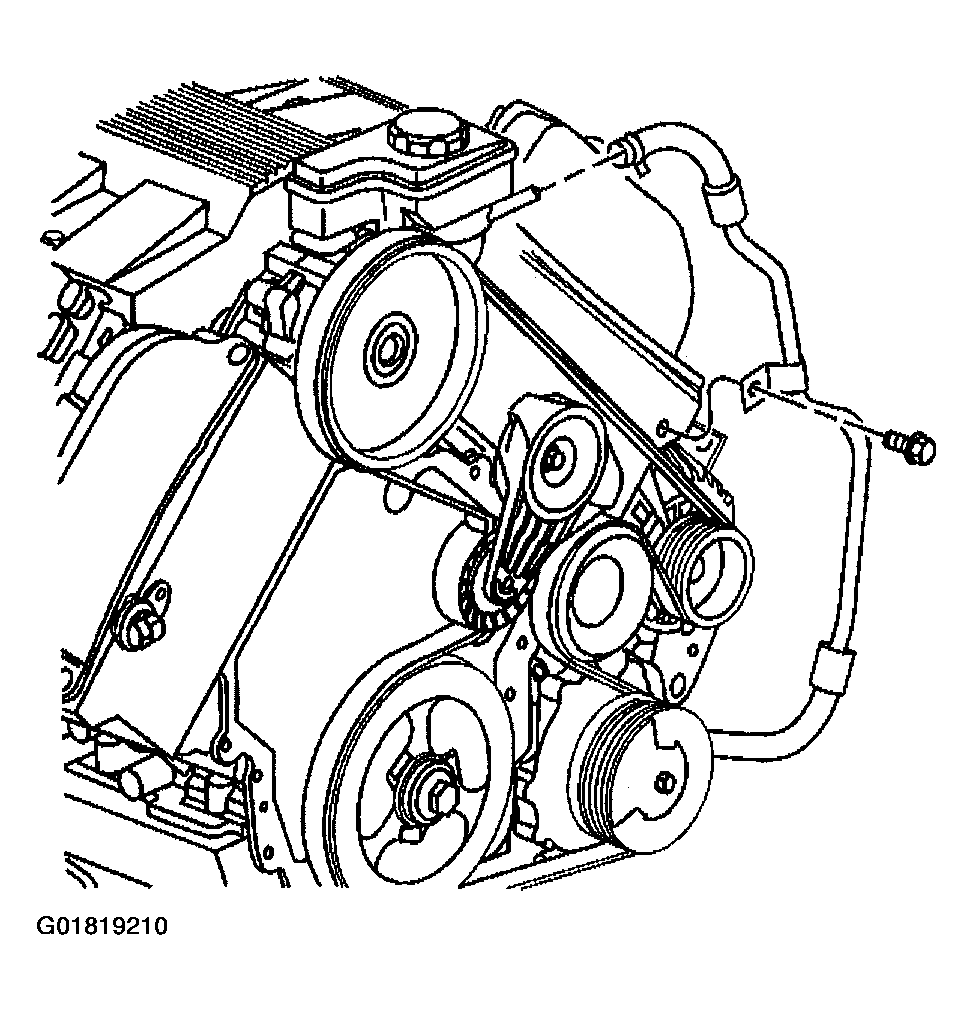

    Fig 3: Installing Power Steering Return Hose Bracing Bolt
    G01819210Courtesy of GENERAL MOTORS CORP.
