Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

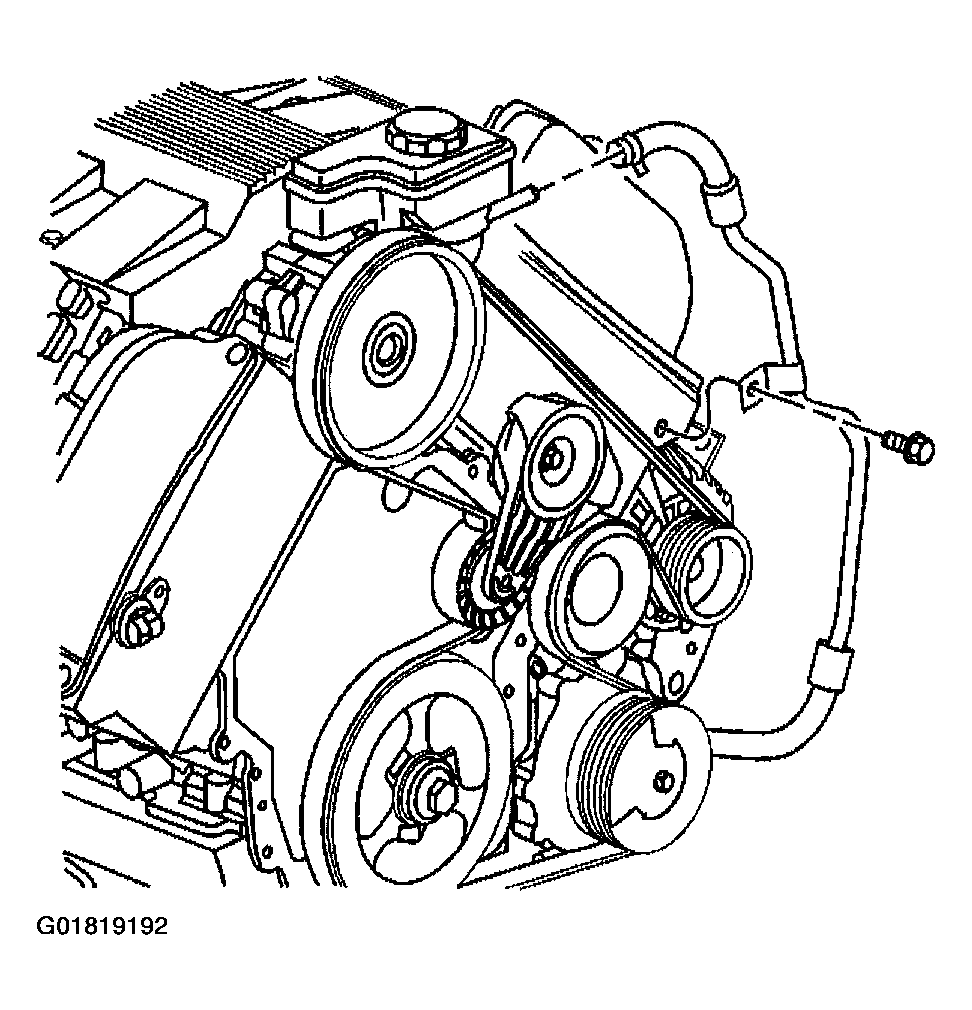

  1. Remove the bolt bracing the power steering return hose to the cylinder head.
    Fig 1: Removing Power Steering Return Hose Bracing Bolt
    G01819192Courtesy of GENERAL MOTORS CORP.
  2. Install the J 42504  to the cylinder head.

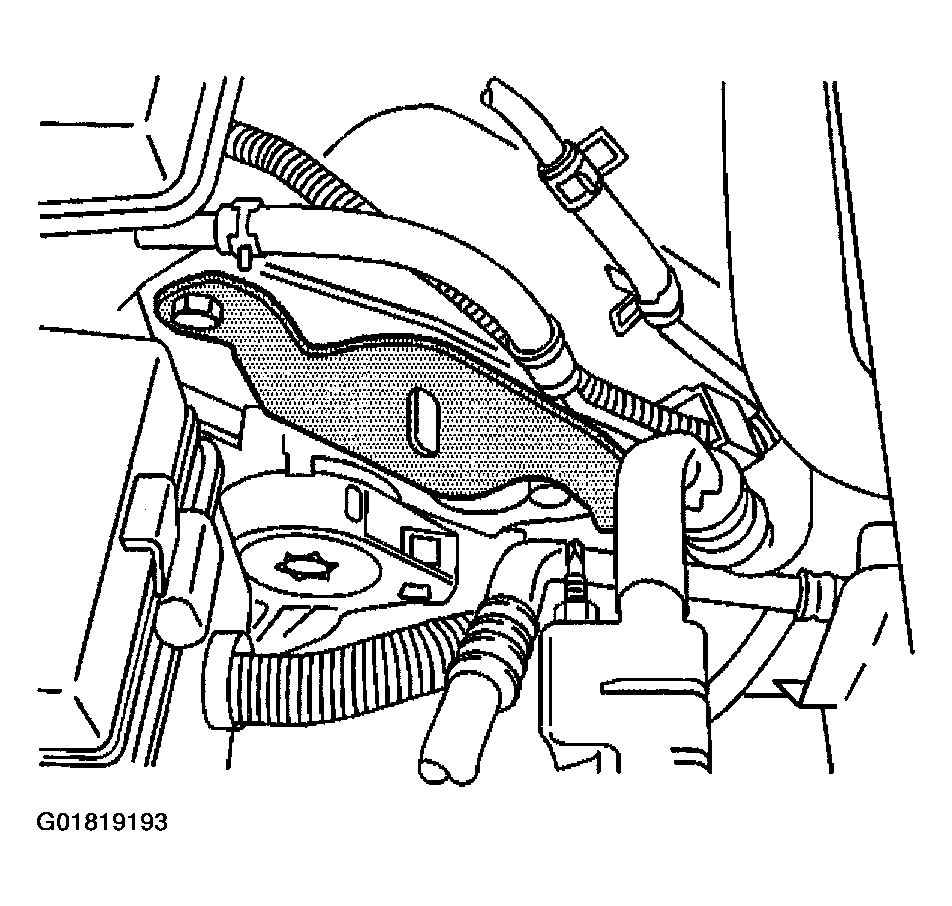

    3. Fig 2: Identifying J 42504
    G01819193Courtesy of GENERAL MOTORS CORP.
  3. Remove the air inlet grill. Refer to AIR INLET GRILLE PANEL REPLACEMENT .
  4. Remove the rearward strut bolts from the right and left strut towers.

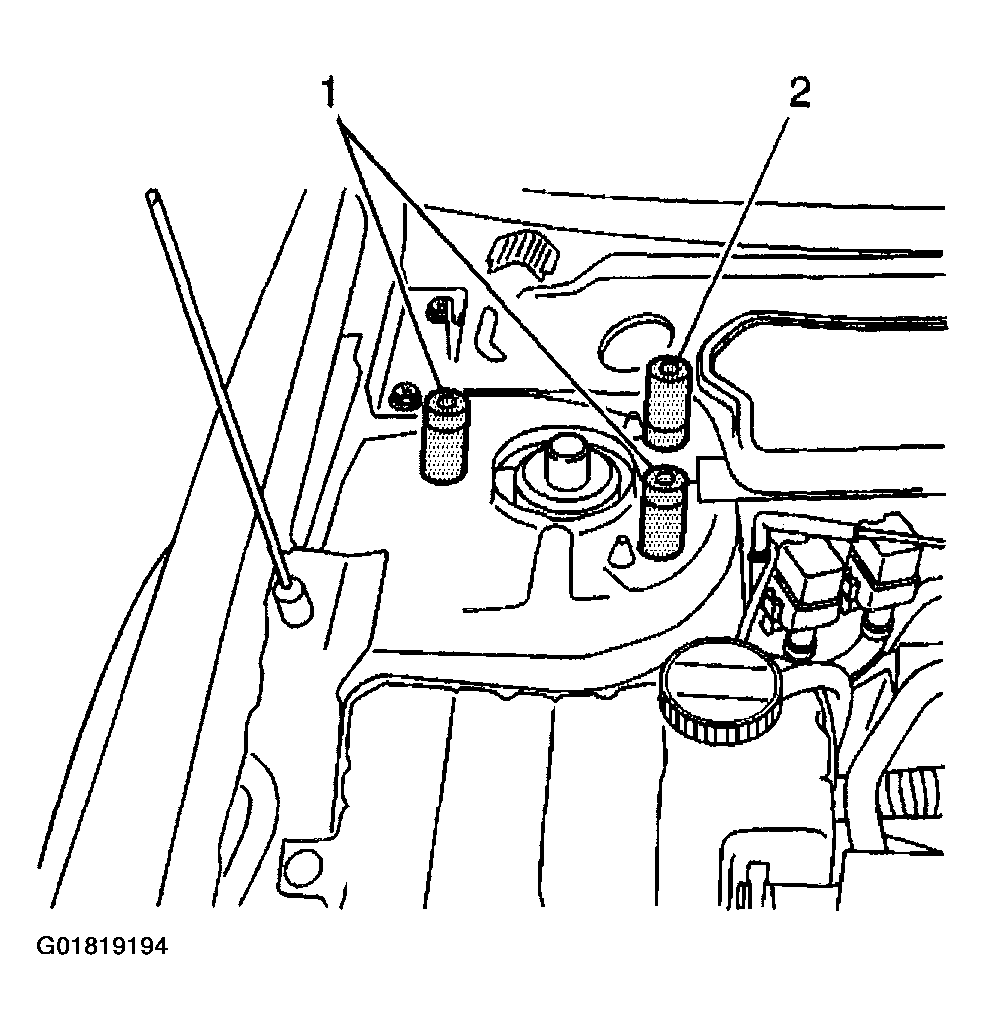

  5. Install the J 42478  (2) into the strut threads.
  6. Place the strut adapters (J 28467-33A) (1) on top of the four remaining forward strut tower bolts.
    Fig 3: Installing J 42478 Into Strut Threads
    G01819194Courtesy of GENERAL MOTORS CORP.

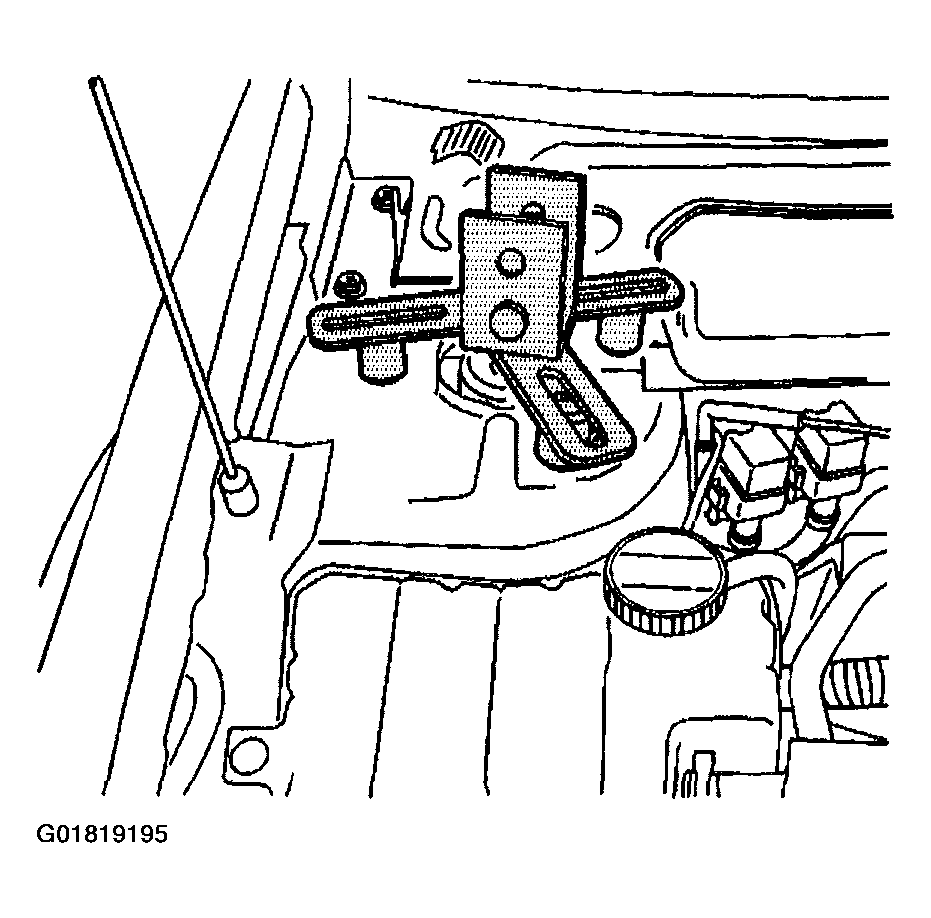

  7. Install the strut tower support assemblies (J 28467-5A) over the adapters J 42478  and (J 28467-33A).
    Fig 4: Installing Strut Tower Support Assemblies
    G01819195Courtesy of GENERAL MOTORS CORP.

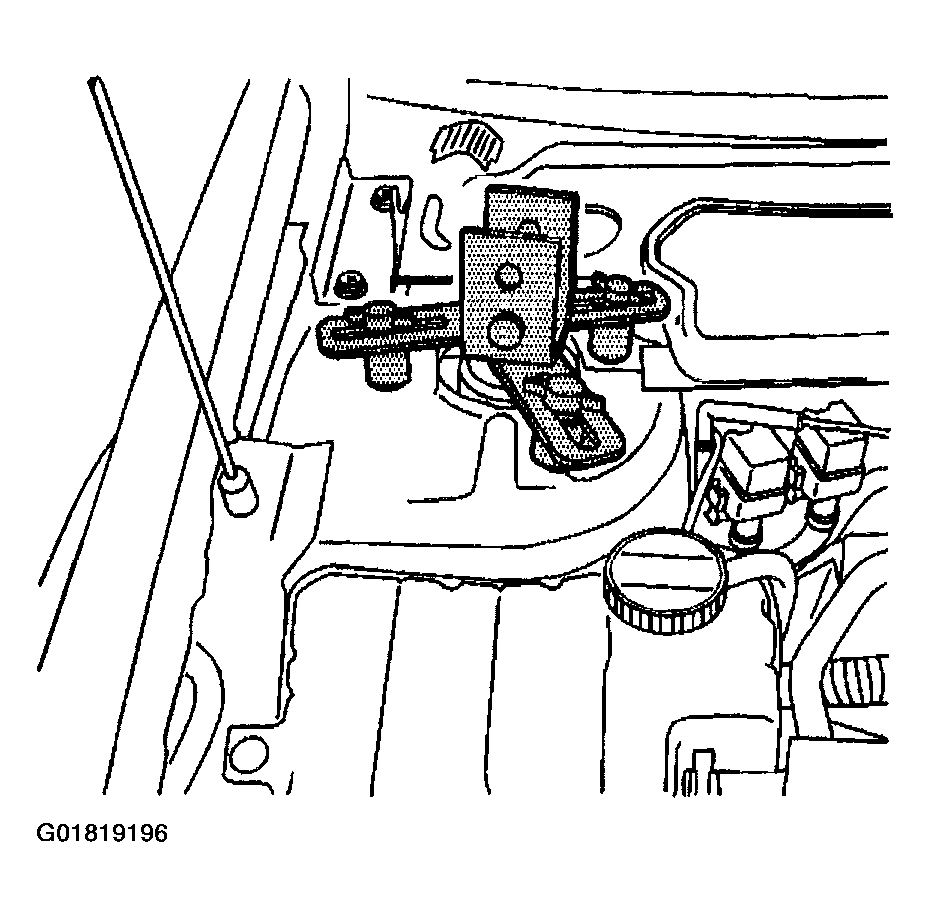

  8. Install the T-Bolts to the J 42478  and (J 28467-33A).
    Fig 5: Installing T-Bolts
    G01819196Courtesy of GENERAL MOTORS CORP.
  9. Install the strut tower tube (J 28467-3) into the strut tower support assemblies (J 28467-5A).

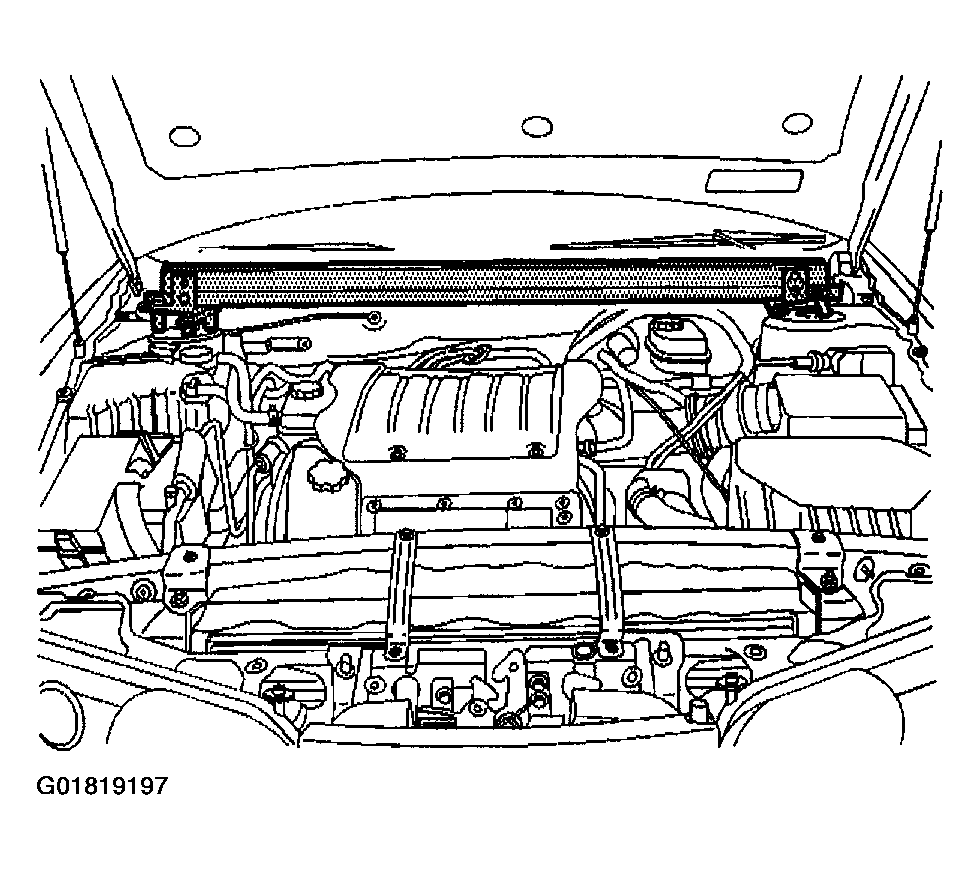

    Fig 6: Installing Strut Tower Tube
    G01819197Courtesy of GENERAL MOTORS CORP.

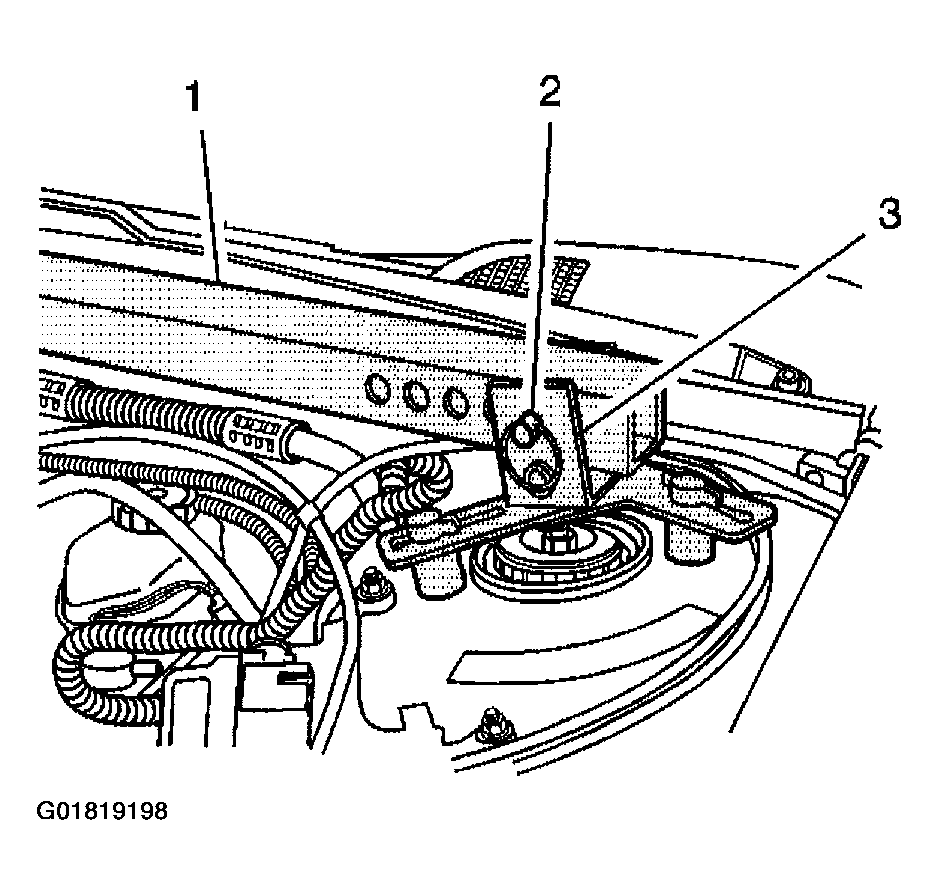

  10. Install the 1/2 in. x 2.5 in. quick release pin (J 28467-10) (2) through the strut tower support assembly (J 28467-5A) (3) and the strut tower tube (J 28467-3) (1) on one side only.
    Fig 7: Installing Quick Release Pin Through Strut Tower Support Assembly
    G01819198Courtesy of GENERAL MOTORS CORP.
  11. Install the radiator shelf tube (J 28467-2A) on top of the strut tower tube (J 28467-3) over the J 42504.

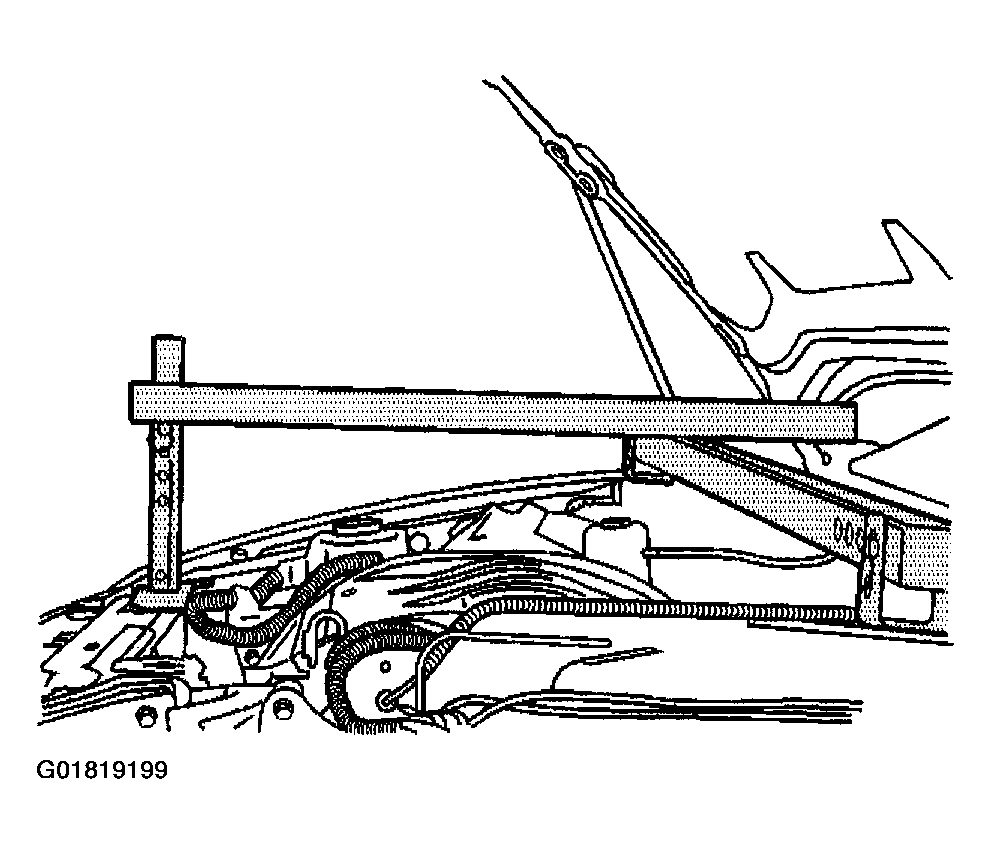

    Fig 8: Installing Radiator Shelf Tube
    G01819199Courtesy of GENERAL MOTORS CORP.
  12. Install the round tube of the front support assembly (J 28467-4A) through the large hole in the radiator shelf tube (J 28467-2A). The hole used in the radiator shelf tube (J 28467-2A) depends on the vehicle application.
  13. Place the rubber padded foot of the front support assembly (J 28467-4A) on the upper tie bar.
  14. Install the 7/16 in. x 2.0 in. quick release pin (J 28467-9) through the hole in the front support assembly (J 28467-4A) in order to level the radiator shelf tube (J 28467-2A).

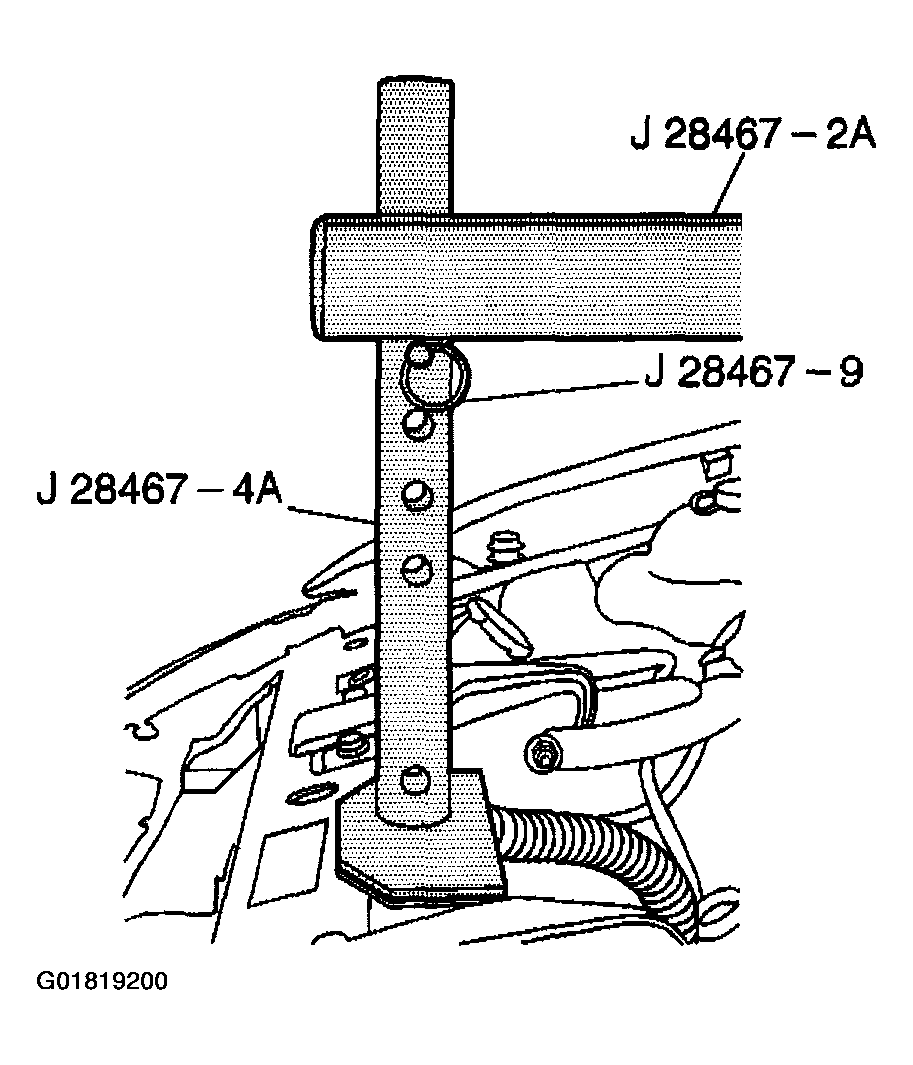

    Fig 9: Installing Front Support Assembly Round Tube Through Radiator Shelf Tube Large Hole
    G01819200Courtesy of GENERAL MOTORS CORP.
  15. Install the cross bracket assembly (J 28467-1A).
  16. Hand tighten the cross bracket assembly (J 28467-1A) wing nuts.

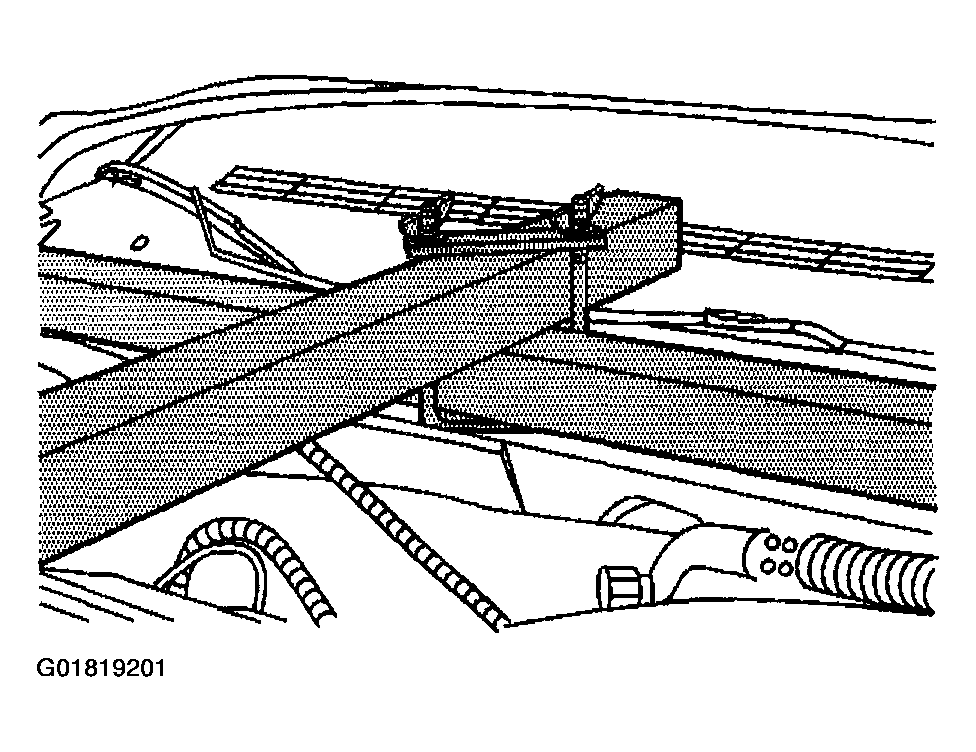

    Fig 10: Install Cross Bracket Assembly
    G01819201Courtesy of GENERAL MOTORS CORP.
  17. Install the lift hook (J 28467-7A) through the lift hook bracket (J 28467-6A).
  18. Install the 1/2 in. lift hook washer and lift hook wing nut (J 28467-34) onto the lift hook (J 28467-7A).

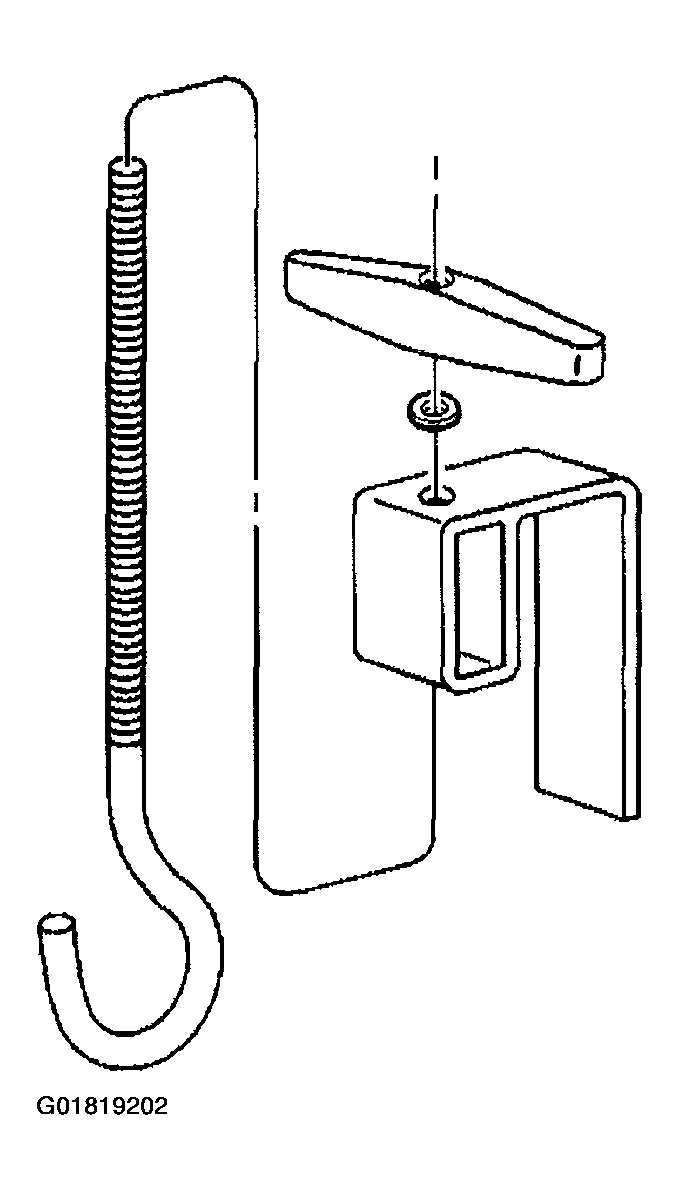

    Fig 11: Installing Lift Hook
    G01819202Courtesy of GENERAL MOTORS CORP.
  19. Install the assembled lift hook bracket (J 28467-6A) (1) over the strut tower tube (J 28467-3) (2).
  20. Adjust the assembled lift hook bracket (J 28467-6A) (1) in order to align the hook with the rear engine lift hook bracket.
    Fig 12: Installing Assembled Lift Hook Bracket
    G01819203Courtesy of GENERAL MOTORS CORP.
  21. Install the lift hook (J 28467-7A) through the rear engine lift hook bracket. Ensure the hook does not damage the surrounding components.

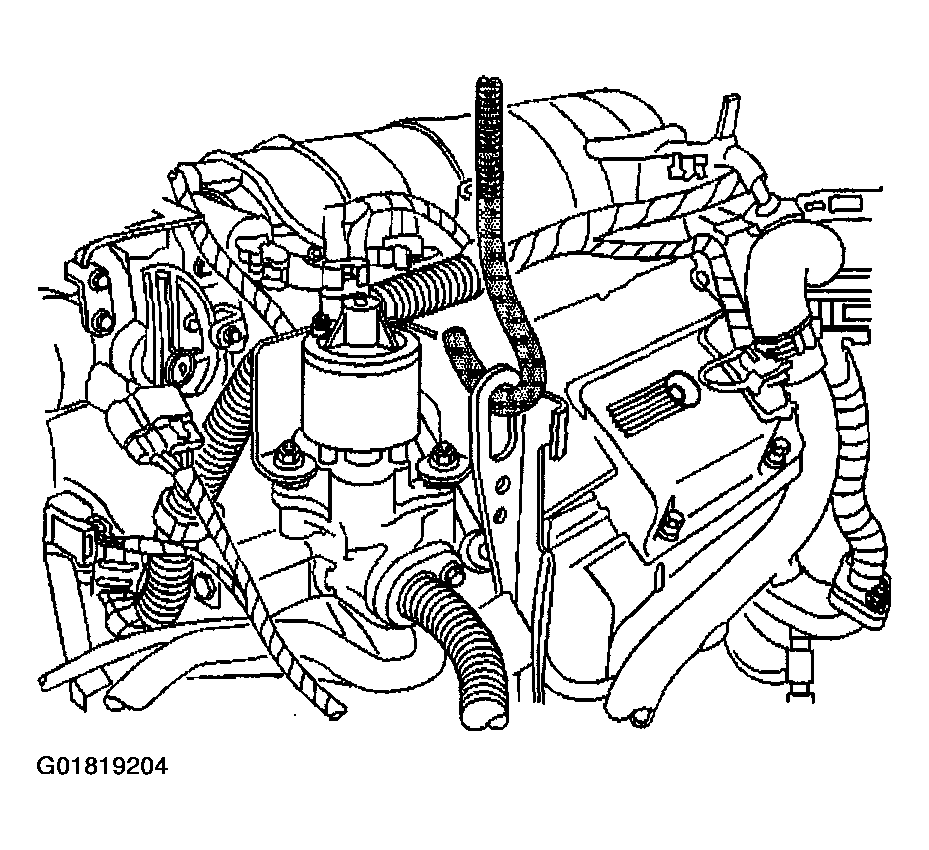

    Fig 13: Installing Lift Hook Through Rear Engine Lift Hook Bracket
    G01819204Courtesy of GENERAL MOTORS CORP.
  22. Repeat steps 17 and 18.
  23. Install the assembled lift hook bracket (J 28467-6A) (1) over the radiator shelf tube (J 28467-2A) (2).
  24. Adjust the assembled lift hook bracket (J 28467-6A) (1) in order to align the hook with the J 42504.
    Fig 14: Installing Assembled Lift Hook Bracket
    G01819205Courtesy of GENERAL MOTORS CORP.

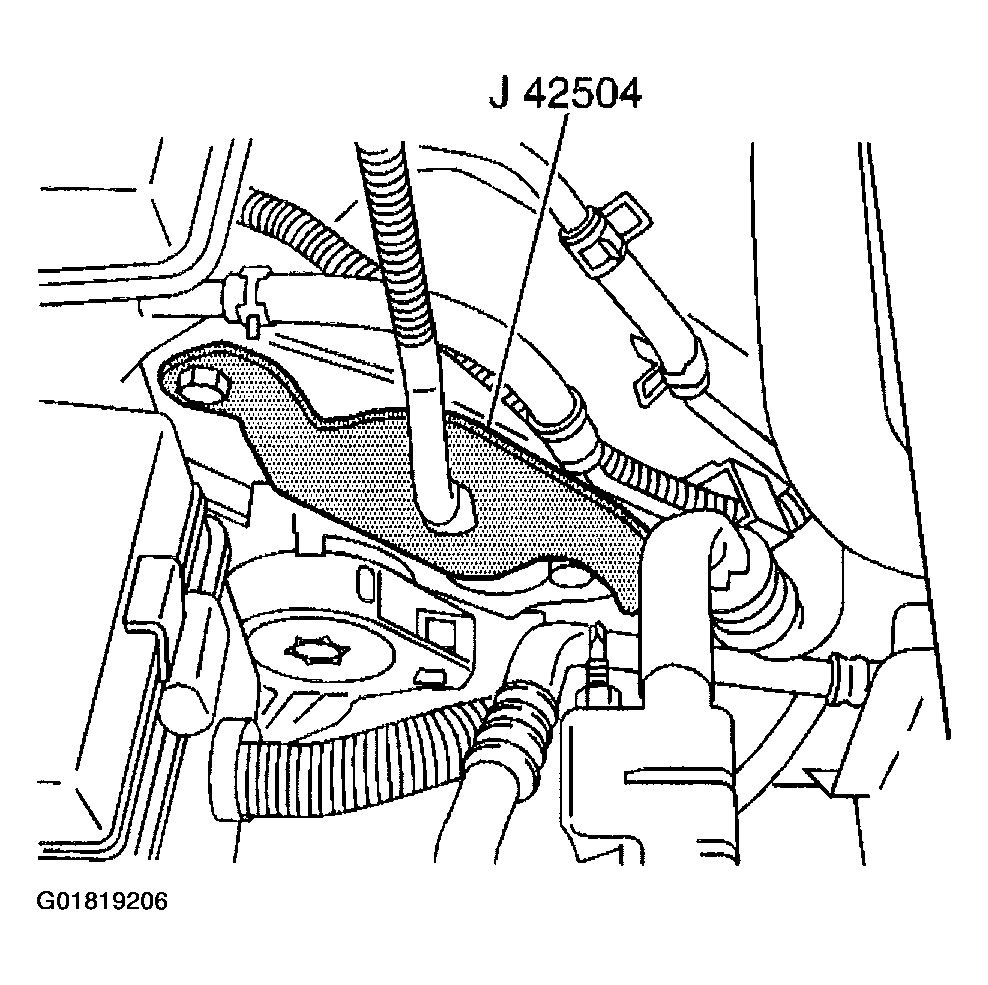

  25. Install the lift hook (J 28467-7A) through the J 42504.  Ensure the hook does not damage the surrounding components.
    Fig 15: Installing Lift Hook Through J 42504
    G01819206Courtesy of GENERAL MOTORS CORP.
  26. Hand tighten the lift hook wing nuts (J 28467-34) securely to remove all slack from the engine support fixture assembly.

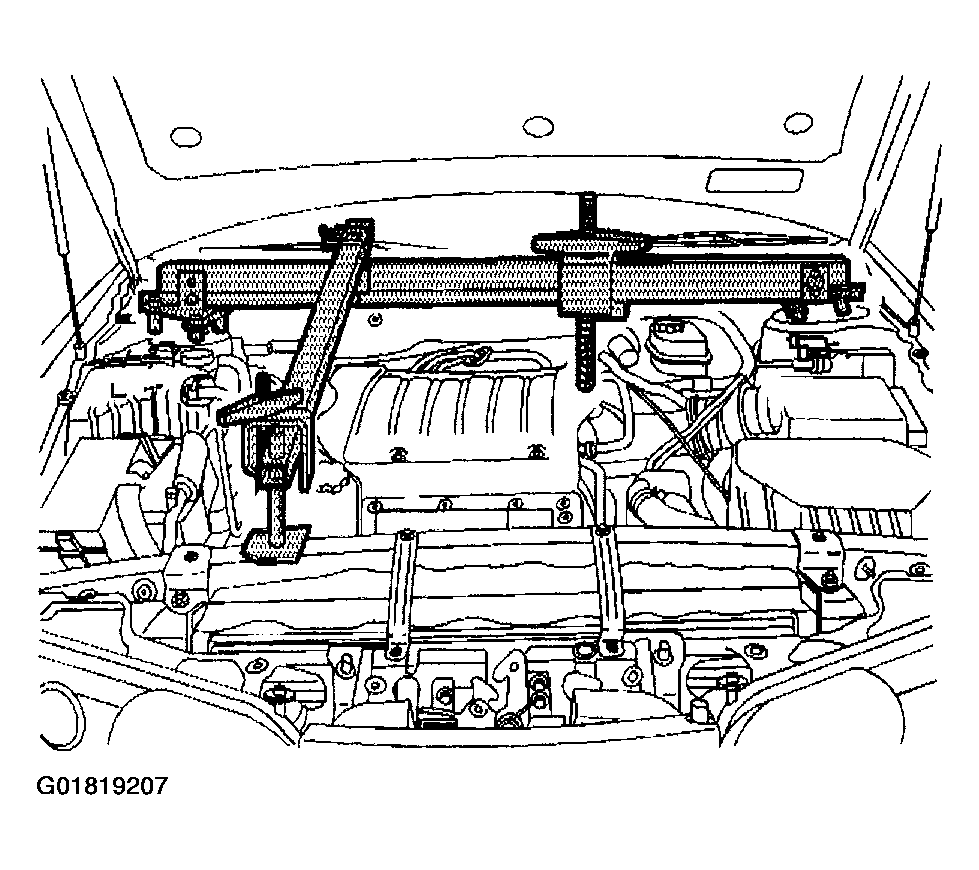

    Fig 16: Identifying Engine Support Structure
    G01819207Courtesy of GENERAL MOTORS CORP.
