Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Refer to COMPONENT FASTENER TIGHTENING NOTICE .
  1. Install the engine oil level sensor (1) into the oil pan.

    Tighten

    Tighten the engine oil level sensor to 20 N.m (15 ft lbs).

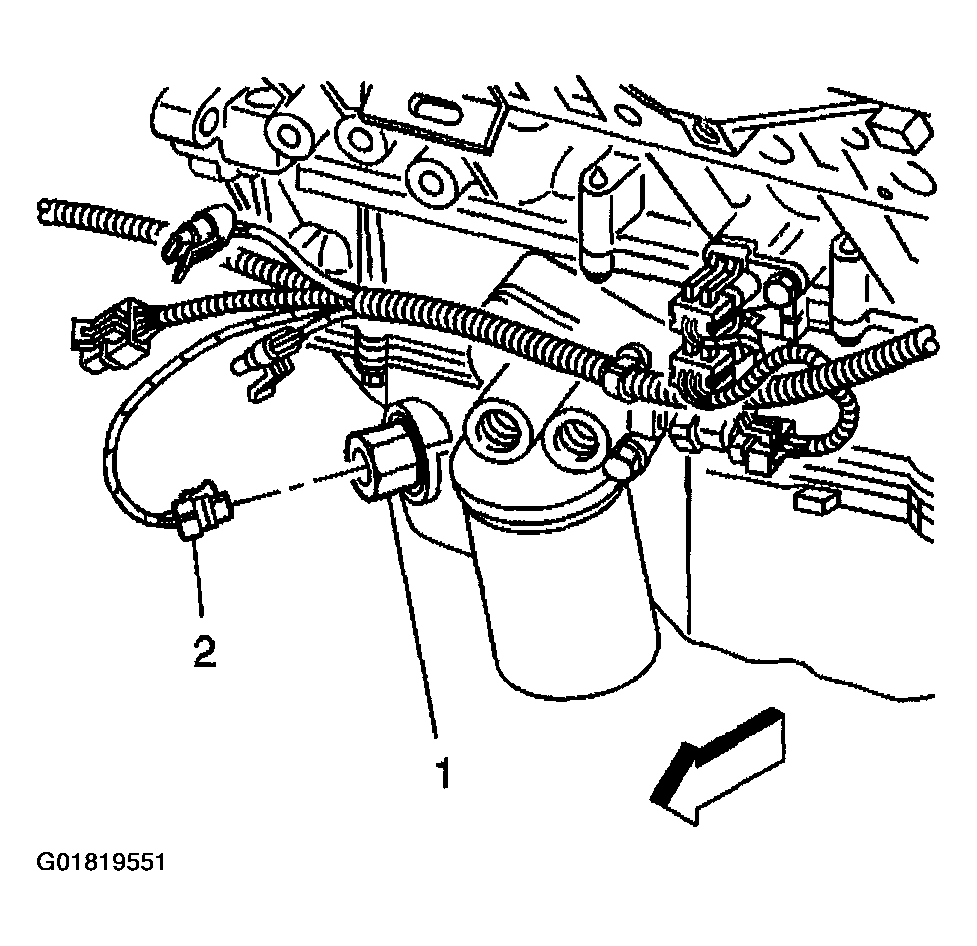

    2. Fig 1: Installing Engine Oil Level Sensor
    G01819551Courtesy of GENERAL MOTORS CORP.
  2. Connect the electrical connector (2) to the engine oil level sensor (1).
  3. Fill the engine oil. Refer to Engine Oil and Oil Filter Replacement .
  4. Inspect for oil leaks after engine start up.
