Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Insert the front engine mount stud (short) through the hole in the front engine mount bracket.

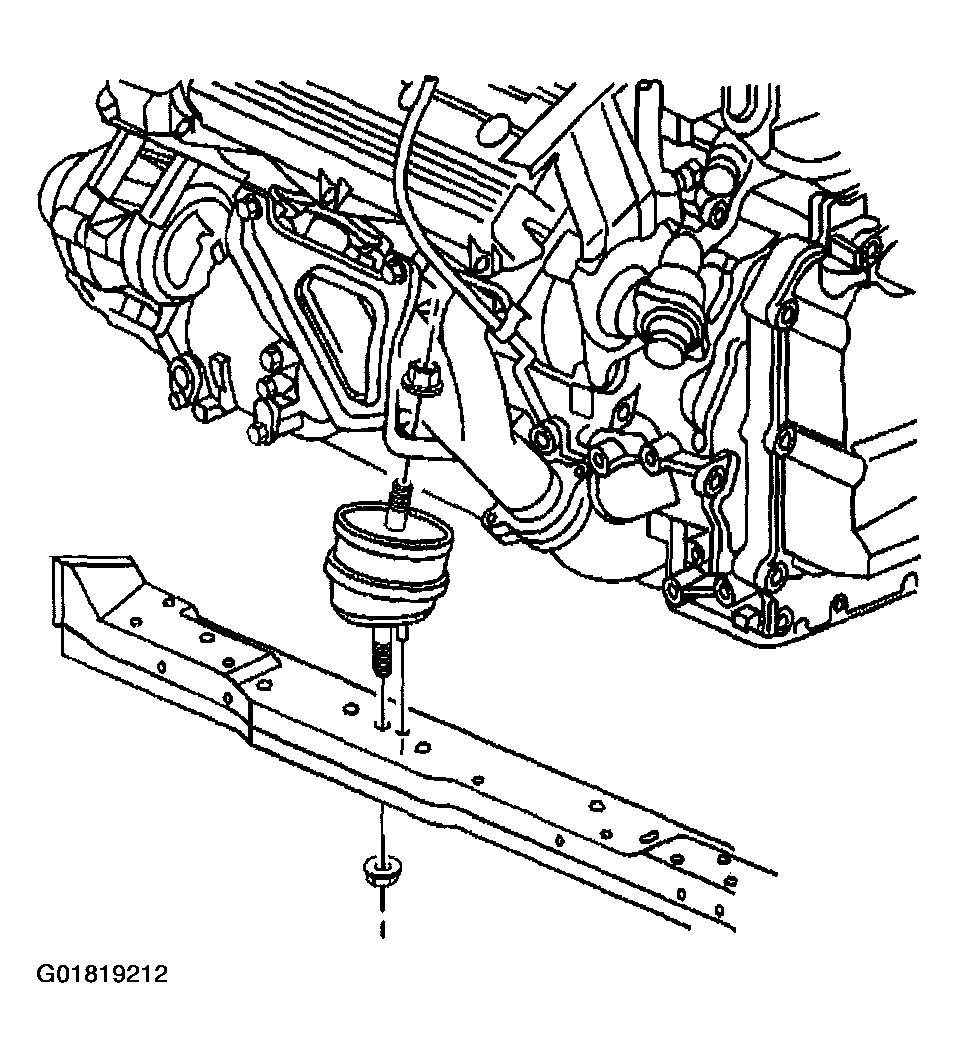

    Fig 1: Installing Front Engine Mount
    G01819212Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer toFASTENER NOTICE .
  2. Install the nut securing the front engine mount to the front engine mount bracket.

    Tighten

    Tighten the front engine mount to bracket nut to 114 N.m (84 ft lbs).

  3. Install the engine frame. Refer to FRAME REPLACEMENT in Frame and Underbody.
  4. Install the nut securing the front engine mount to the engine frame.

    Tighten

    Tighten the front engine mount nut to 70 N.m (52 ft lbs).

  5. Lower the vehicle.
