Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle.
  2. Remove the right front wheel. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION .
  3. Support the engine assembly with a suitable jack.
  4. Remove the nut securing the right engine mount to the right engine mount bracket.
  5. Lower the jack allowing the engine to lower slightly.

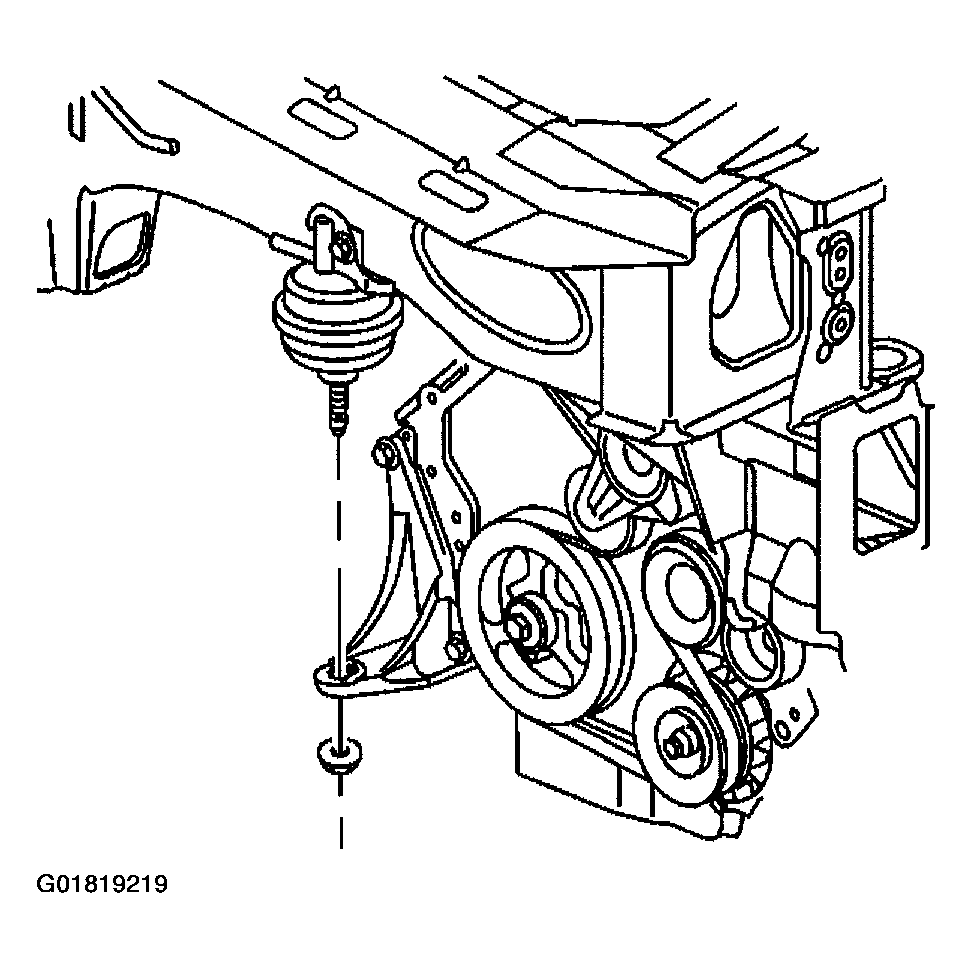

    Fig 1: Removing Engine Mount To Engine Mount Bracket Nut
    G01819219Courtesy of GENERAL MOTORS CORP.
  6. Remove the nut (2) securing the power steering hose to the right engine mount bracket (1).
  7. Remove the four bolts securing the right engine mount bracket (1) to the engine.
  8. Remove the right engine mount bracket (1).

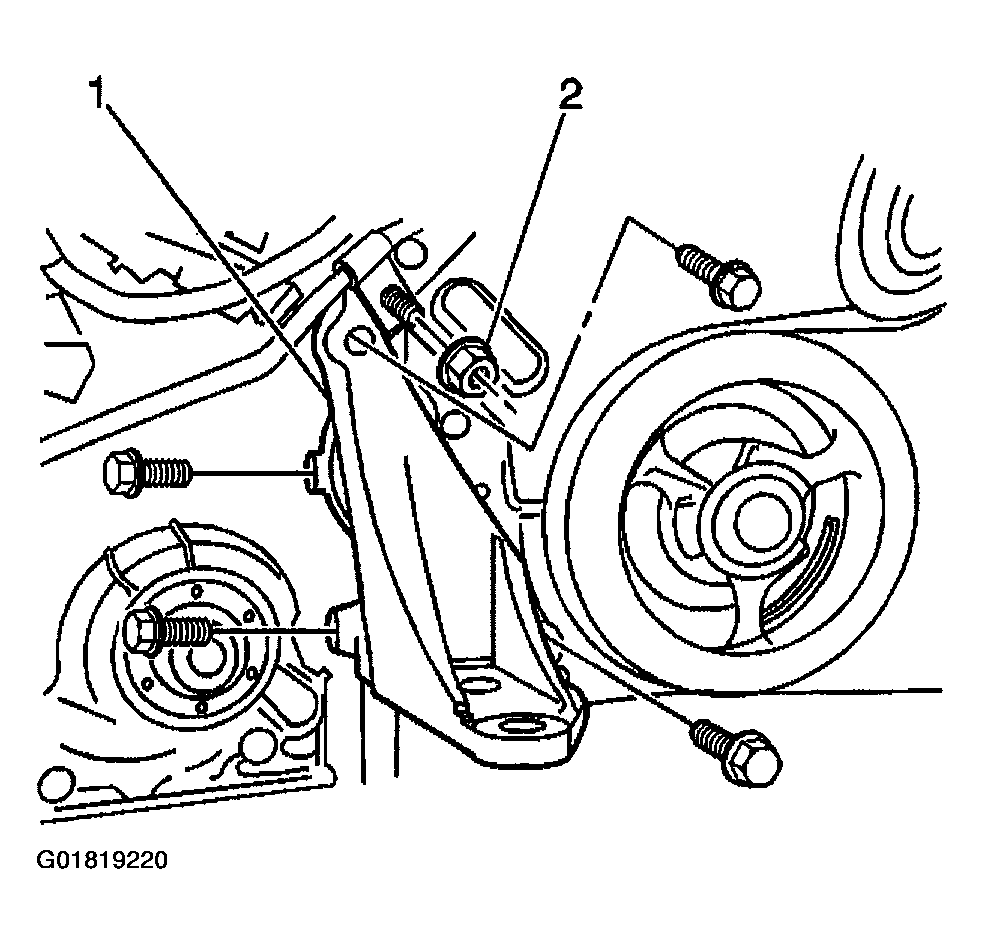

    Fig 2: Removing Right Engine Mount Bracket
    G01819220Courtesy of GENERAL MOTORS CORP.
