Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the engine lift bracket to the cylinder head.
    CAUTION: Refer toFASTENER NOTICE .
  2. Install the engine lift bracket retaining bolts.

    Tighten

    Tighten the engine lift bracket retaining bolts to 47 N.m (35 ft lbs).

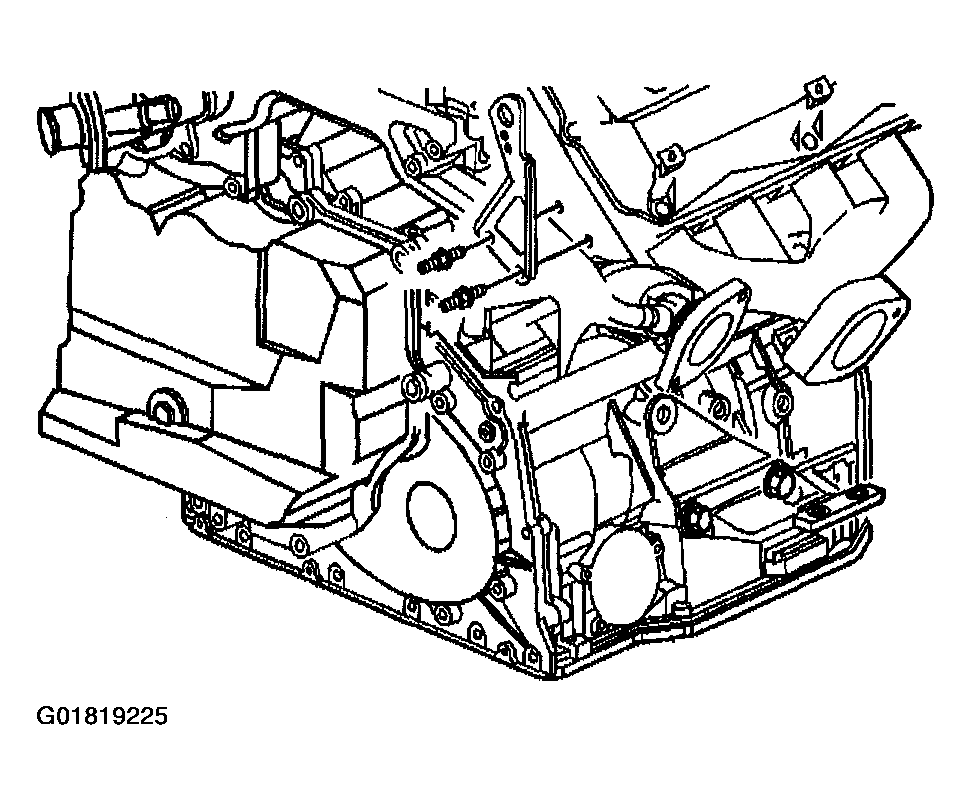

    Fig 1: Installing Engine Lift Bracket
    G01819225Courtesy of GENERAL MOTORS CORP.
  3. Position the rear transaxle brace (1) to the cylinder head.
  4. Loosely install the nuts (3) securing the rear transaxle brace (1) to the cylinder head.
  5. Raise and support the vehicle.
  6. Install the bolt (2) securing the rear transaxle brace (1) to the transaxle.

    Tighten

    Tighten the rear transaxle brace bolt to 50 N.m (37 ft lbs).

  7. Lower the vehicle.
  8. Tighten the nuts (3) securing the rear transaxle brace (1) to the cylinder head.

    Tighten

    Tighten the rear transaxle brace nuts to 50 N.m (37 ft lbs).

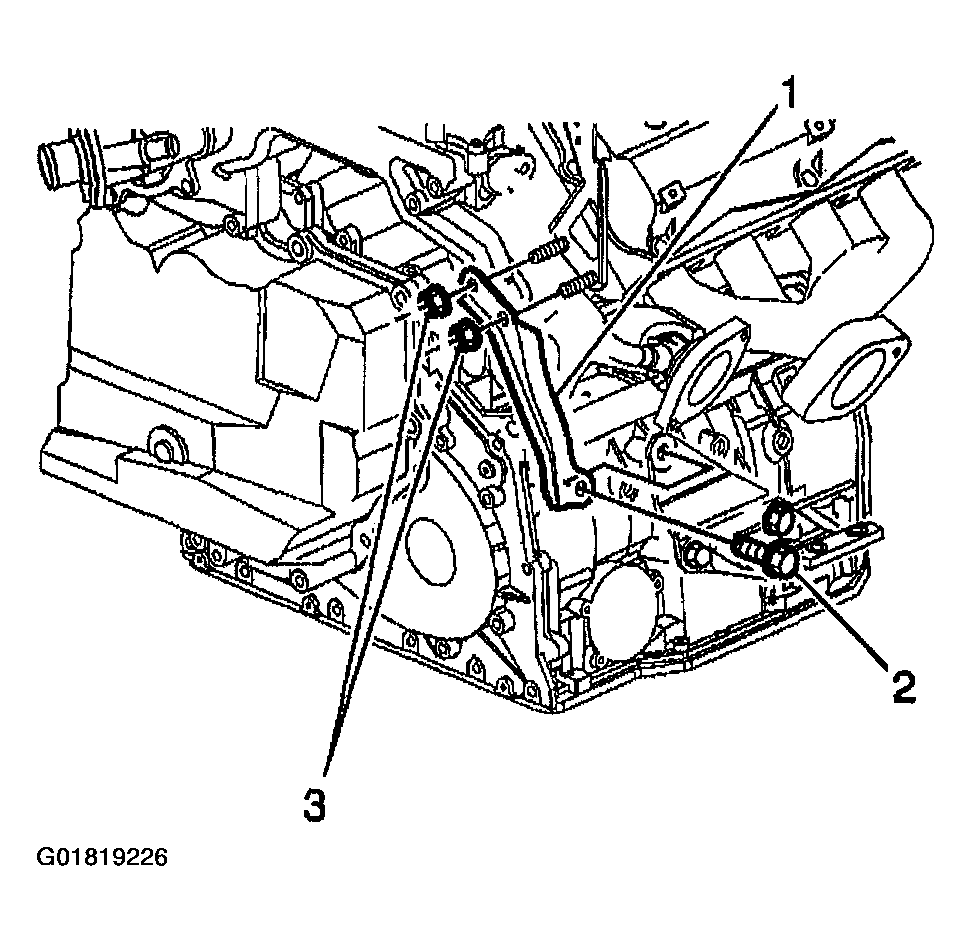

    Fig 2: Installing Rear Transaxle Brace
    G01819226Courtesy of GENERAL MOTORS CORP.
