Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the drive belt tensioner. Refer to Drive Belt Tensioner Replacement .
  2. Remove the drive belt idler pulley
  3. Remove the drive belt idler pulley
  4. Remove the crankshaft balancer. Refer to Crankshaft Balancer Replacement .
  5. Remove the right engine mount bracket. Refer to Engine Mount Bracket Replacement - Right .

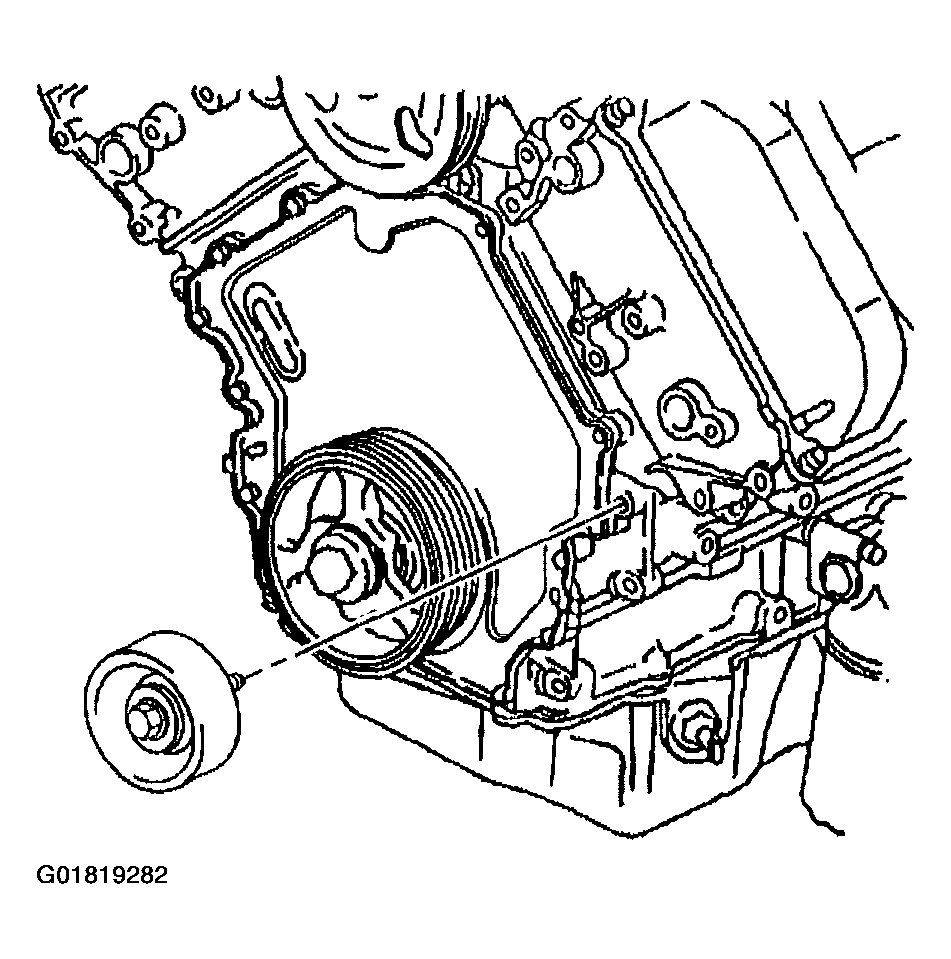

    Fig 1: Removing Drive Belt Idler Pulley
    G01819282Courtesy of GENERAL MOTORS CORP.
  6. Remove the engine front cover bolts.
  7. Remove the engine front cover and gasket. The gasket is reusable. Do not discard unless it is damaged.

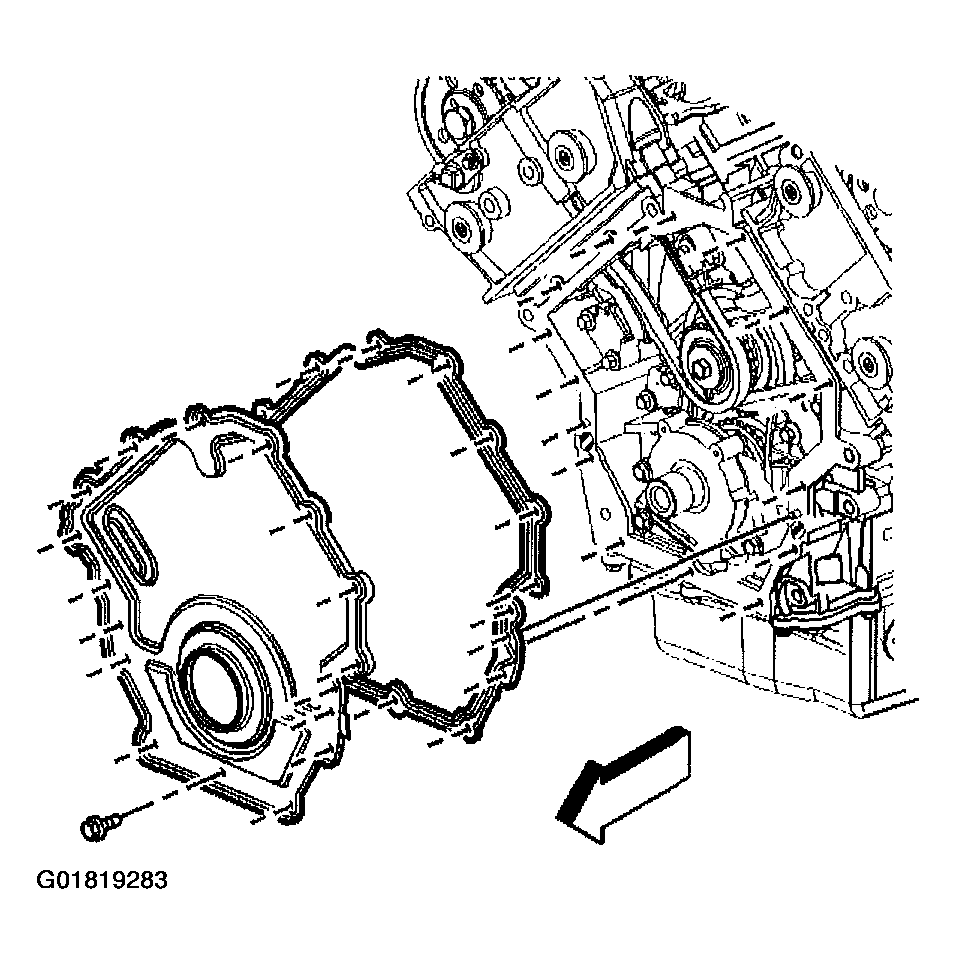

    Fig 2: Removing Engine Front Cover & Gasket
    G01819283Courtesy of GENERAL MOTORS CORP.
