Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the flywheel and the reinforcement to the crankshaft.

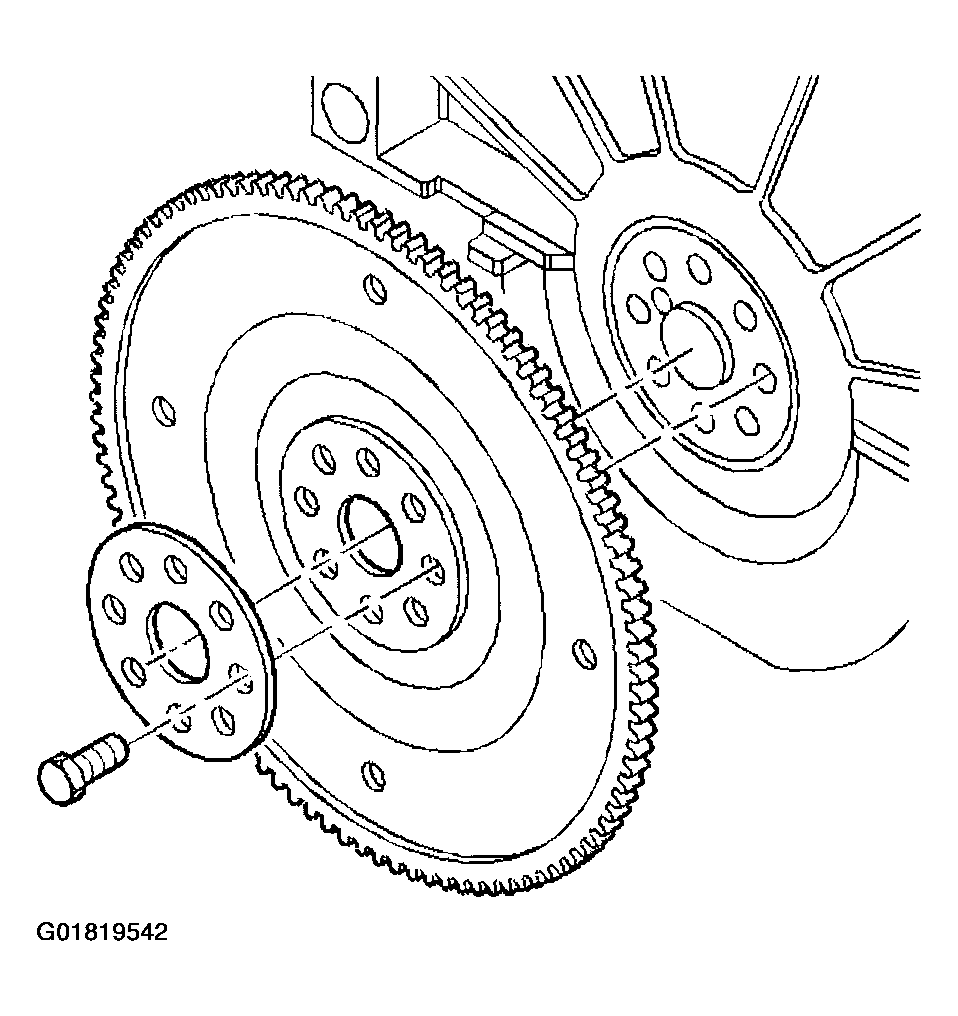

    2. Fig 1: Installing Flywheel
    G01819542Courtesy of GENERAL MOTORS CORP.
  2. Apply sealant, GM P/N 12346004 or equivalent, to the flywheel mounting bolts.
    CAUTION: Refer toFASTENER NOTICE .
  3. Install the eight NEW mounting bolts.
    1. 3.1. First Pass

      Tighten

      Tighten the flywheel mounting bolts to 15 N.m (11 ft lbs).

    2. 3.2. Final Pass

      Tighten the flywheel mounting bolts an additional 50 degrees using the J 36660-A  .

  4. Install the transaxle assembly. Refer to TRANSAXLE (4T80-E) .
