Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the drive belt tensioner (1).
    CAUTION: Refer toFASTENER NOTICE .

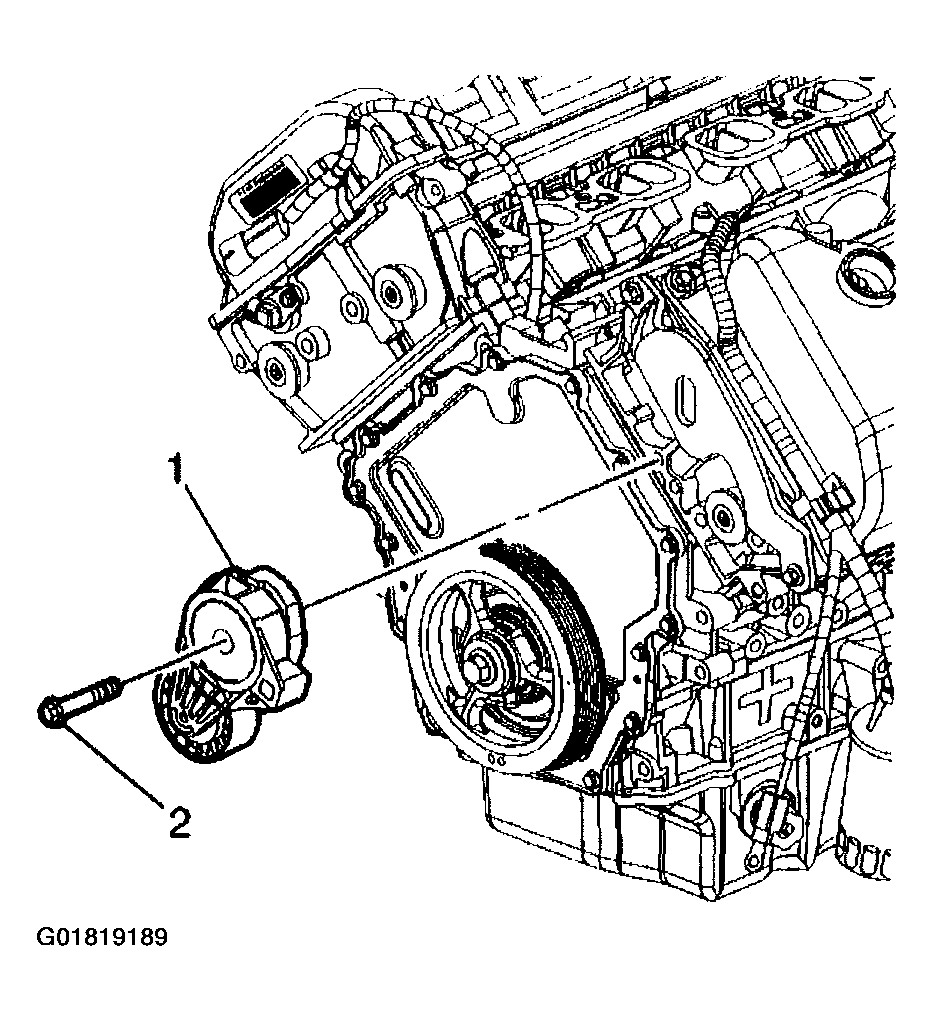

    2. Fig 1: Installing Drive Belt Tensioner & Bolt
    G01819189Courtesy of GENERAL MOTORS CORP.
  2. Install the drive belt tensioner bolt (2).

    Tighten

    Tighten the drive belt tensioner bolt to 50 N.m (37 ft lbs).

  3. Install the drive belt. Refer to Drive Belt Replacement .
