Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the drive belt idler pulley.
    CAUTION: Refer toFASTENER NOTICE .

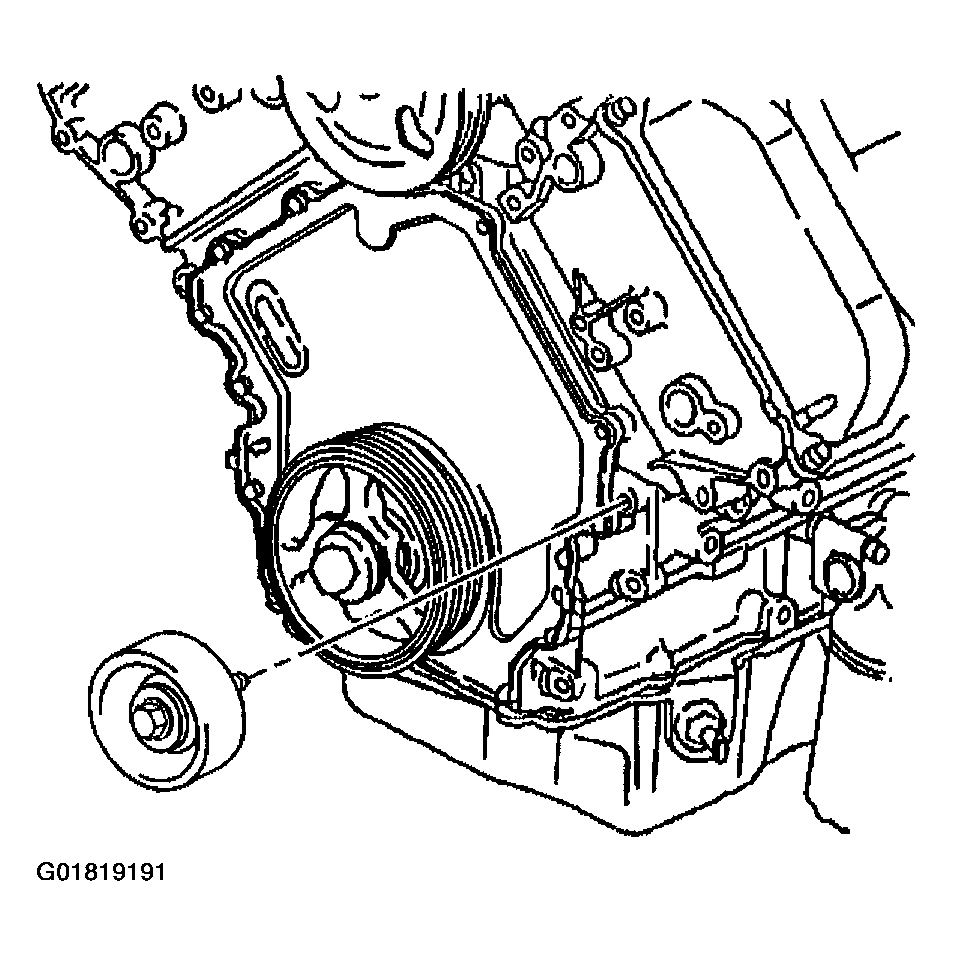

    2. Fig 1: Installing Drive Belt Pulley & Bolt
    G01819191Courtesy of GENERAL MOTORS CORP.
  2. Install the drive belt idler pulley bolt.

    Tighten

    Tighten the drive belt idler pulley bolt to 50 N.m (37 ft lbs).

  3. Install the drive belt. Refer to Drive Belt Replacement .
