Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

Remove the flywheel. Refer to Engine Flywheel Replacement .
Place the J 42841 on to the crankshaft.
Install the J 42841 retaining bolts.

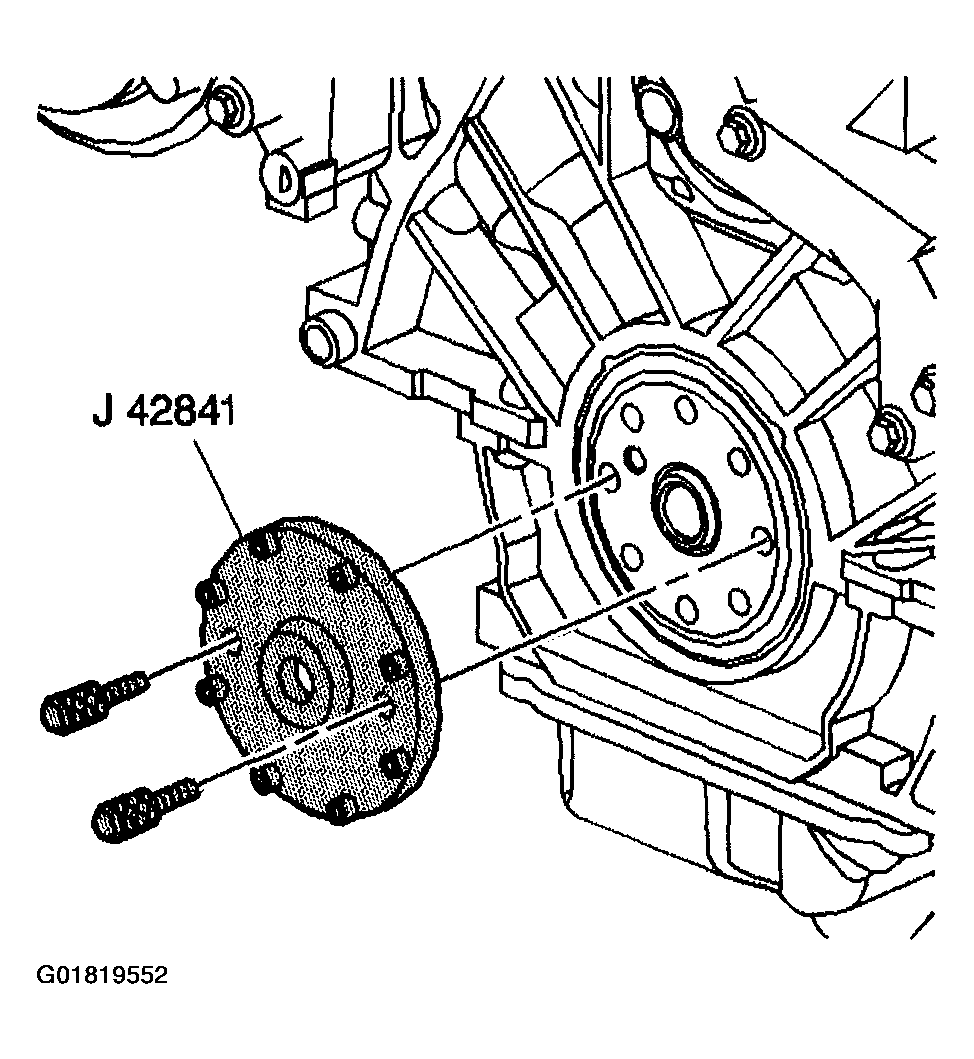

Fig 1: Installing J 42841
Courtesy of GENERAL MOTORS CORP.
Using a drill motor (variable speed preferred) with a socket adapter, install eight one-inch self-drilling screws into the seal using the guide holes in the removal tool. When drilling, make sure you reduce the drill speed when the screw begins threading into the seal.

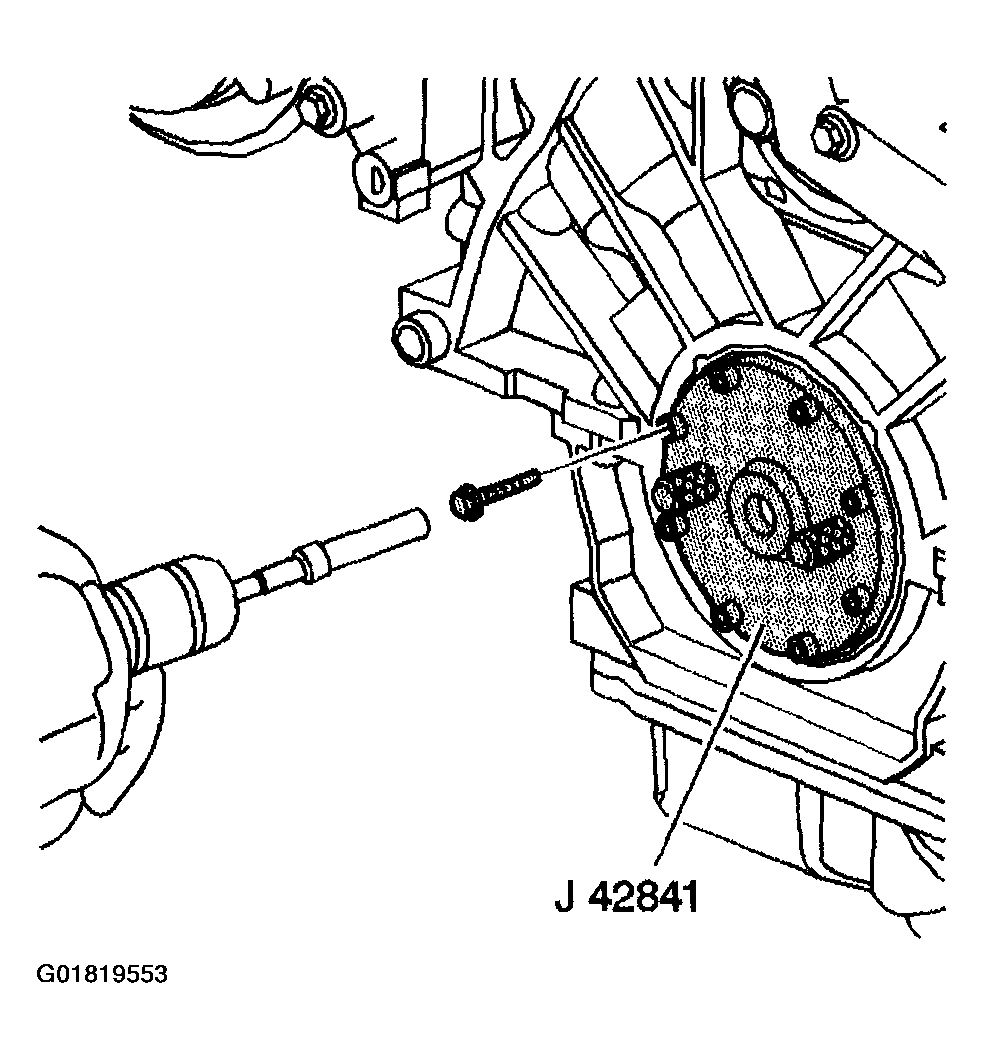

Fig 2: Installing Screws Into Seal
Courtesy of GENERAL MOTORS CORP.
With all eight removal screws installed, remove the J 42841 retaining bolts.

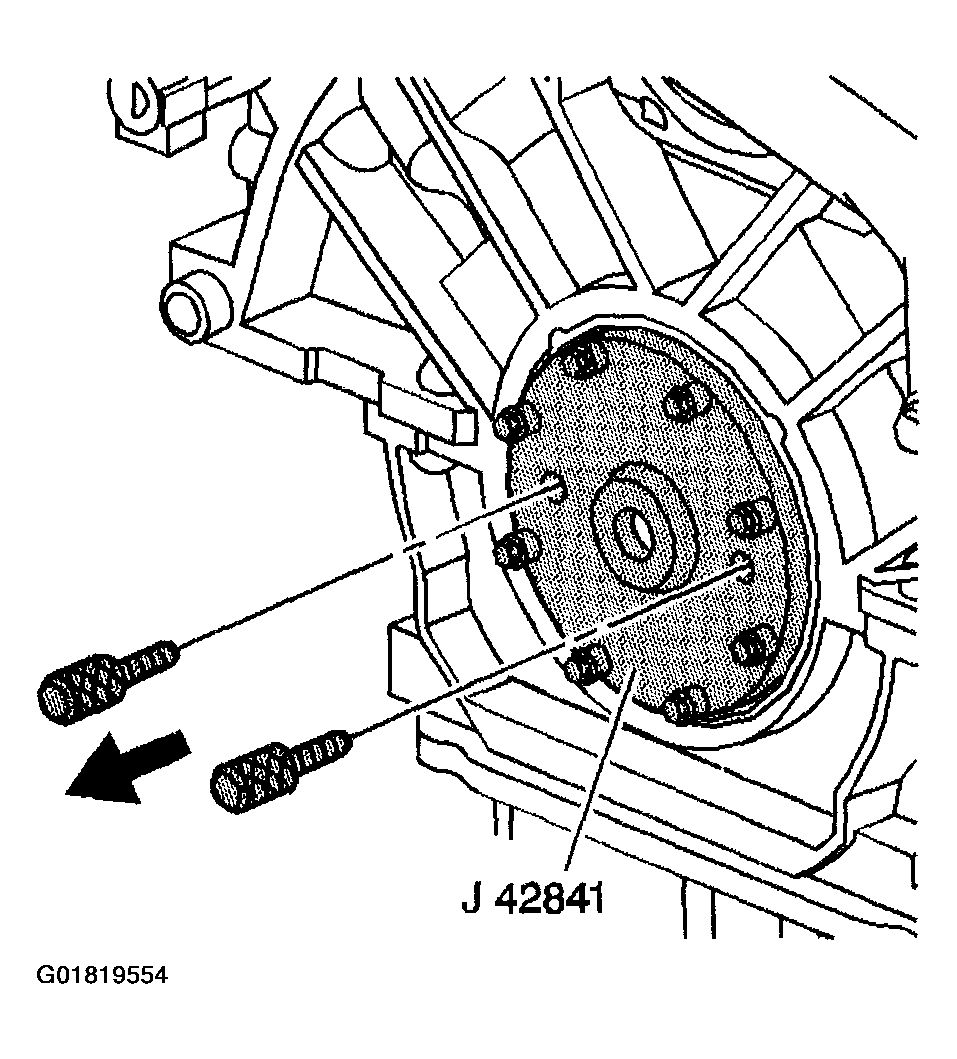

Fig 3: Removing J 42841 Retaining Bolts
Courtesy of GENERAL MOTORS CORP.
Install the center screw to the J 42841.

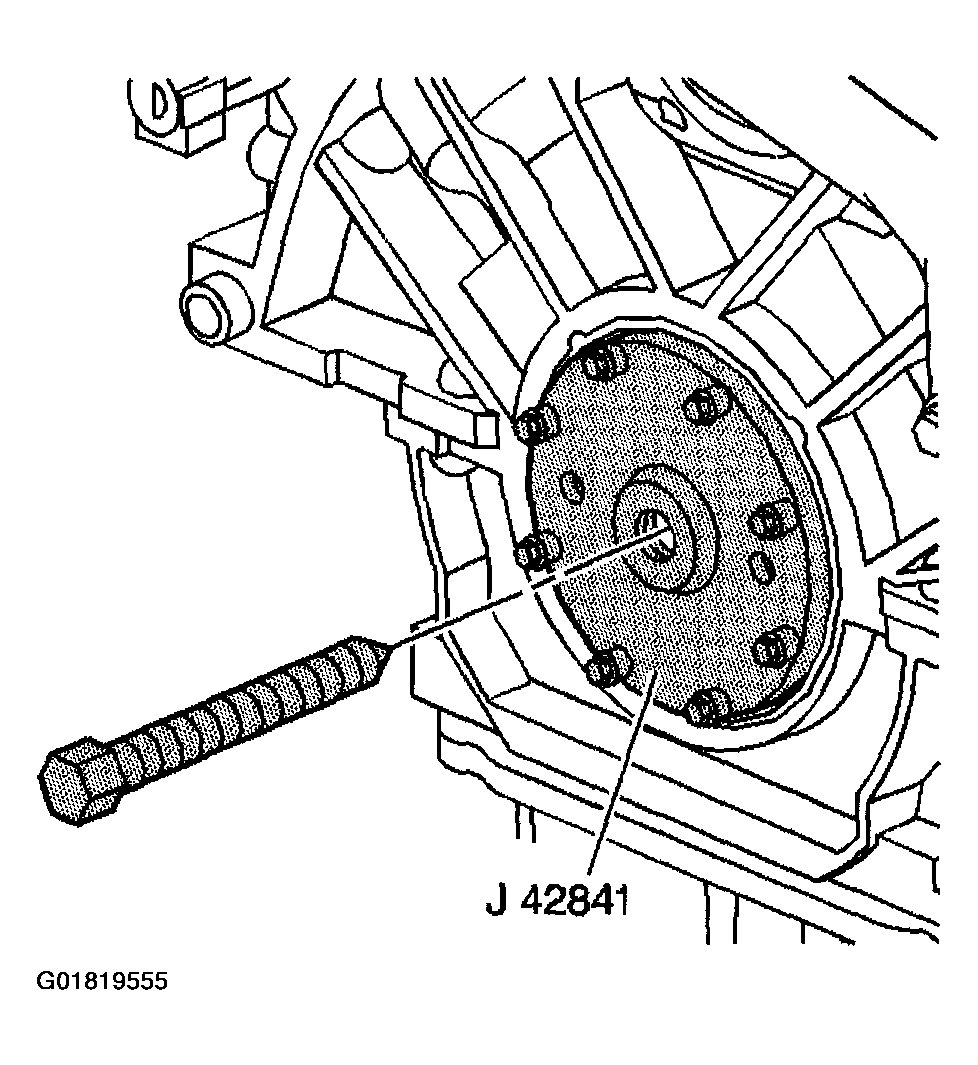

Fig 4: Installing J 42841 Center Screw
Courtesy of GENERAL MOTORS CORP.
Tighten the center screw on the J 42841 to pull the seal assembly off the end of the crankshaft.

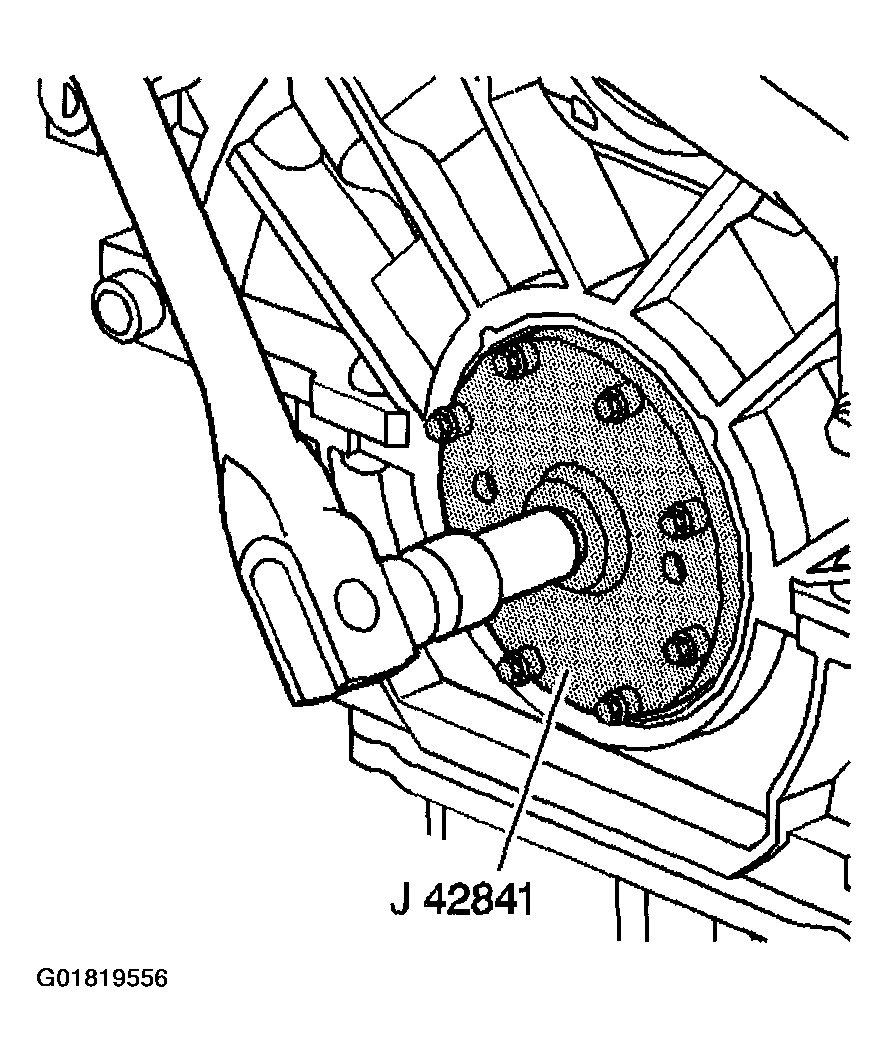

Fig 5: Removing Crankshaft Rear Oil Seal
Courtesy of GENERAL MOTORS CORP.
