Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the camshaft intermediate drive shaft (1) to the engine, aligning the bolt holes.
    CAUTION: Refer toFASTENER NOTICE .
  2. Install the camshaft intermediate drive shaft retaining bolts.

    Tighten

    Tighten the camshaft intermediate drive shaft retaining bolts to 10 N.m (89 in lbs).

  3. Install the camshaft intermediate drive shaft sprocket. Refer to Primary Camshaft Drive Chain and Sprockets Replacement .

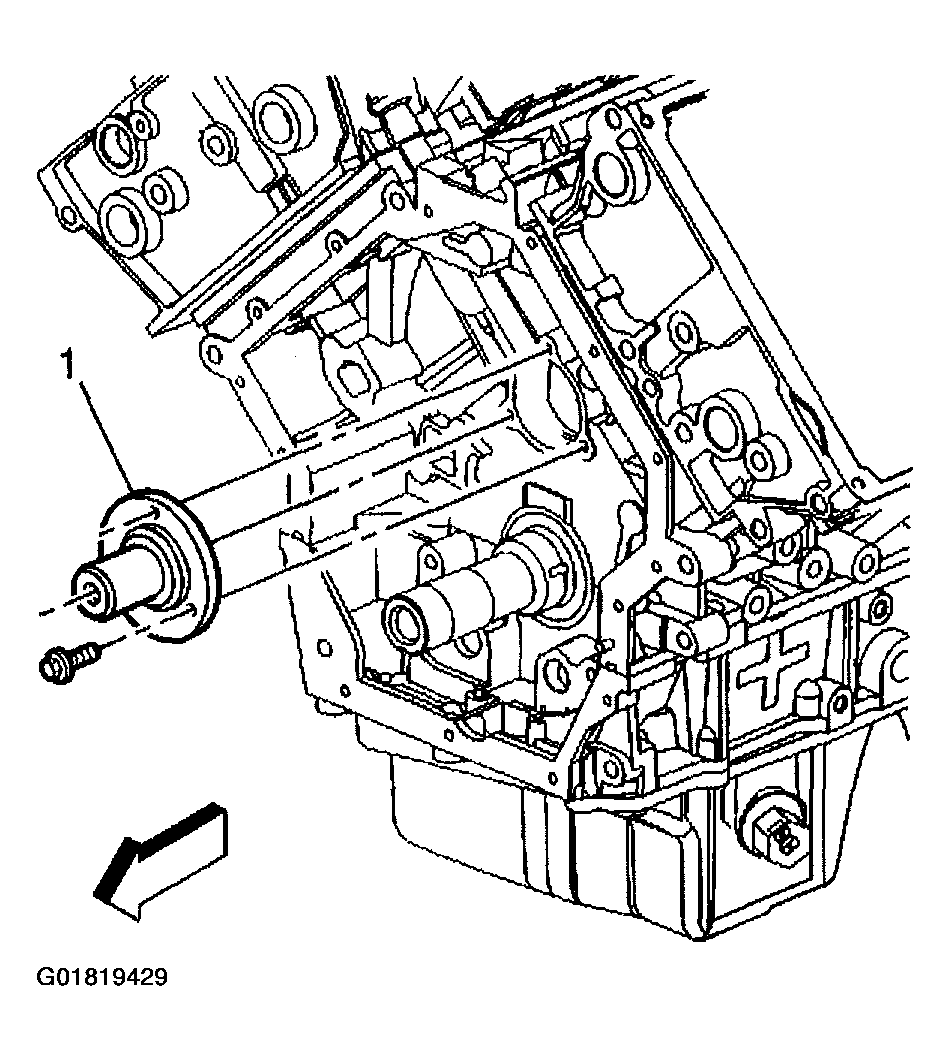

    Fig 1: Installing Camshaft Intermediate Drive Shaft
    G01819429Courtesy of GENERAL MOTORS CORP.
