Removal (3.4L)

WARNING: This page is about a different car, the 2003 Pontiac Grand Am and 2003 Oldsmobile Alero. However, it is still accessible from the selected car via links, so may be relevant.

Manifold Absolute Pressure (MAP) sensor is located on top left side of engine next to ignition coils. See Figure . Turn ignition switch to OFF position.
Remove the screws that attach the MAP sensor to the bracket. See Fig 1 .
Disconnect the MAP sensor harness connector.
Disconnect the MAP inlet vacuum hose.
Remove the MAP sensor from the bracket.

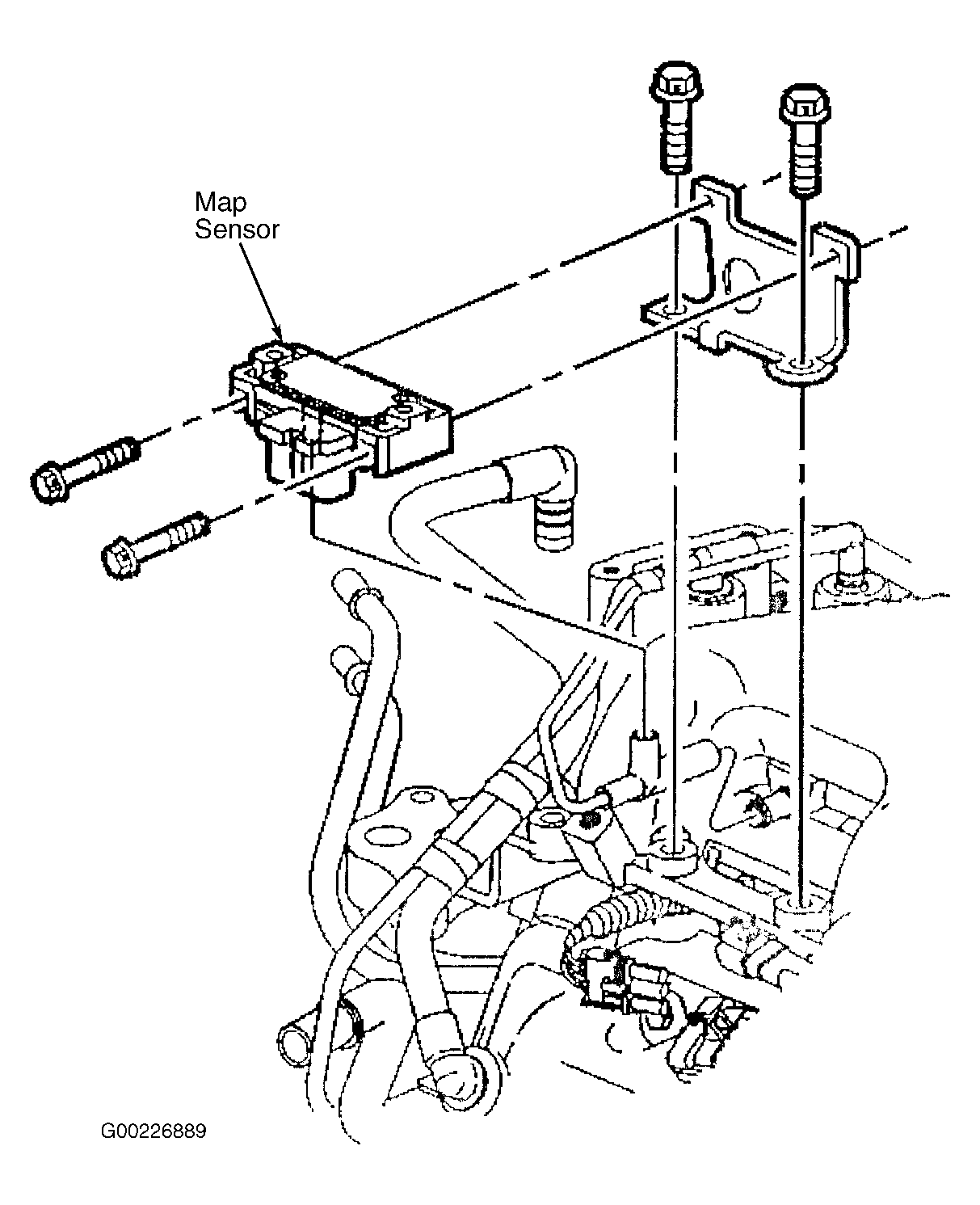

Fig 1: Removing/Installing MAP Sensor (3.4L)

Courtesy of GENERAL MOTORS CORP.
