Removal (3.4L)

WARNING: This page is about a different car, the 2003 Pontiac Grand Am and 2003 Oldsmobile Alero. However, it is still accessible from the selected car via links, so may be relevant.

Knock Sensor (KS) is located on the middle of the left side of the engine above the oil filter. See Fig 1 . Turn ignition switch to OFF position.
Raise and support vehicle.
Disconnect the wiring harness connector from the knock sensor.
Remove the knock sensor from the engine block. See Fig 2 .

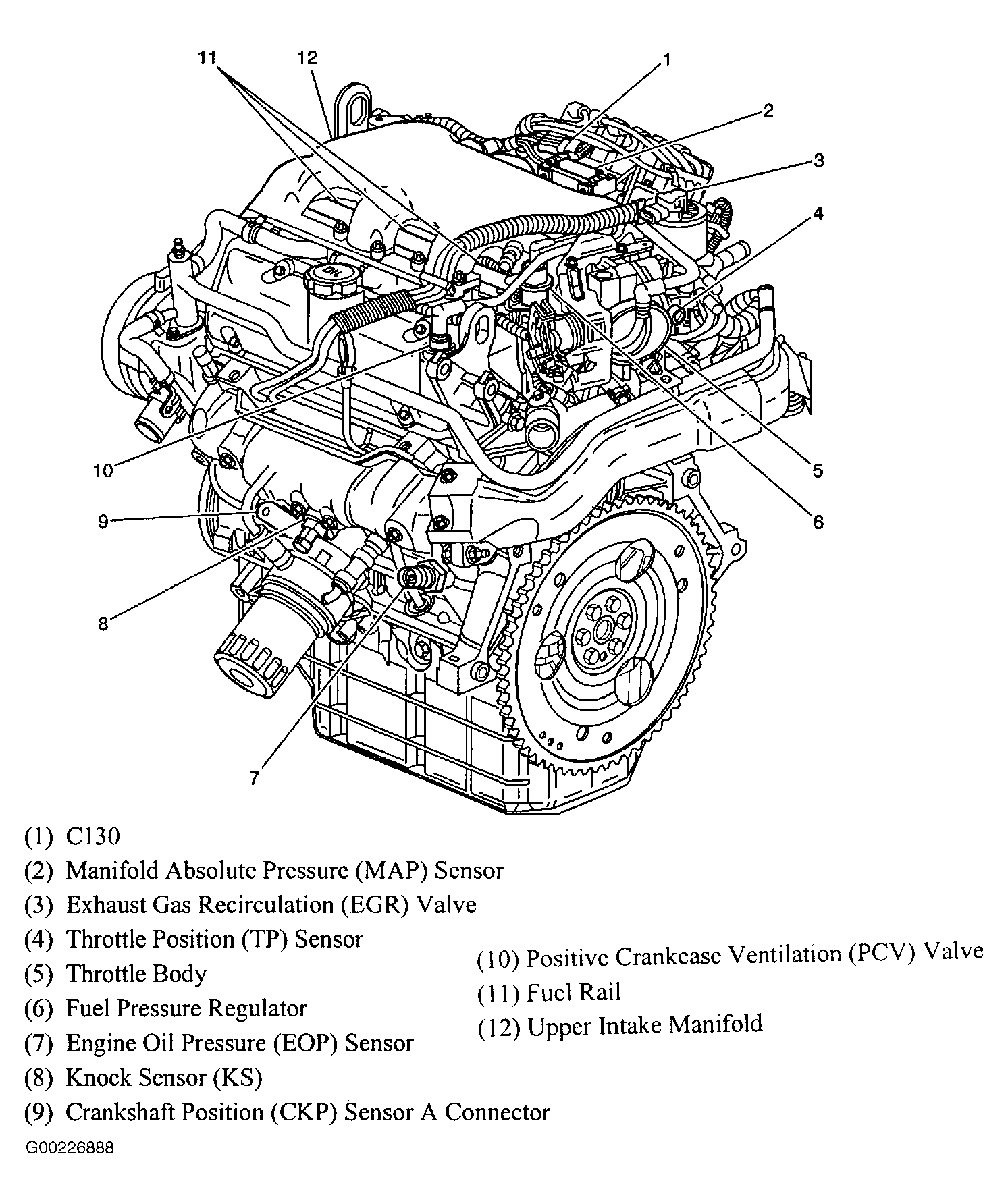

Fig 1: Locating Engine Control Components (3.4L)

Courtesy of GENERAL MOTORS CORP.

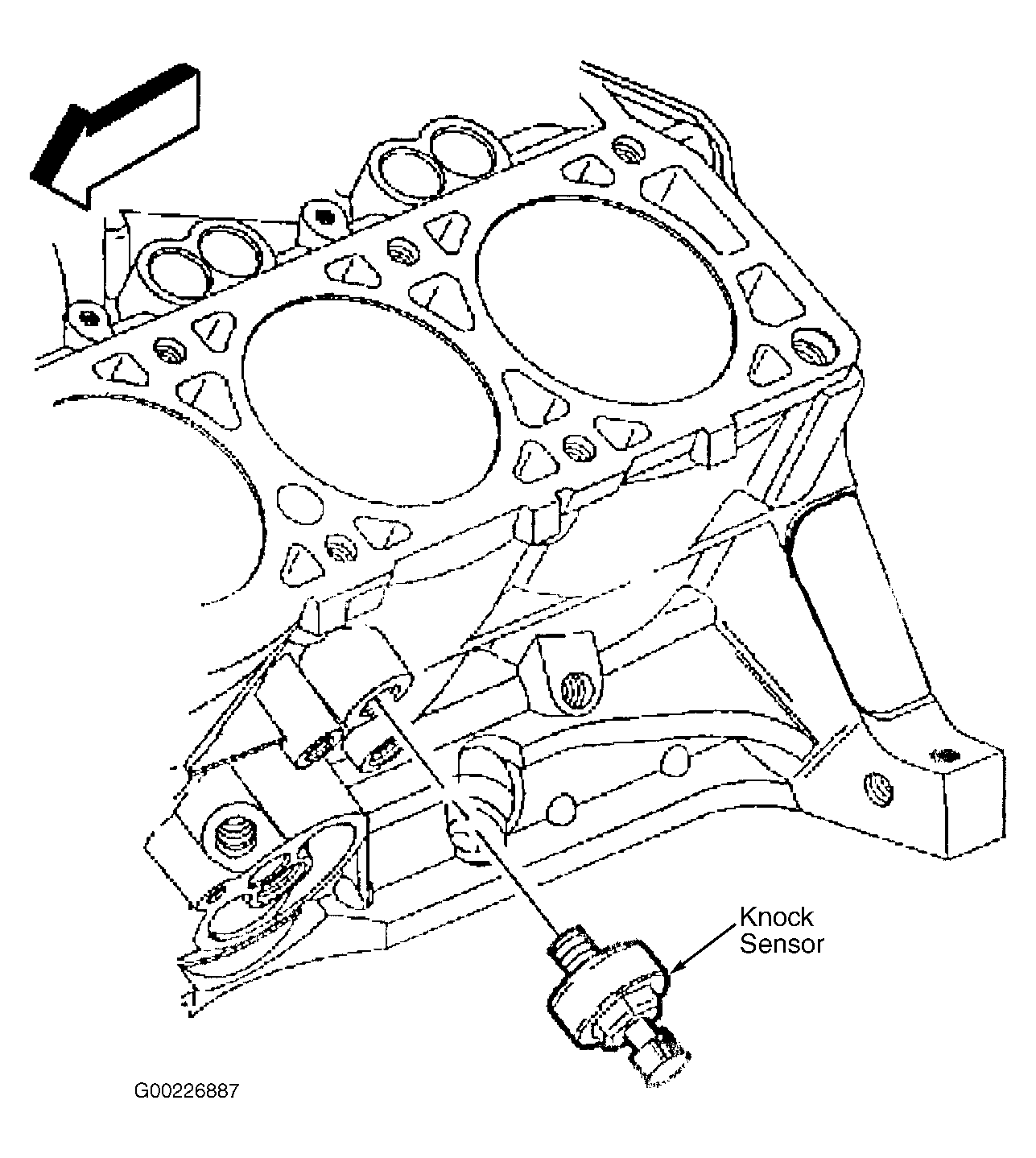

Fig 2: Removing/Installing Knock Sensor (3.4L)

Courtesy of GENERAL MOTORS CORP.
