Idle Air Control Valve: Removal
WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

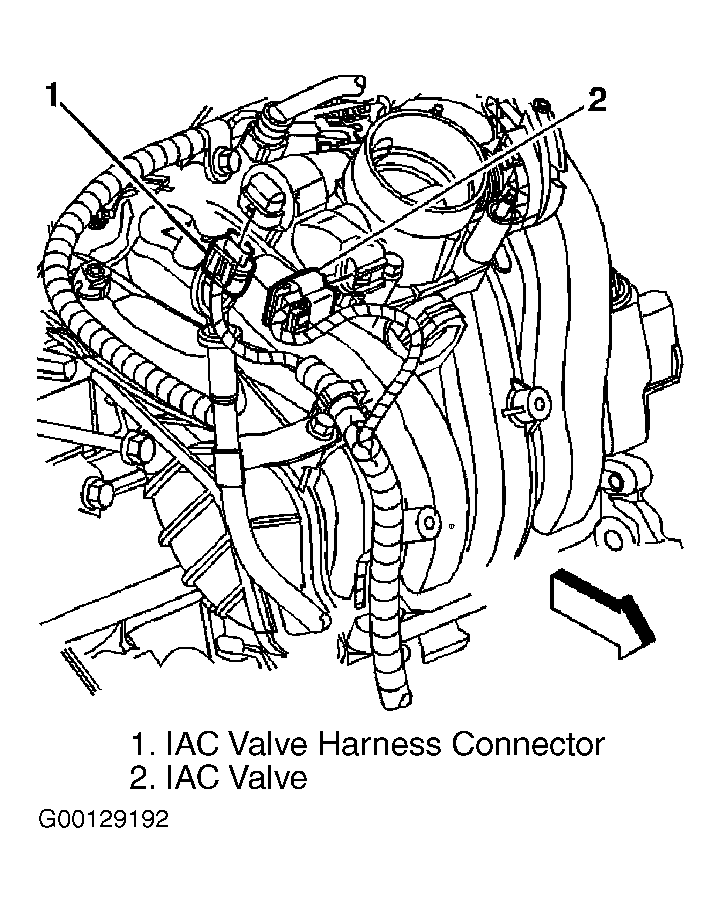

IAC valve is located on side of throttle body. See Fig 1.
- Turn ignition switch to OFF position.
- Disconnect negative battery cable.
- Remove the air cleaner outlet resonator.
- Disconnect harness connector from IAC valve.
- Remove IAC valve screw.
- Remove IAC valve and seal from throttle body assembly.
