EVAP Canister Vent Valve: Removal

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle.
  2. Loosen the EVAP canister vent valve hose clamp and slide the clamp down the hose away from the EVAP vent valve hose connection. See Fig 1.
  3. Remove the hose from the EVAP canister vent valve.
  4. Remove the EVAP canister vent valve by placing a pry bar between the valve and mounting surface, and moving the valve forward. See Fig 2.
  5. Remove the clip from the EVAP canister vent valve harness connector. See Fig 3.
  6. Disconnect the EVAP canister vent valve harness connector. See Fig 4.
Fig 1: Removing/Installing Vent Valve Hose
G00217353Courtesy of GENERAL MOTORS CORP.

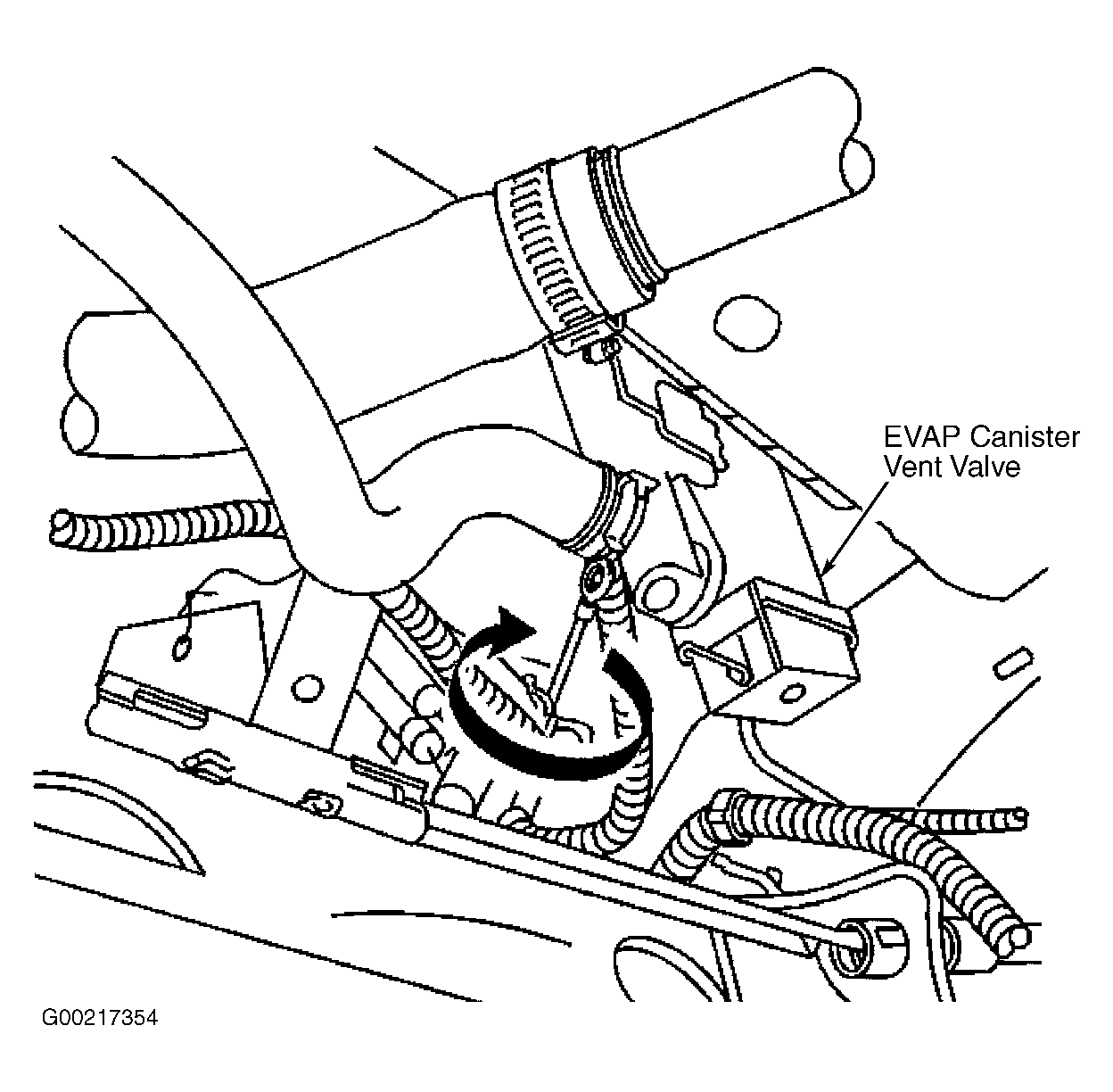

Fig 2: Removing EVAP Canister Vent Valve
G00217354Courtesy of GENERAL MOTORS CORP.
Fig 3: Removing EVAP Canister Vent Valve Harness Connector Clip
G00217355Courtesy of GENERAL MOTORS CORP.

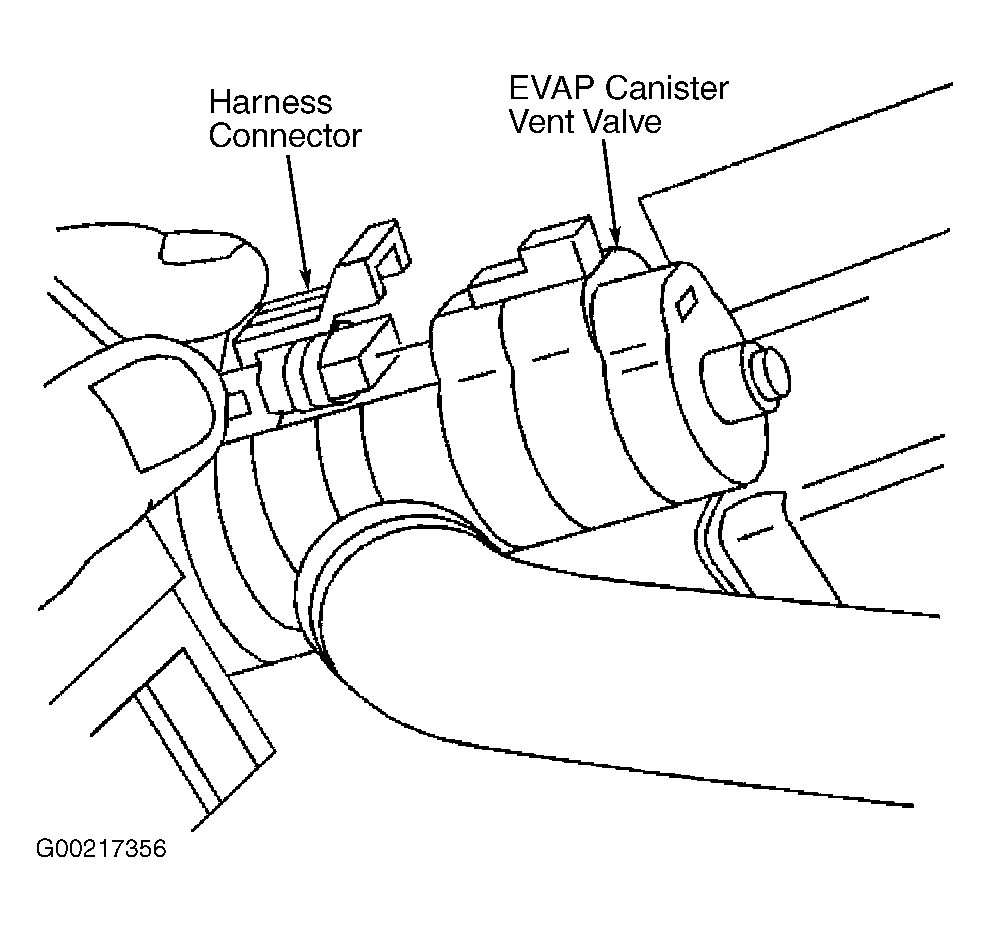

Fig 4: Disconnecting EVAP Vent Valve Harness Connector
G00217356Courtesy of GENERAL MOTORS CORP.
