Removal (HPR)
WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
- High Pressure Regulator (HPR) is located in left side of trunk compartment. Release fuel pressure. See FUEL SYSTEM PRESSURE RELEASE (CNG) .
- Lower the rear seat.
- Loosen the lower vent hose clamp.
- Pull the vent hose from the HPR.
- Disconnect the HPR to the HPL fuel line from the HPR.

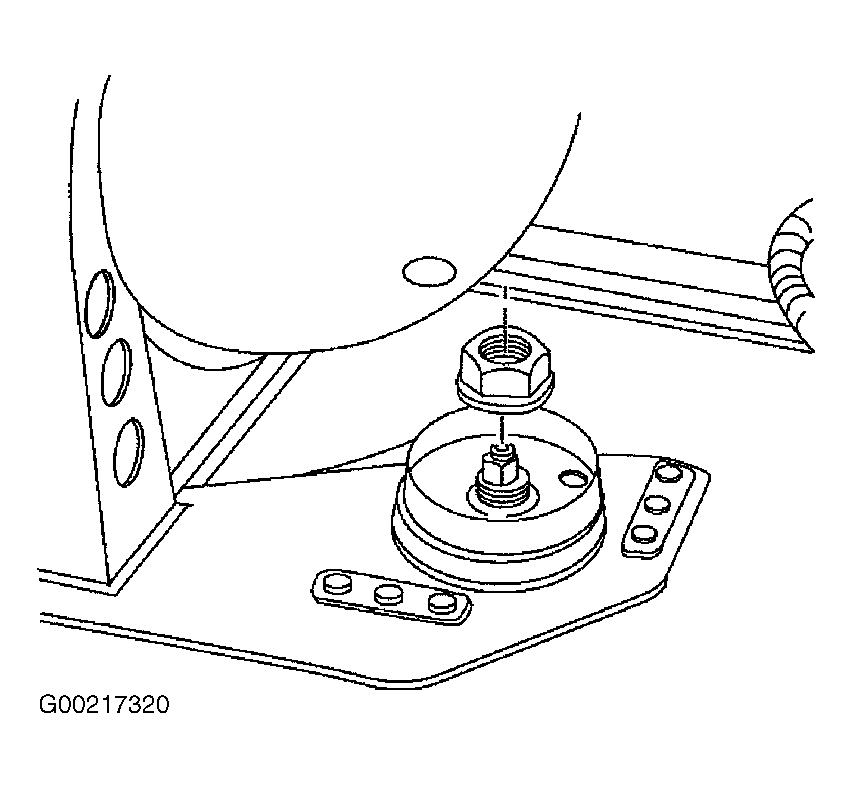

- Remove the HPR mounting nut. See Fig 1.
- Raise and support the vehicle.
- Install hose pinching clamps on the coolant inlet and the outlet lines at the HPR.
- Remove the coolant hoses from the HPR.

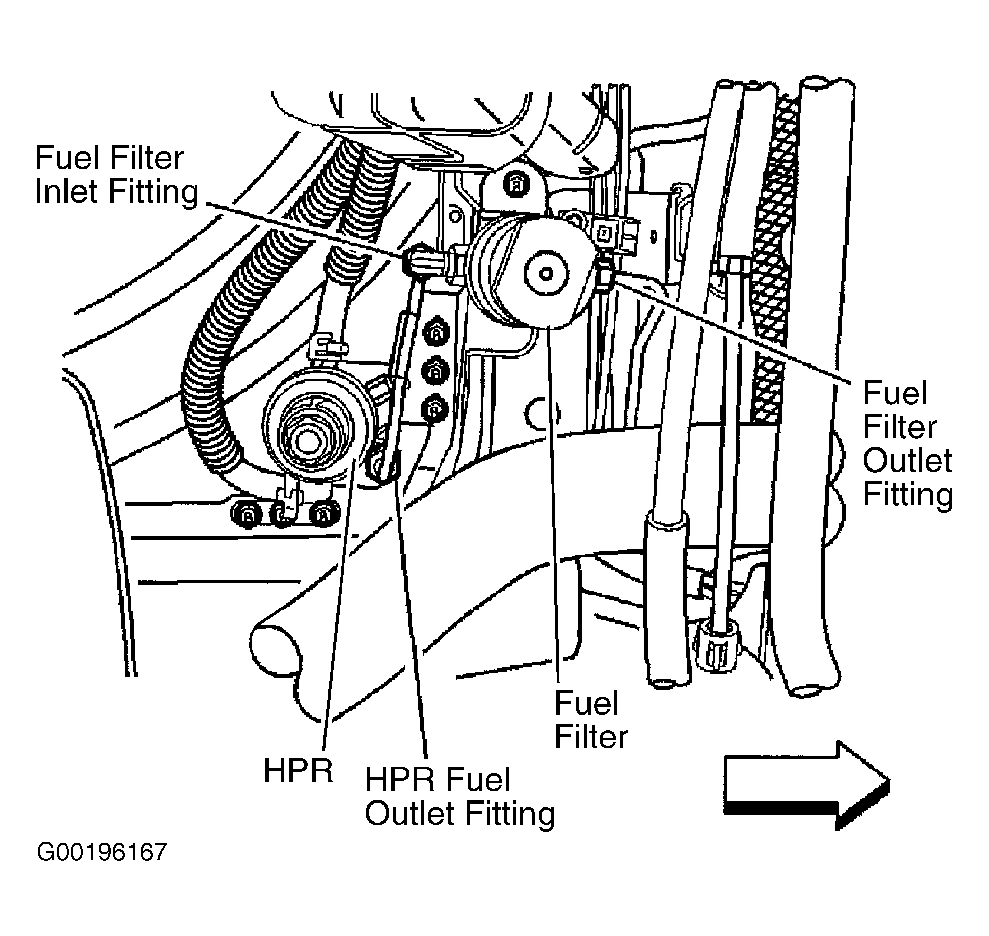

- Disconnect the fuel outlet line from the HPR. See Fig 2.
- Remove the HPR.
