Disassembly Procedure
WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Shipping regulations prohibit transporting a fuel tank containing CNG. Vent the fuel tank before shipping it.
NOTE:

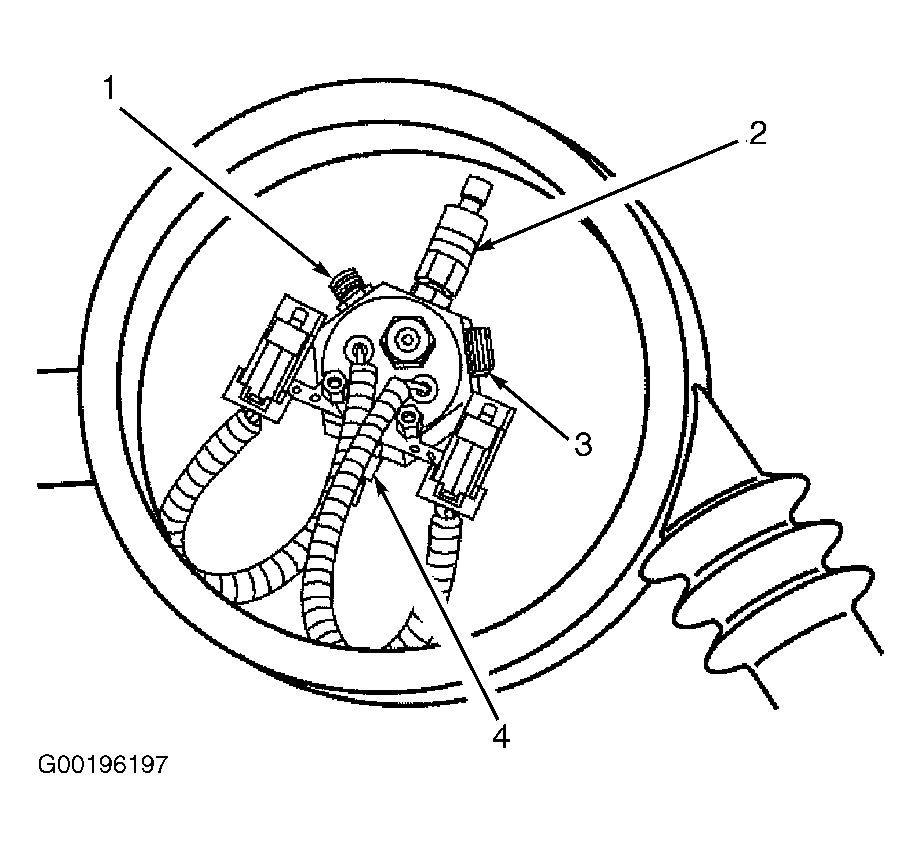

Numbers in text refer to numbered components in illustration. See Figure.
If replacing the tank, remove the following components:
- Remove rubber isolators.
- Remove Fuel Tank Pressure (FTP) sensor (2).
- Remove fuel inlet fitting (3) from the tank valve.
- Remove fuel outlet fitting (1) from the tank valve.
- Remove HPL Pressure Relief Device (PRD) line fitting (4) from the tank valve.
- Remove vent boot.
- Remove and discard the CNG Fuel Only label from the fill door.
- Remove and discard the Bi-fuel Information label from the underhood area.
