Removal & Installation
WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

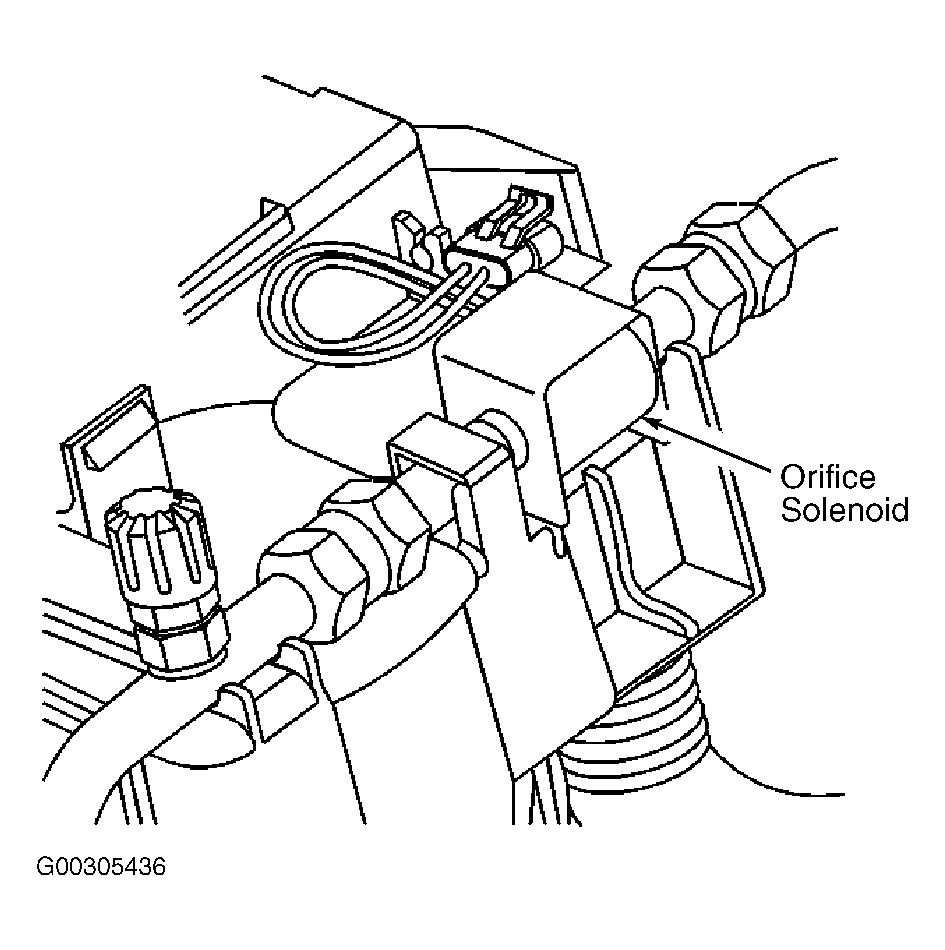

Discharge A/C system, using approved refrigerant recovery/recycling equipment. Disconnect harness connector from Orifice Solenoid. Disconnect Orifice Solenoid from actuator cover. Disconnect hose fittings at each end of Orifice Solenoid. Remove Orifice Solenoid. Remove filter screen from Orifice Solenoid. To install, reverse removal procedure. Lubricate "O" ring with refrigerant oil.
