Removal & Installation
WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
- Remove fasteners and push in retainers, holding left lower dashboard insulator panel to dashboard. Turn Air Temperature Sensor 1/4 turn counterclockwise to remove from insulator panel. Disconnect harness connector from lower instrument panel courtesy light. Slide insulator panel to rear and remove from vehicle.
- Remove 4 screws that hold glove box door to instrument panel. Pull toward rear on glove box door and remove door. Remove fasteners that secure glove box door to glove box. Remove Dashboard Integration Module (DIM) from bracket and position to side. Remove rear DIM bracket screws and lower bracket far enough to gain access to Blower Motor Control Processor.

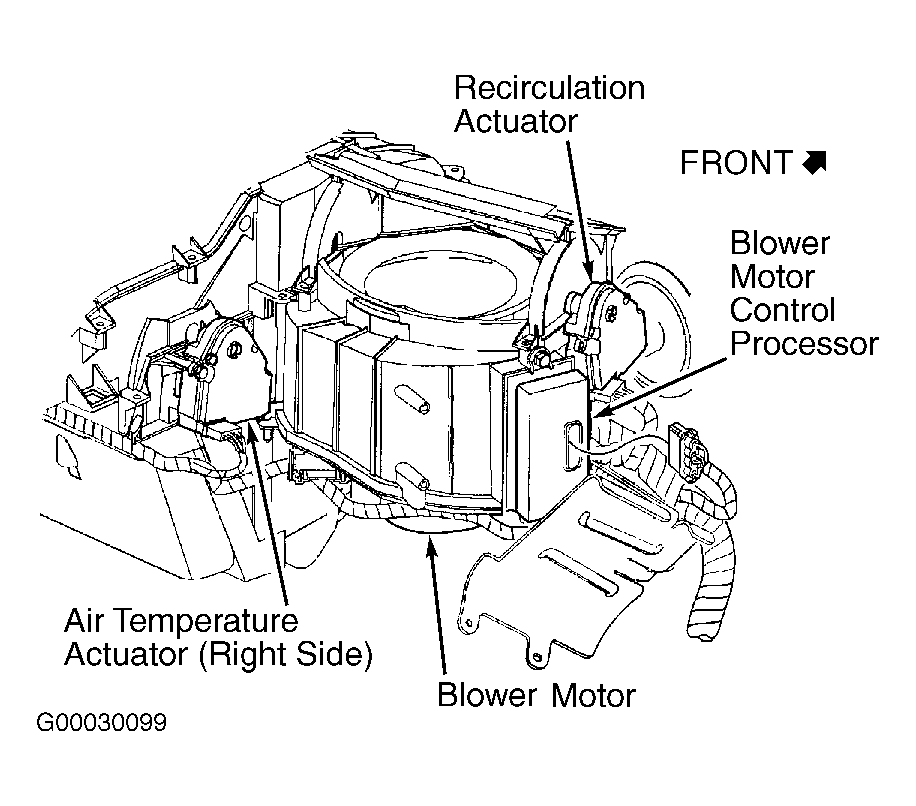

- Disconnect blower motor control processor harness connector. See Figure. Remove processor retaining screws and remove processor. To install, reverse removal procedure.
