Removal & Installation (Right & Left)

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

Remove HVAC head. See HVAC CONTROL HEAD . Remove Mode Actuator. See MODE ACTUATOR . Remove Recirculation Actuator. See RECIRCULATION ACTUATOR . Remove right and left Air Temperature Mode Actuators. See AIR TEMPERATURE DOOR ACTUATORS . Remove mode actuator bracket fasteners and bracket. Remove upper module case fasteners. Peel back foam from heater inlet and remove upper case. Remove Right or Left Temperature Door. See Fig 1 & Fig 2 . To install, reverse removal procedure.

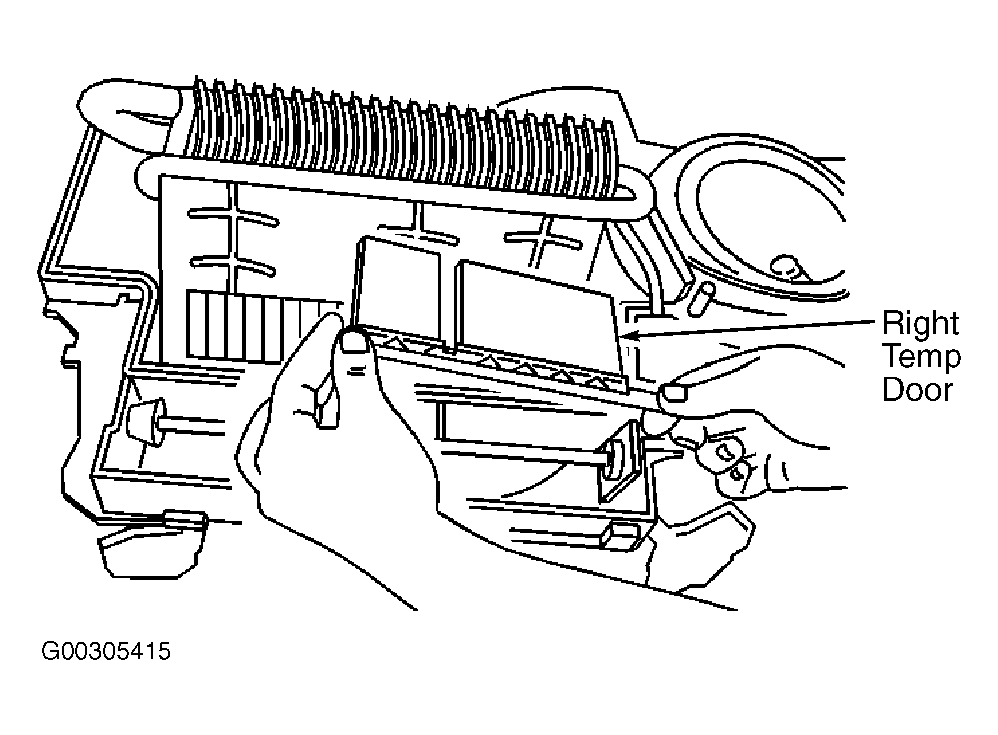

Fig 1: Removing & Installing Right Temperature Door

Courtesy of GENERAL MOTORS CORP.

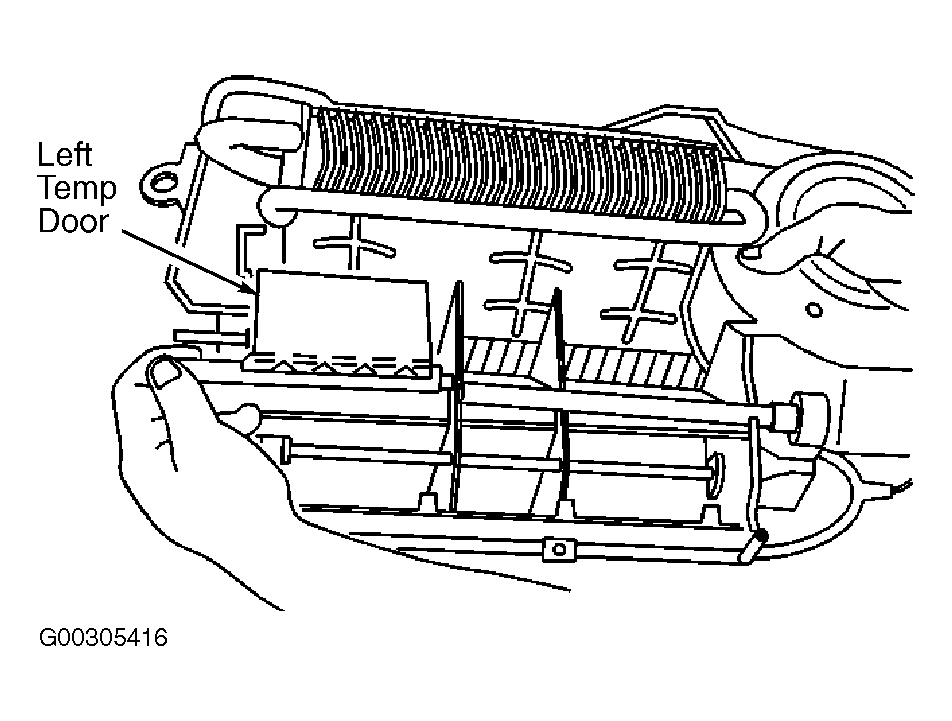

Fig 2: Removing & Installing Left Temperature Door

Courtesy of GENERAL MOTORS CORP.
