Torque Specifications
WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
TORQUE SPECIFICATIONS
| Application |
Ft. Lbs. (N.m) |
| Drain Plug |
13 (17) |
| Exhaust Piping |
32 (43) |
| Front Transaxle Mount |
| Bolts |
29 (39) |
| Bracket Bolt |
47 (64) |
| Through Bolt |
38 (52) |
| Left Transaxle Mount |
| Bracket Bolts |
59 (80) |
| Mount-To-Body Bolt |
38 (52) |
| Through Bolt & Nut |
59 (80) |
| Oil Cooler Pipes-To-Transaxle |
25 (35) |
| Rear Transaxle Mount |
| Bolt |
38 (52) |
| Through Bolt |
64 (87) |
| Support 3 Nuts & One Bolt |
38 (52) |
| Starter Assembly Bolt |
27 (37) |
| Torque Converter Bolt |
18 (25) |
| Transaxle-To-Engine Retaining Bolt |
|
Bolt (1) |
64 (47) |
|
Bolt (2) |
35 (46) |
|
Bolt (3) |
17 (23) |

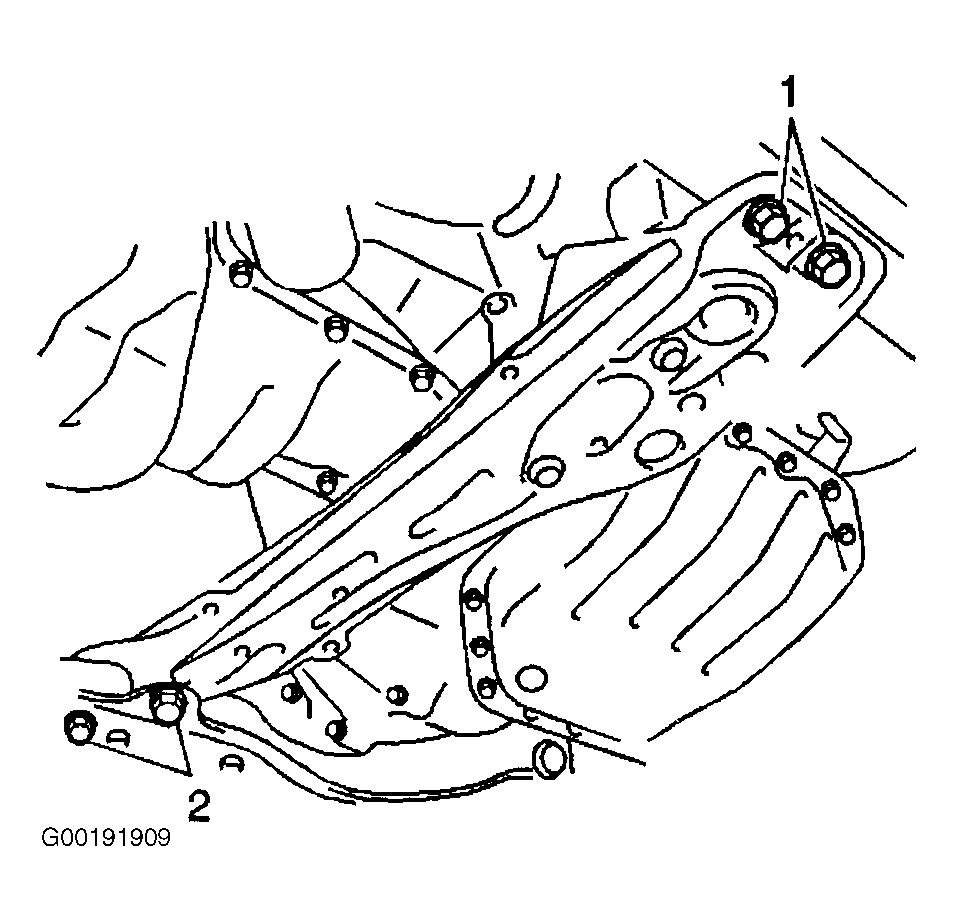

| Transmission Support Bolt |
|
Bolt (1) |
29 (39) |
|
Bolt (2) |
38 (52) |
| INCH Lbs. (N.m) |
| ACL Bolt |
62 (7) |
| Battery Hold Down Bracket Bolt |
71 (8) |
| Battery Positive & Negative Cable |
133 (15) |
| Fluid Pan Bolt |
47 (5.5) |
| Ground Cable-To-Transaxle |
89 (10) |
| Left Hold Down Bracket Bolt & Nut |
106 (12) |
| Oil Cooler Pipe Clamp-To-Transaxle |
49 (6) |
| PNP Switch Bolt |
48 (5.4) |
| Shift Cable Nut |
106 (12) |
| Splash Shield |
89 (10) |
| Vehicle Speed Sensor Bolt |
53 (6) |
| Wire Harness Bracket |
106 (12) |
