Vehicle Speed Sensor: Removal

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

Turn ignition key to OFF position. Disconnect the negative battery cable.
Disconnect the Vehicle Speed Sensor (VSS) harness connector (1). See Fig 1 or Fig 2 .
Remove VSS retaining bolt and the VSS from the transaxle.
Inspect the VSS "O" ring for cuts or damage. Replace as necessary.

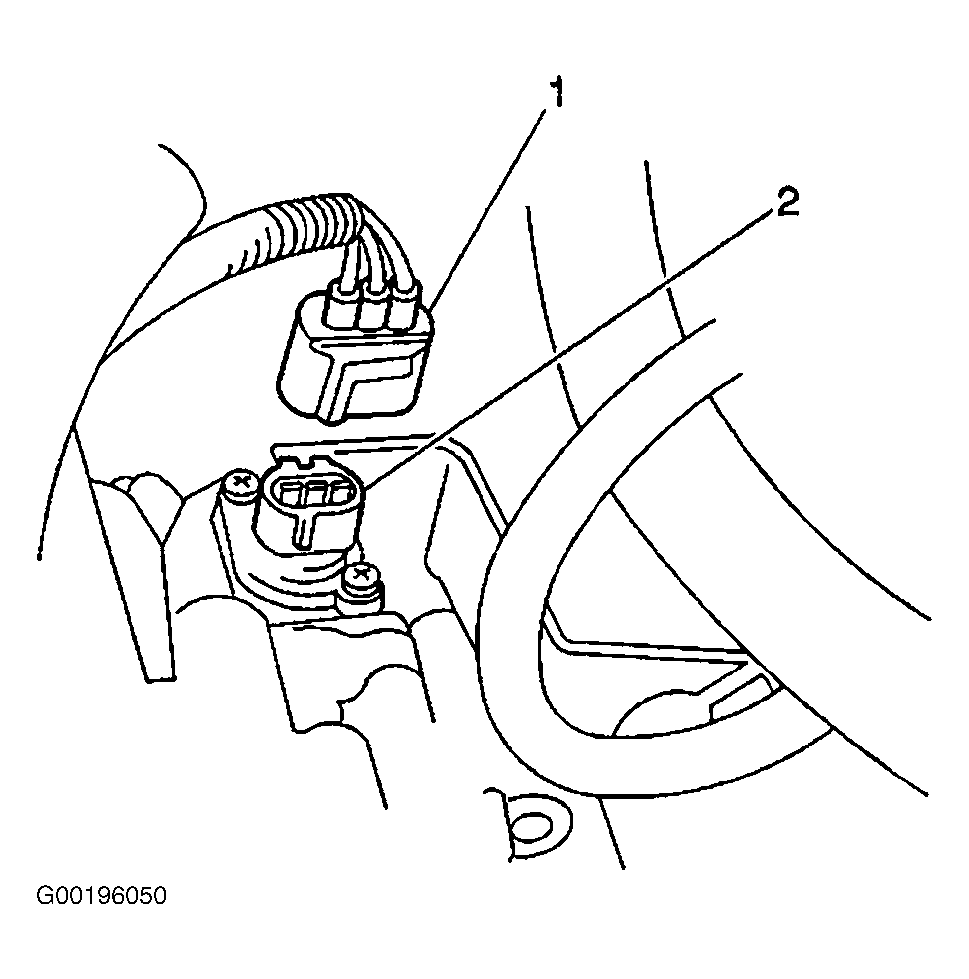

Fig 1: Removing/Installing Vehicle Speed Sensor (A/T)

Courtesy of GENERAL MOTORS CORP.

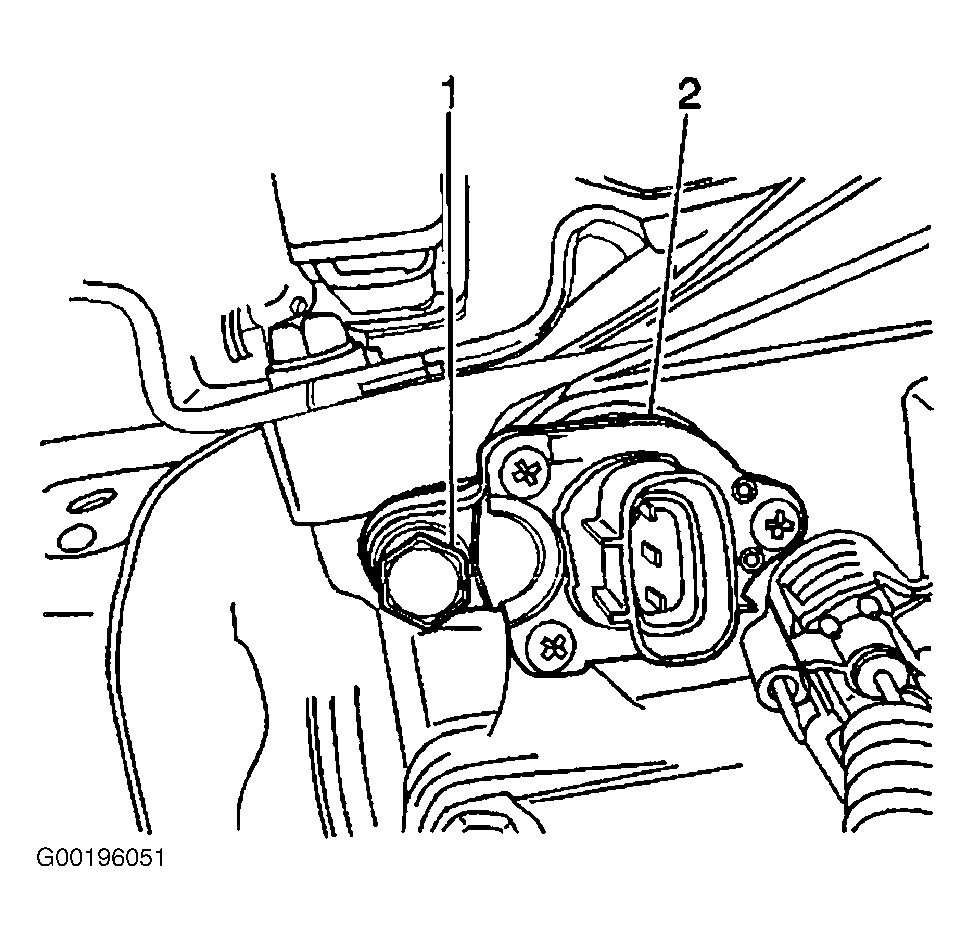

Fig 2: Removing/Installing Vehicle Speed Sensor (M/T)

Courtesy of GENERAL MOTORS CORP.
