Throttle Position Sensor: Removal

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

Remove the inlet air duct from between the air cleaner and throttle body.
Remove Throttle Position (TP) sensor (2) mounting screws (3). See Fig 1 .
Remove the TP sensor (2) from the throttle body.

Fig 1: Removing Throttle Position Sensor

Courtesy of GENERAL MOTORS CORP.

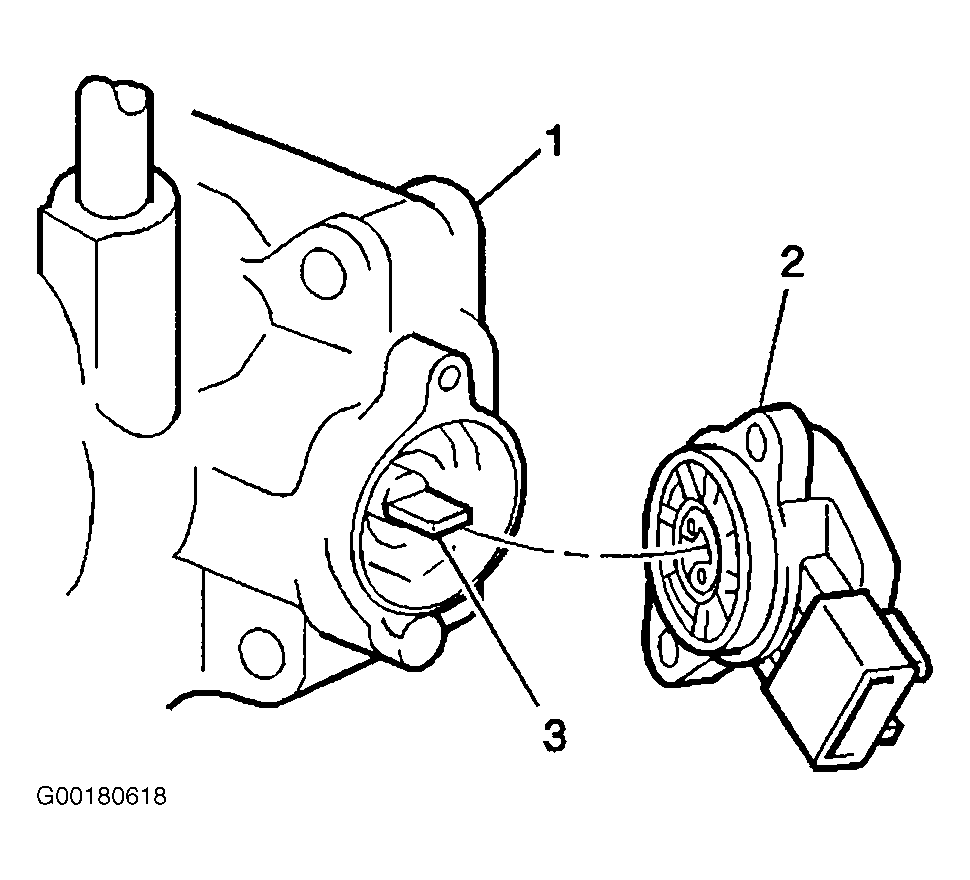

Fig 2: Installing Throttle Position Sensor

Courtesy of GENERAL MOTORS CORP.
