Power Steering Pressure Switch: Installation
WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
- Apply fluid to the sealing portion of the PSP switch.
- Install the PSP switch to the pump. Tighten PSP switch to specification. See TORQUE SPECIFICATIONS .

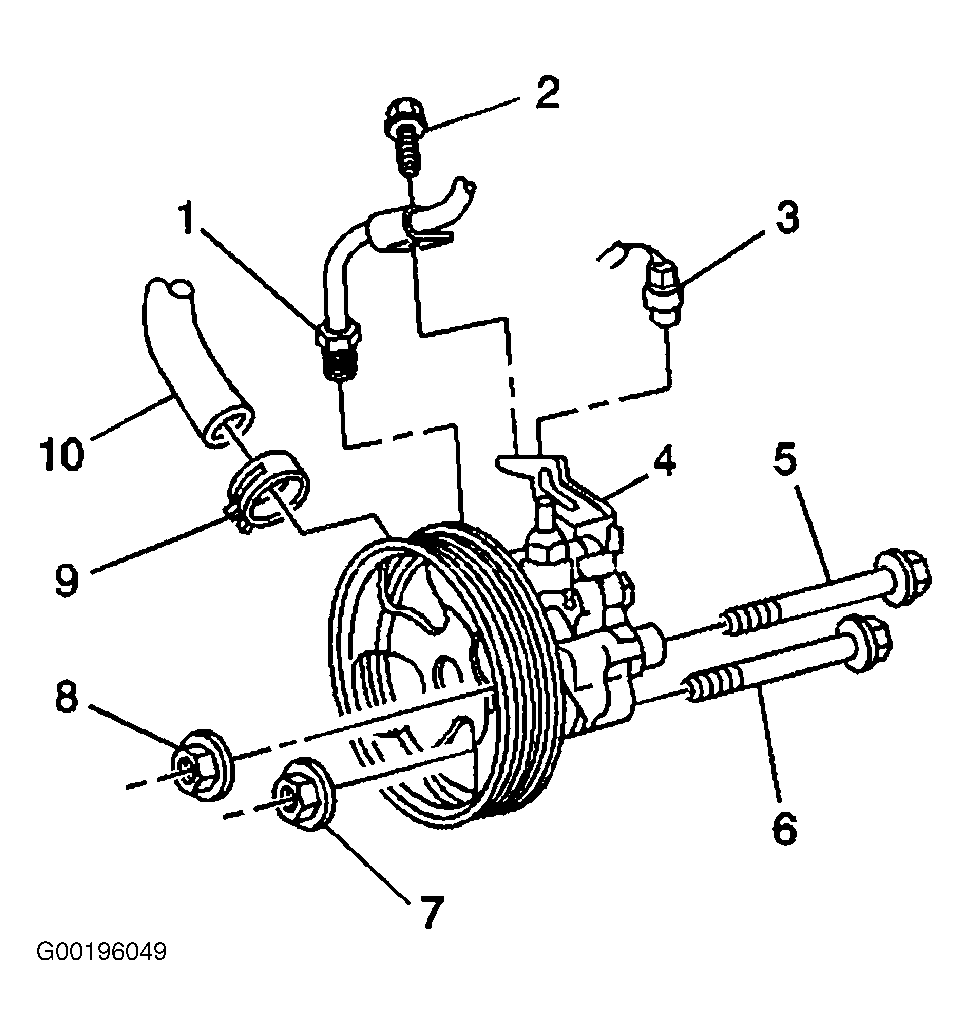

- Verify PSP switch connectors are clean. Connect PSP switch harness connector (3). See Figure .
- Install right front tire and wheel assembly.
- Install right front engine splash shield.
- Lower vehicle.
