Mass Air Flow Sensor: Removal
WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

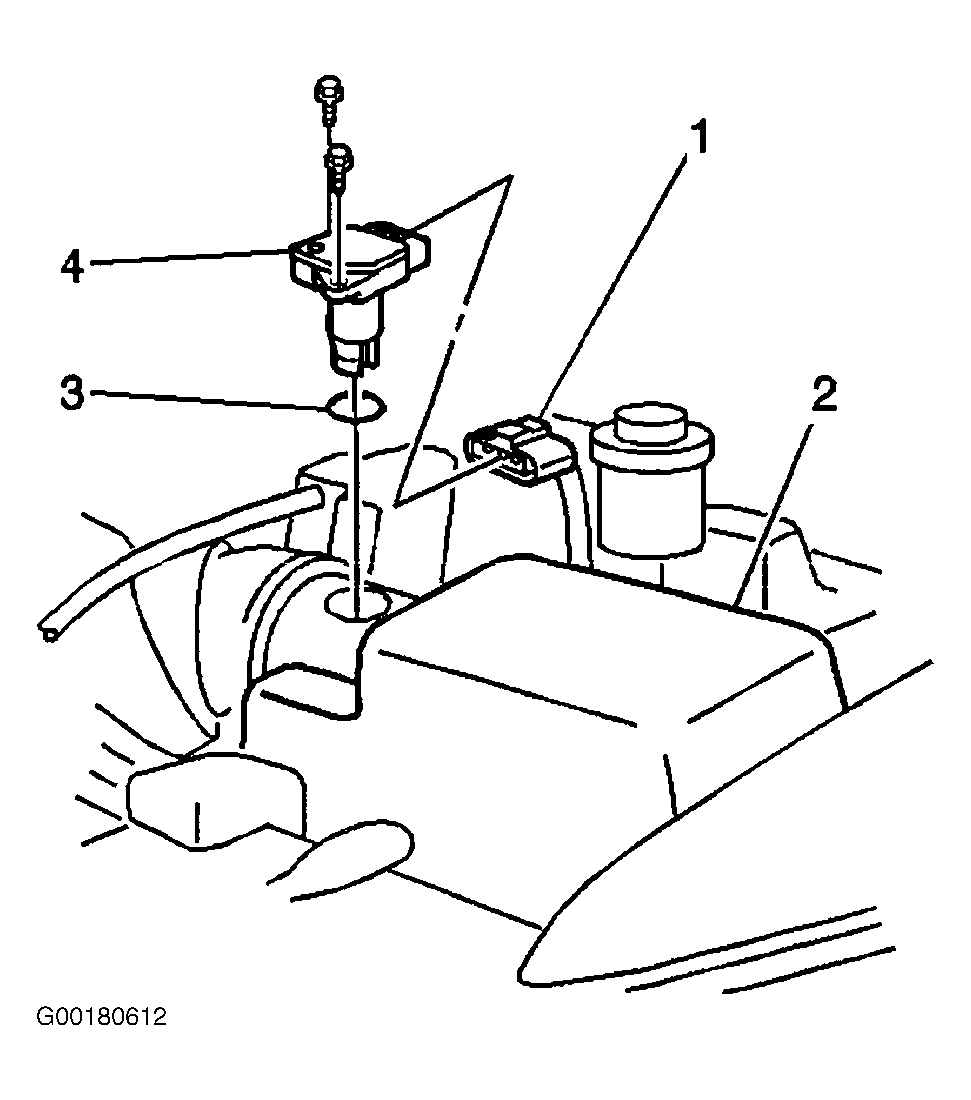

- Disconnect Mass Air Flow (MAF) sensor (4) harness connector (1). See Fig 1
.
- Remove the 2 screws.
- Remove MAF sensor (4) from the air cleaner housing (2). See Fig 1
.
- Remove "O" ring (3). See Fig 1
.
Courtesy of GENERAL MOTORS CORP.
