Knock Sensor: Removal

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

Remove the intake manifold (1). See appropriate article in ENGINES. See Fig 1 .
Disconnect the Knock Sensor (KS) harness connector (2). See Fig 2 .
Remove the nut (1) securing KS (2) to the engine block. See Fig 2 .
Remove the KS (2) from engine block.

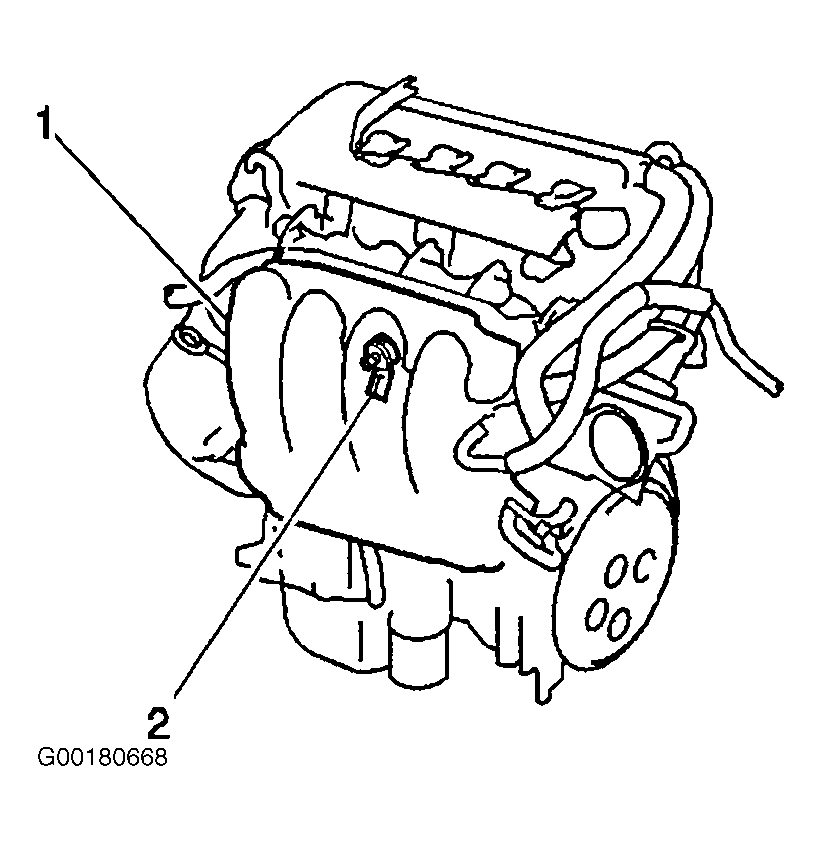

Fig 1: Locating Knock Sensor

Courtesy of GENERAL MOTORS CORP.

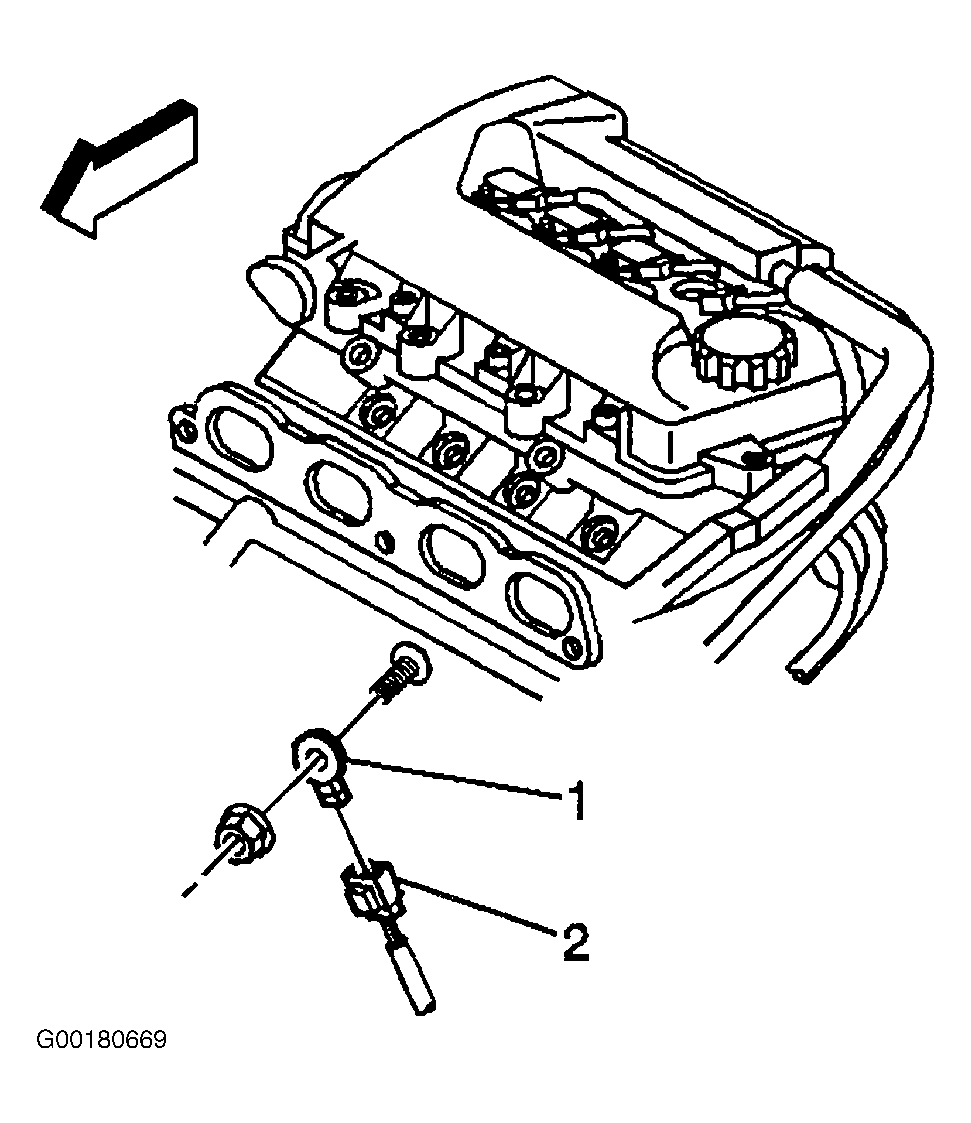

Fig 2: Removing/Installing Knock Sensor

Courtesy of GENERAL MOTORS CORP.
