Camshaft Position Sensor: Installation

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

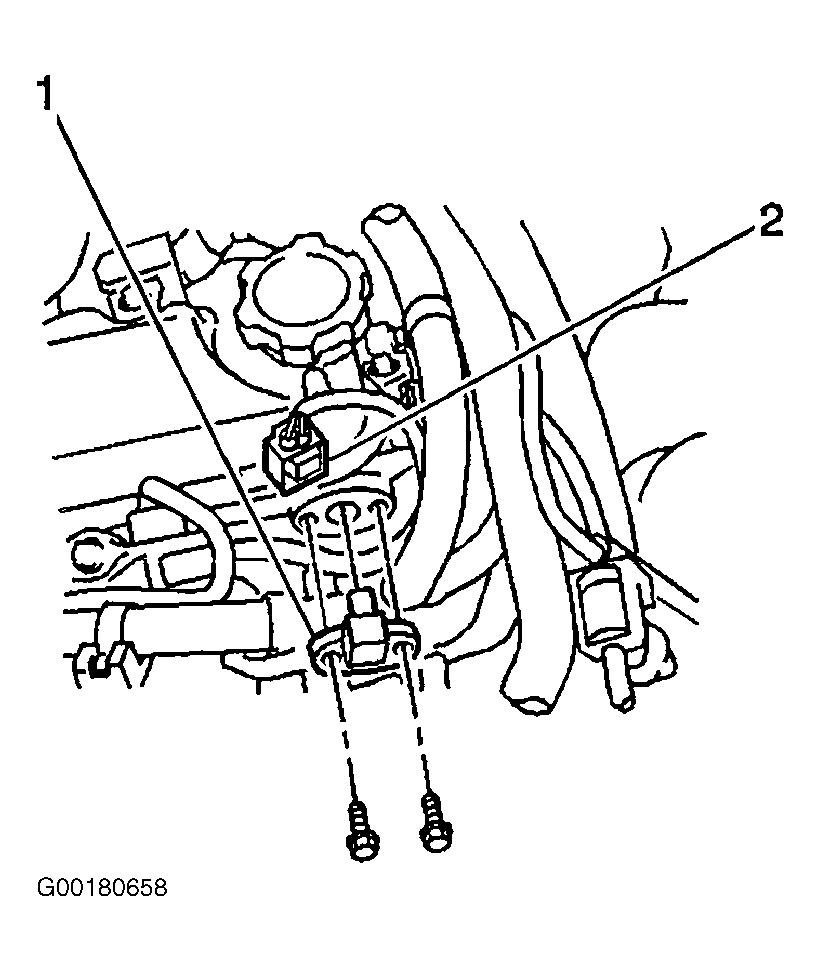

  1. Install CMP sensor (2) into the cylinder head. See Figure .
  2. Install the 2 CMP sensor hold-down bolts. Tighten bolts to specification. See TORQUE SPECIFICATIONS  . See Figure .
  3. Connect CMP sensor harness connector (1).
  4. Install engine cover (1). See Figure .
  5. Install engine cover (1) bolts. Tighten bolts to specification. See TORQUE SPECIFICATIONS  . See Figure .
