BRAKELIGHT Switch: Installation
WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

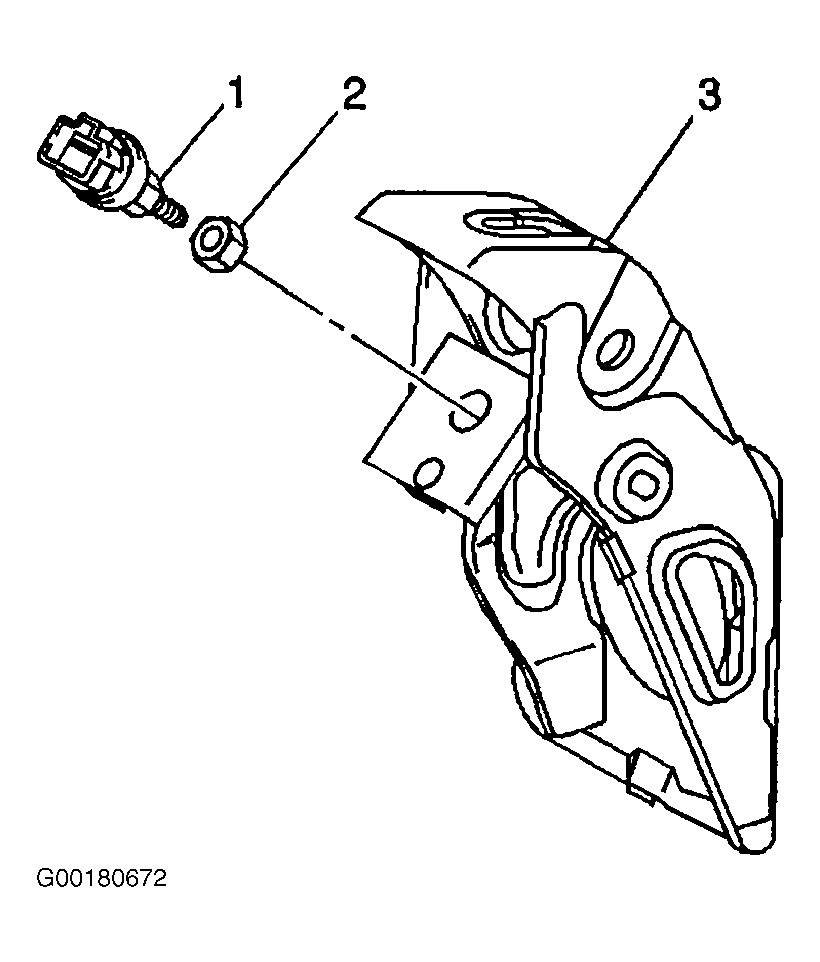

- Install the brakelight switch (1) to the brake pedal bracket (3). Secure the brakelight switch (1) using one lock nut (2). See Figure . Do not tighten at this time.
- Adjust the brakelight switch clearance.
- Connect brakelight switch harness connector.
- Connect the negative battery cable. Tighten clamp bolt to specification. See TORQUE SPECIFICATIONS .

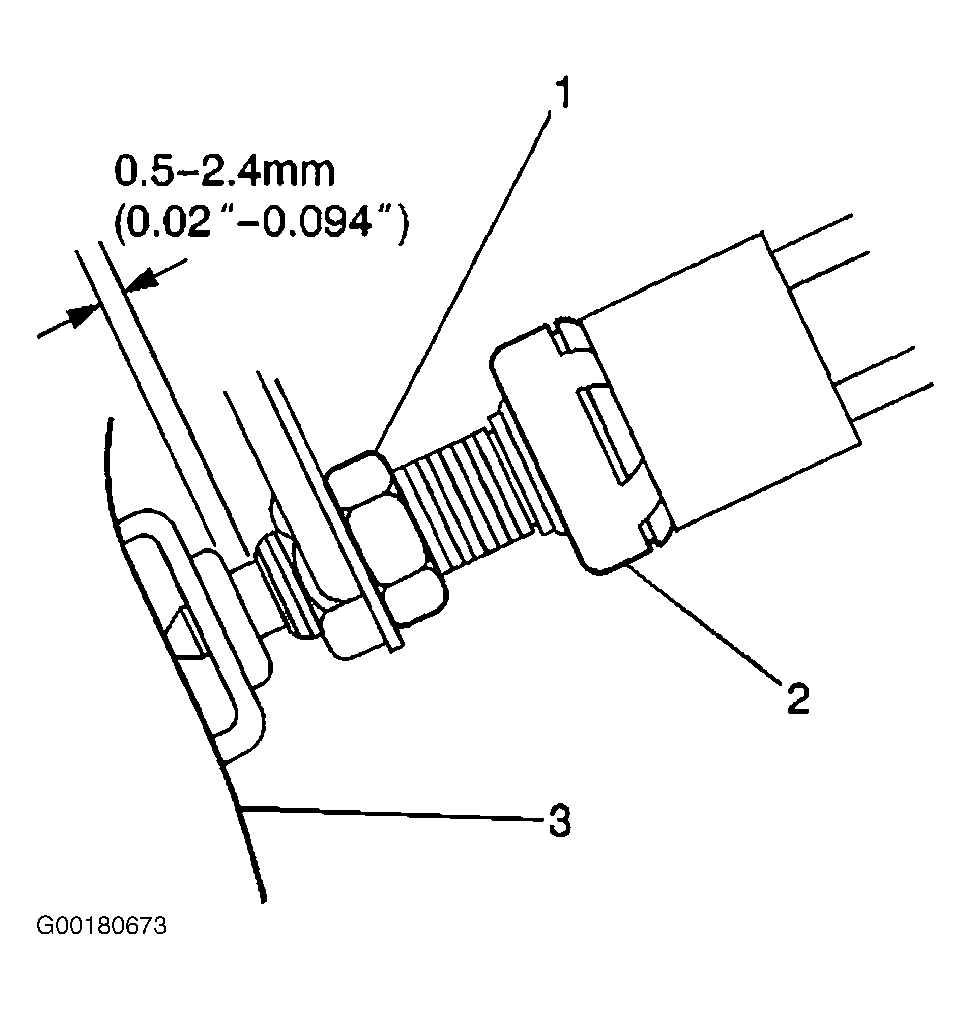

- Turn brakelight switch (2) until the switch lightly contacts the pedal stopper. See Fig 1 .
- Verify the distance between the end of the brakelight switch plunger and the end of the threaded portion of the brakelight switch is 0.02-0.094" (0.5-2.4 mm). See Fig 1 .
- Tighten brakelight switch (1) lock nut (2) to specification. See TORQUE SPECIFICATIONS . See Figure .
