EVAP Canister Purge Valve: Installation

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

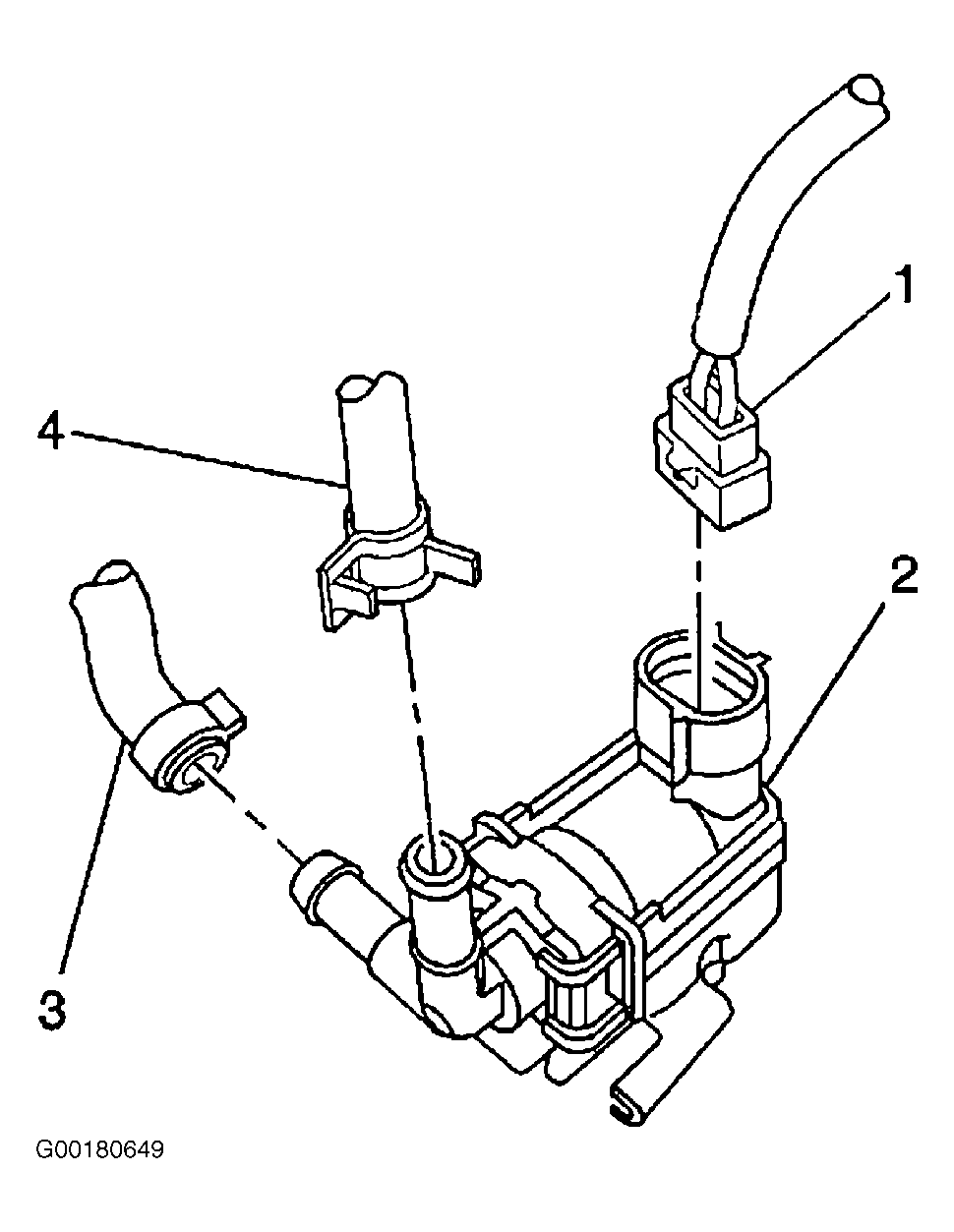

  1. Install EVAP canister purge valve (2) to air cleaner housing.
  2. Connect purge hose (3) to EVAP canister purge valve (2). See Figure .
  3. Connect vacuum hose (4) to EVAP canister purge valve (2).
  4. Connect EVAP canister purge valve (2) harness connector (1).
