Auxiliary Intake Air Control Solenoid: Installation

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

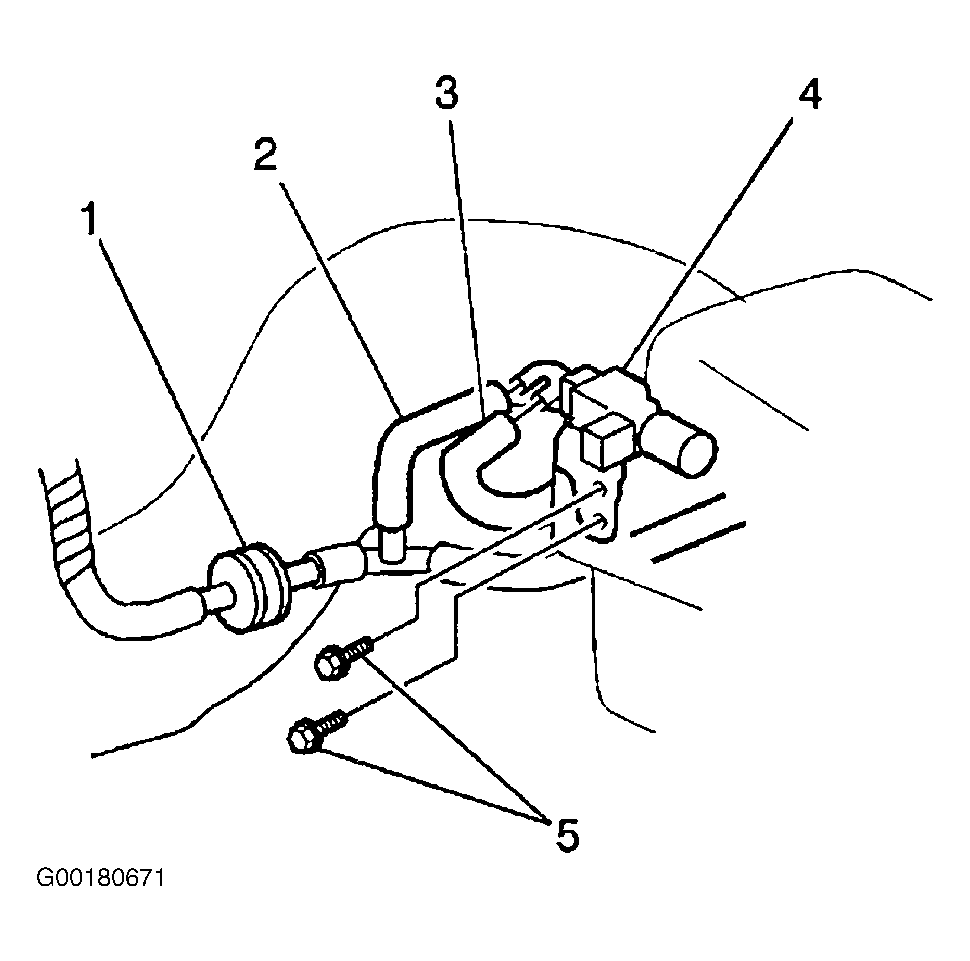

  1. Install the auxiliary intake air control solenoid (4) to the air cleaner housing with the 2 bolts (5). See Figure . Tighten bolts to specification. See TORQUE SPECIFICATIONS  .
  2. Connect vacuum hoses (2)( 3) to the auxiliary intake air control solenoid (4). See Figure .
  3. Connect the auxiliary intake air control solenoid harness connector.
