Removal & Installation (Thunderbird)
WARNING: This page does not describe the selected car, but rather 110 other vehicles, including the 2003 Pontiac Vibe, 2003 Pontiac Sunfire, 2003 Pontiac Montana, 2003 Pontiac Grand Prix, and 2003 Pontiac Grand Am. However, it is still accessible from the selected car via links, so may be relevant.
- Before proceeding, see SERVICE PRECAUTIONS . The passenger air bag module is mounted in right side of instrument panel, above glove box. Record radio preset frequencies for reprogramming (if equipped). Deactivate the air bag system. See DISABLING & ACTIVATING AIR BAG SYSTEM .
- Position the seats as needed to remove the console. Disconnect the battery. Apply parking brake and place the transmission selector lever in NEUTRAL. Pull upward from front of the trim panel to release the retainers and remove console finish panel. Disconnect electrical connectors and lower instrument panel finish panel. Remove parking brake boot. Remove floor console assembly rear nut, and front and rear screws. Remove floor console assembly rear bolts and floor console assembly.

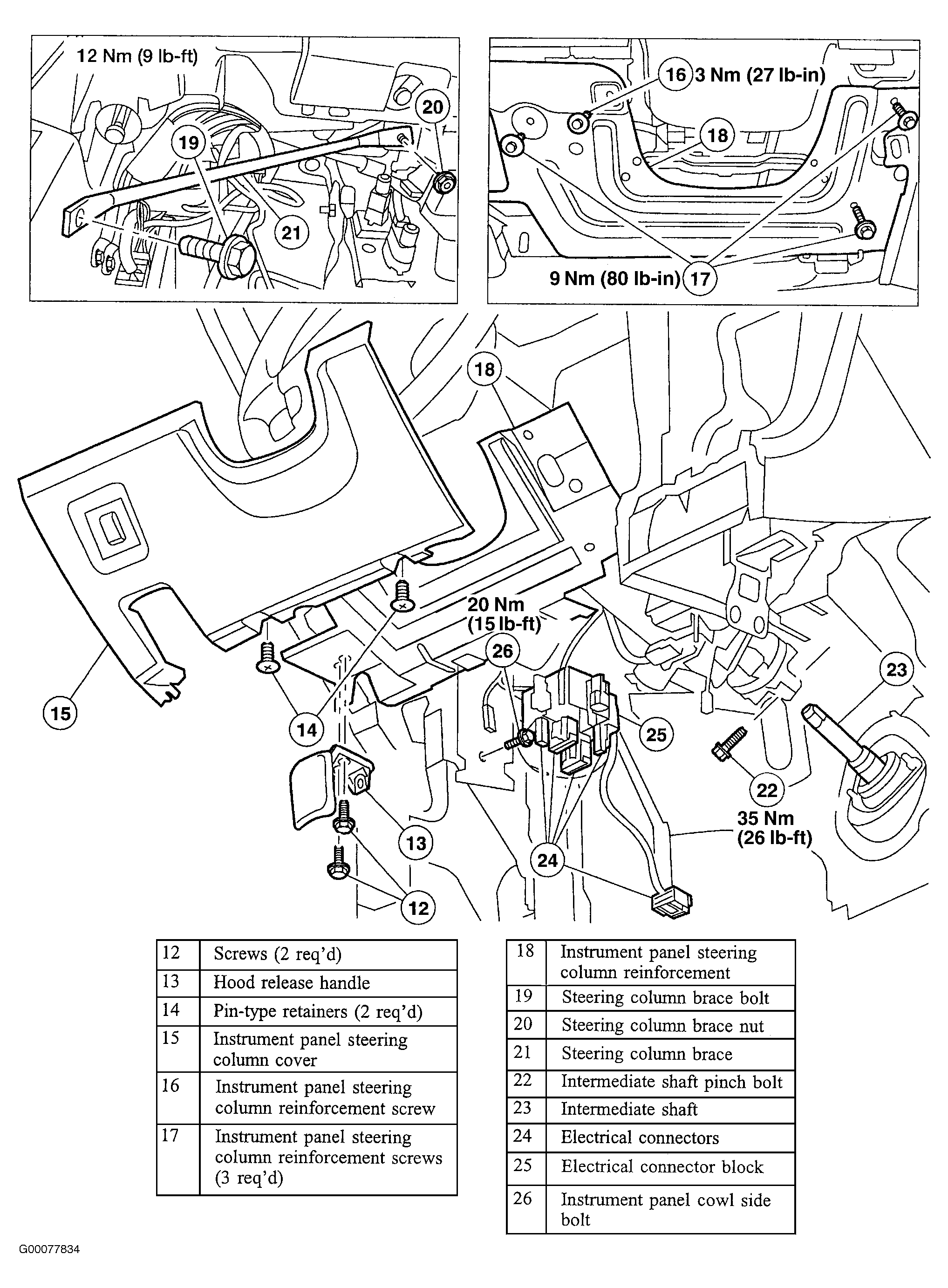

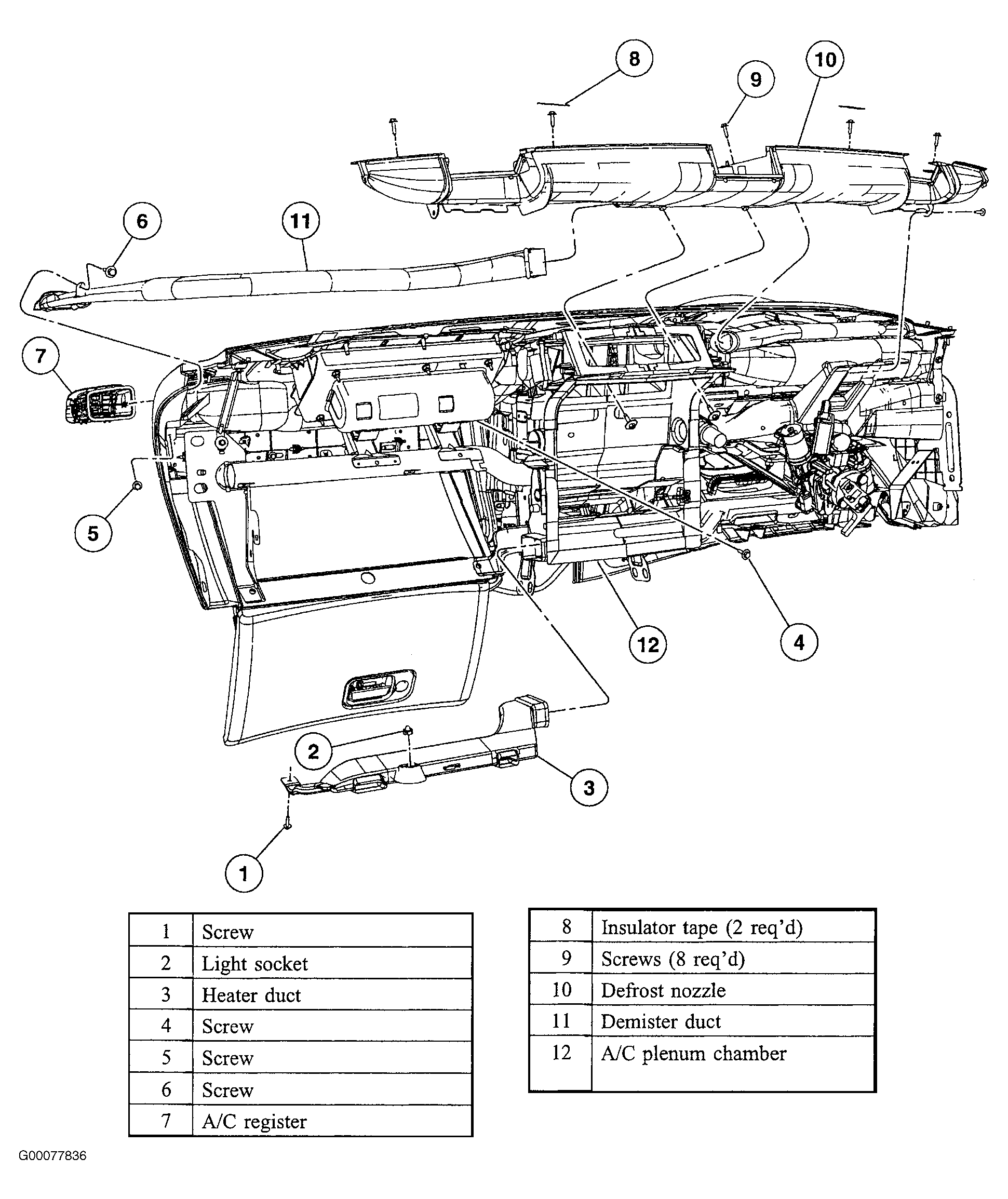

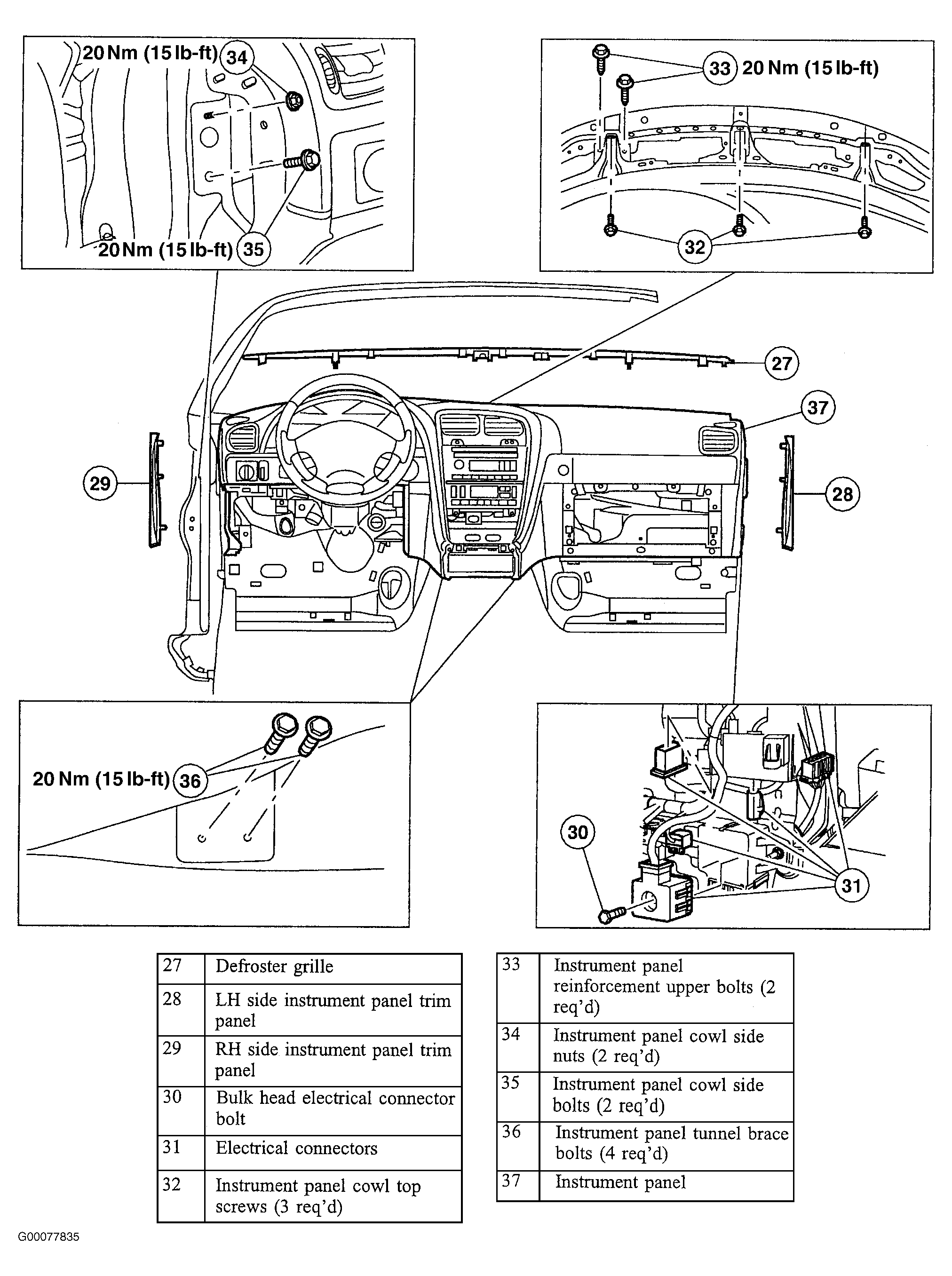

- Remove the left and right "A" pillar lower trim panels. Remove left and right windshield side garnish moldings. Remove instrument panel components in the order indicated. See Fig 1, Fig 2 and Fig 3 . Ensure air bag simulator is installed in place of passenger air bag module. With help from an assistant, remove instrument panel.

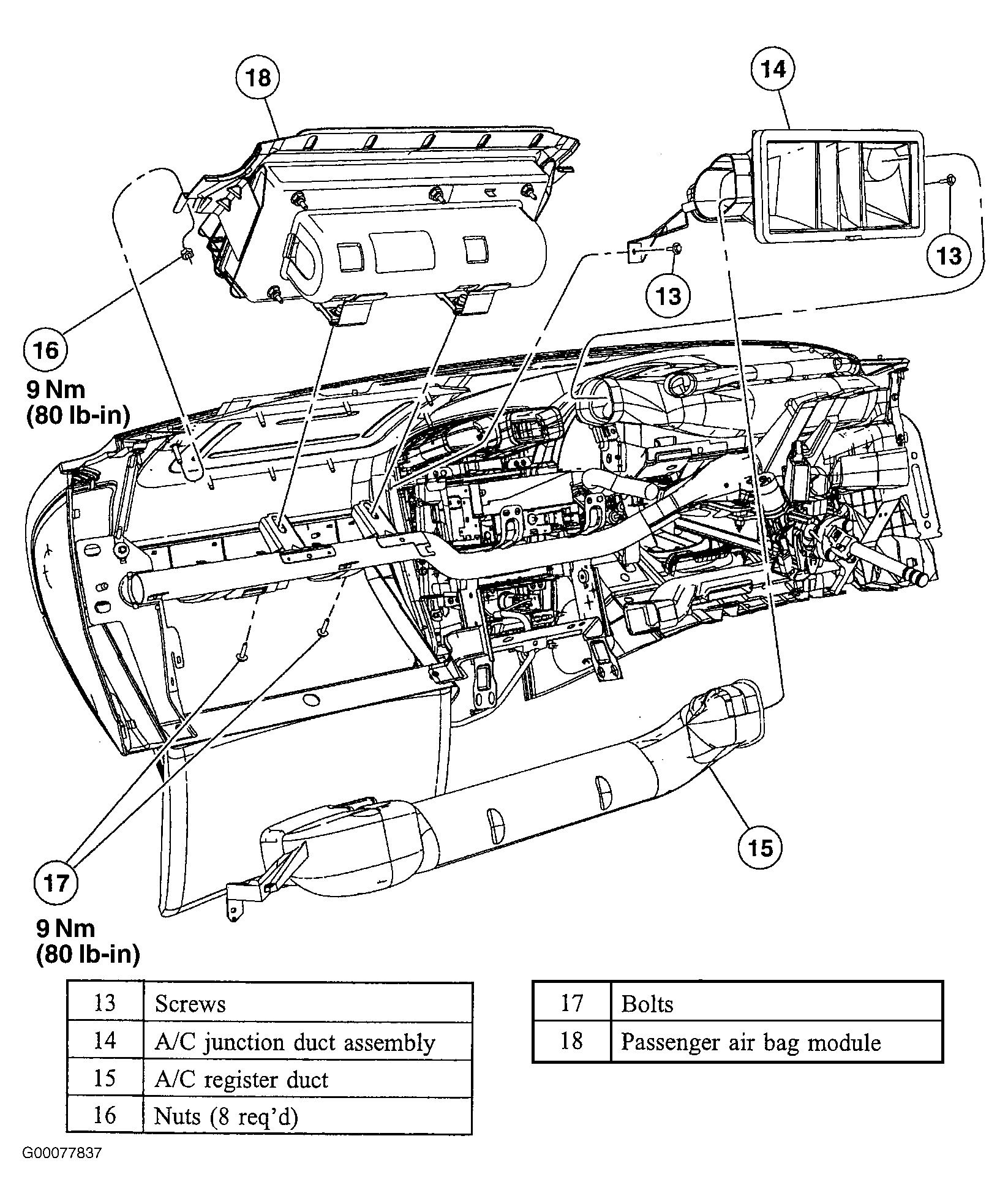

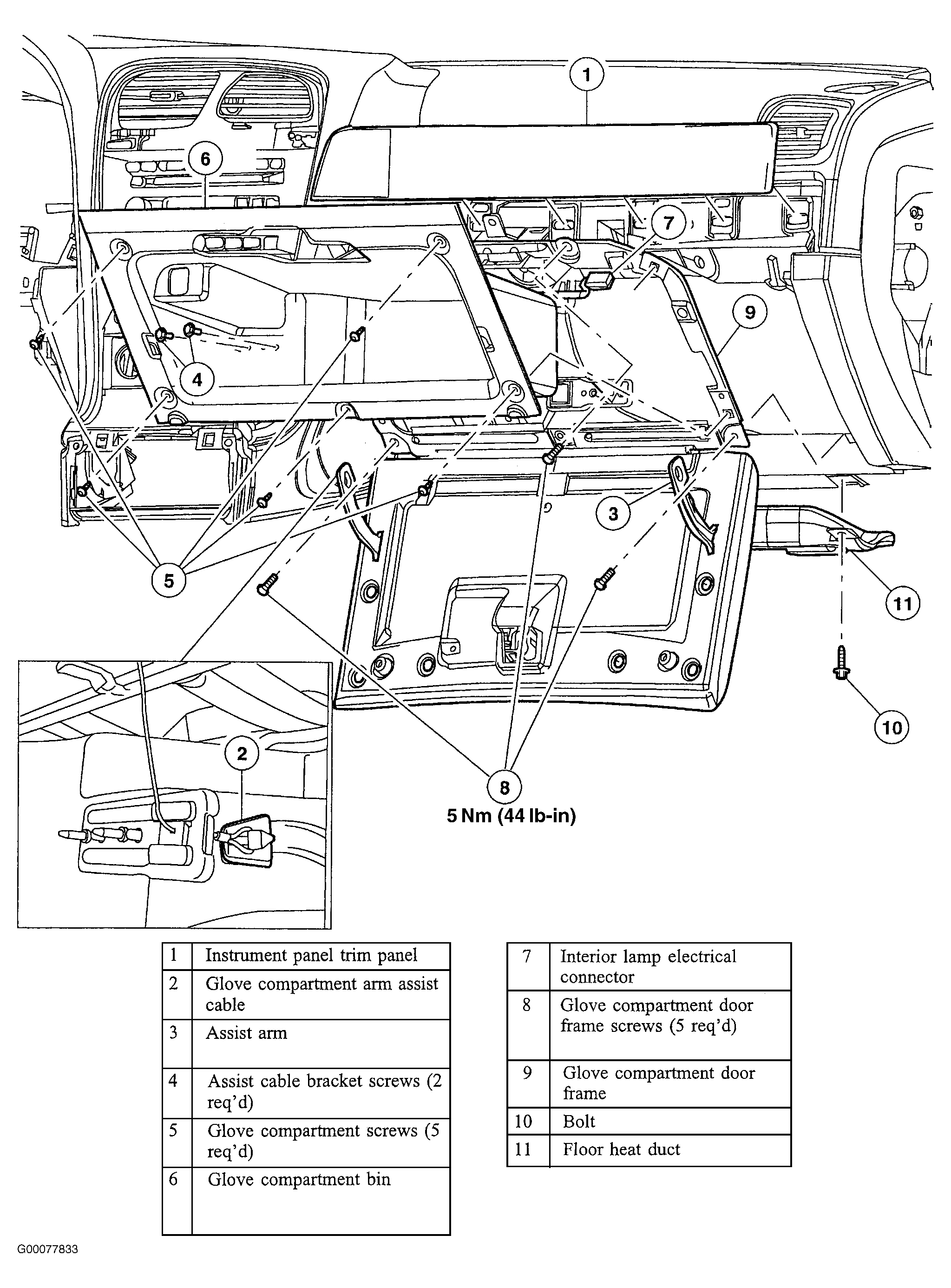

- Position instrument panel on a clean, padded work bench with back facing up. Remove instrument panel components and passenger air bag module in order indicated. See Fig 4 and Fig 5 .
- To install, reverse removal procedure. Check AIR BAG warning light to ensure system is functioning properly. See SYSTEM OPERATION CHECK . Reprogram radio preset frequencies and set clock.
CAUTION:
Electronic modules are sensitive to static electrical charges. If exposed to these charges, damage may result.
