Outer Tie Rod End: Installation

WARNING: This page is about a different car, the 2003 Saturn Vue and 2002 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the outer tie rod to the inner tie rod. See Figure .
  2. Connect the tie rod to the knuckle.
  3. Use the tie rod installer to seat the ball stud taper to specification. See Fig 1 . See TORQUE SPECIFICATIONS  .
  4. Remove the tie rod installer.
  5. Install a new tie rod retention nut. See Figure . Tighten nut to specification. See TORQUE SPECIFICATIONS  .
  6. Install the front tire assembly.
  7. Check the wheel alignment.

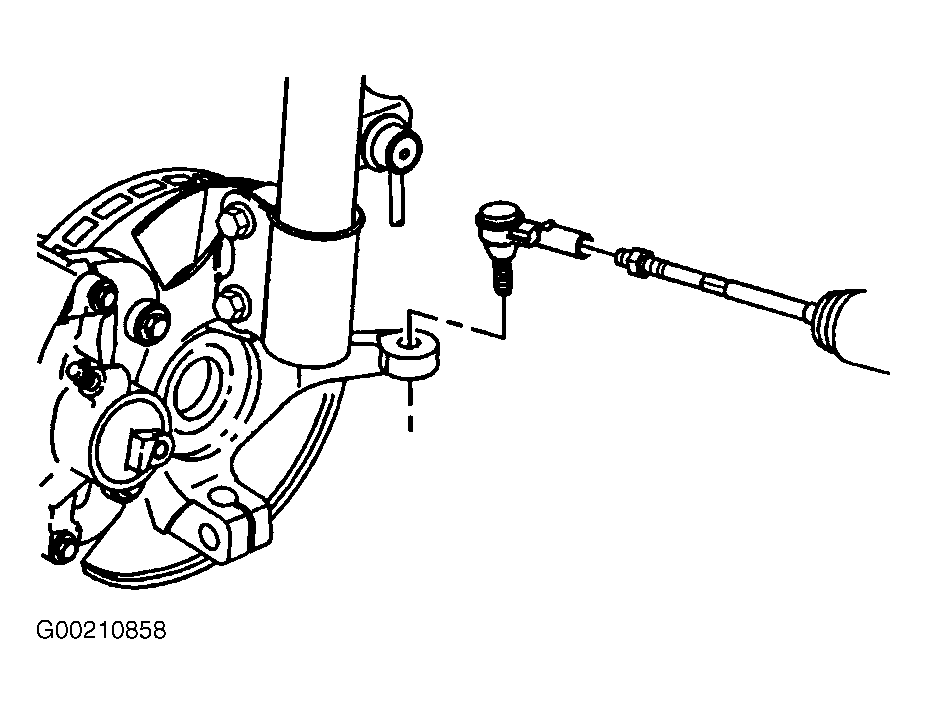

Fig 1: Installing Tie Rod To Knuckle
G00173805Courtesy of GENERAL MOTORS CORP.
