Hydraulic Brake System Diagnosis

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: For hydraulic brake system diagnosis, see Fig 1-Fig 5 .

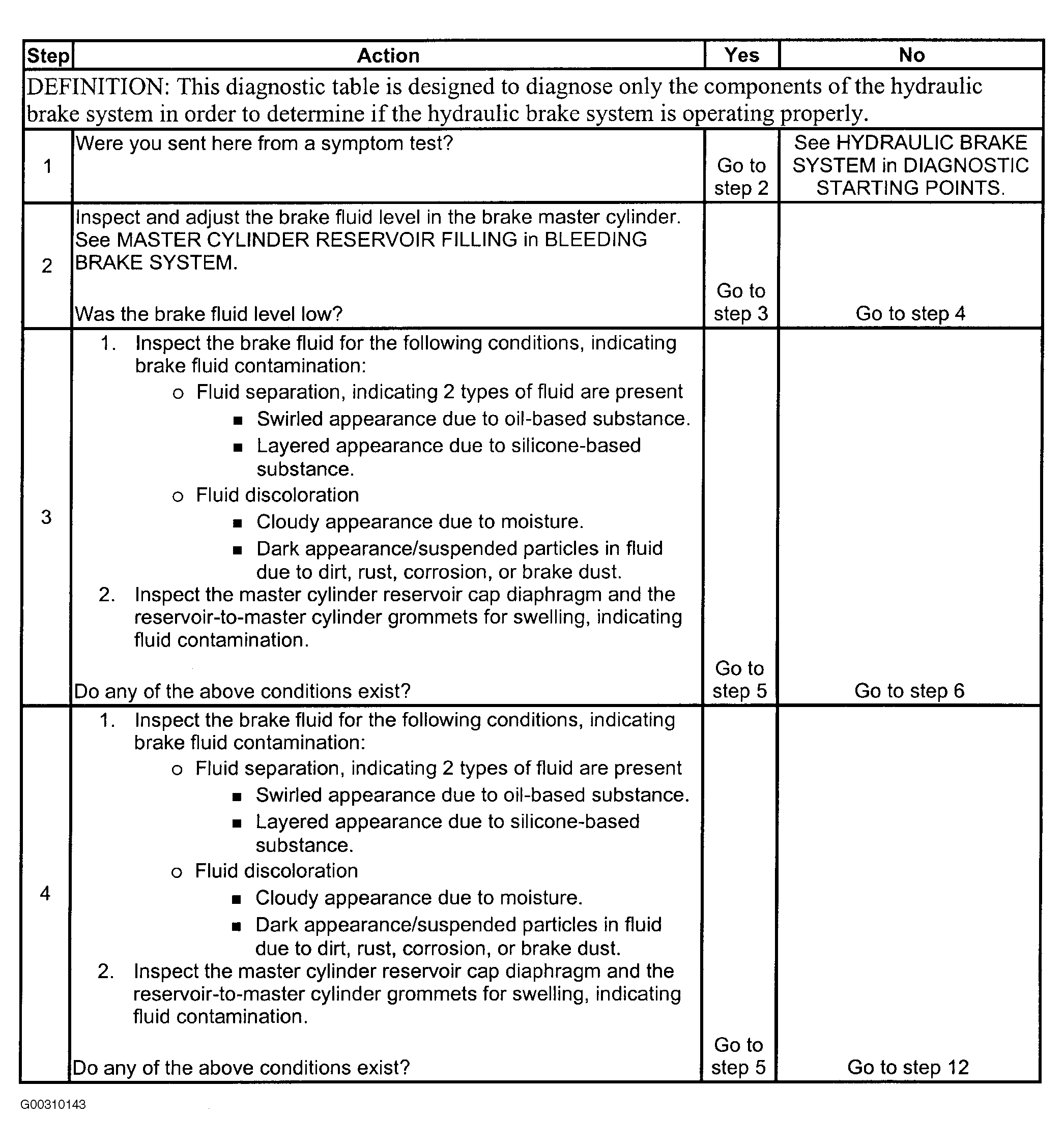

Fig 1: Hydraulic Brake Diagnosis (1 Of 5)
G00310143Courtesy of GENERAL MOTORS CORP.

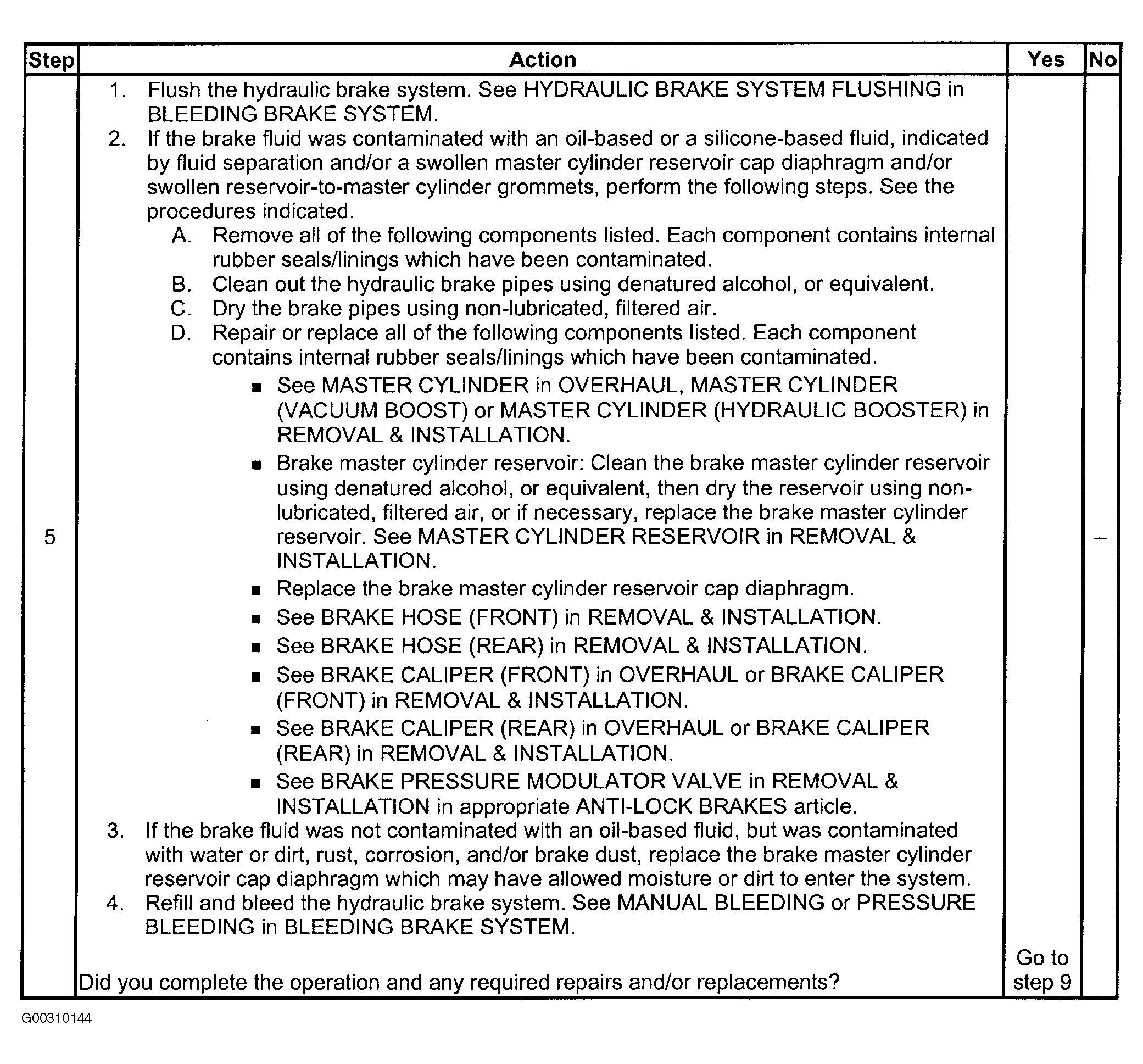

Fig 2: Hydraulic Brake Diagnosis (2 Of 5)
G00310144Courtesy of GENERAL MOTORS CORP.

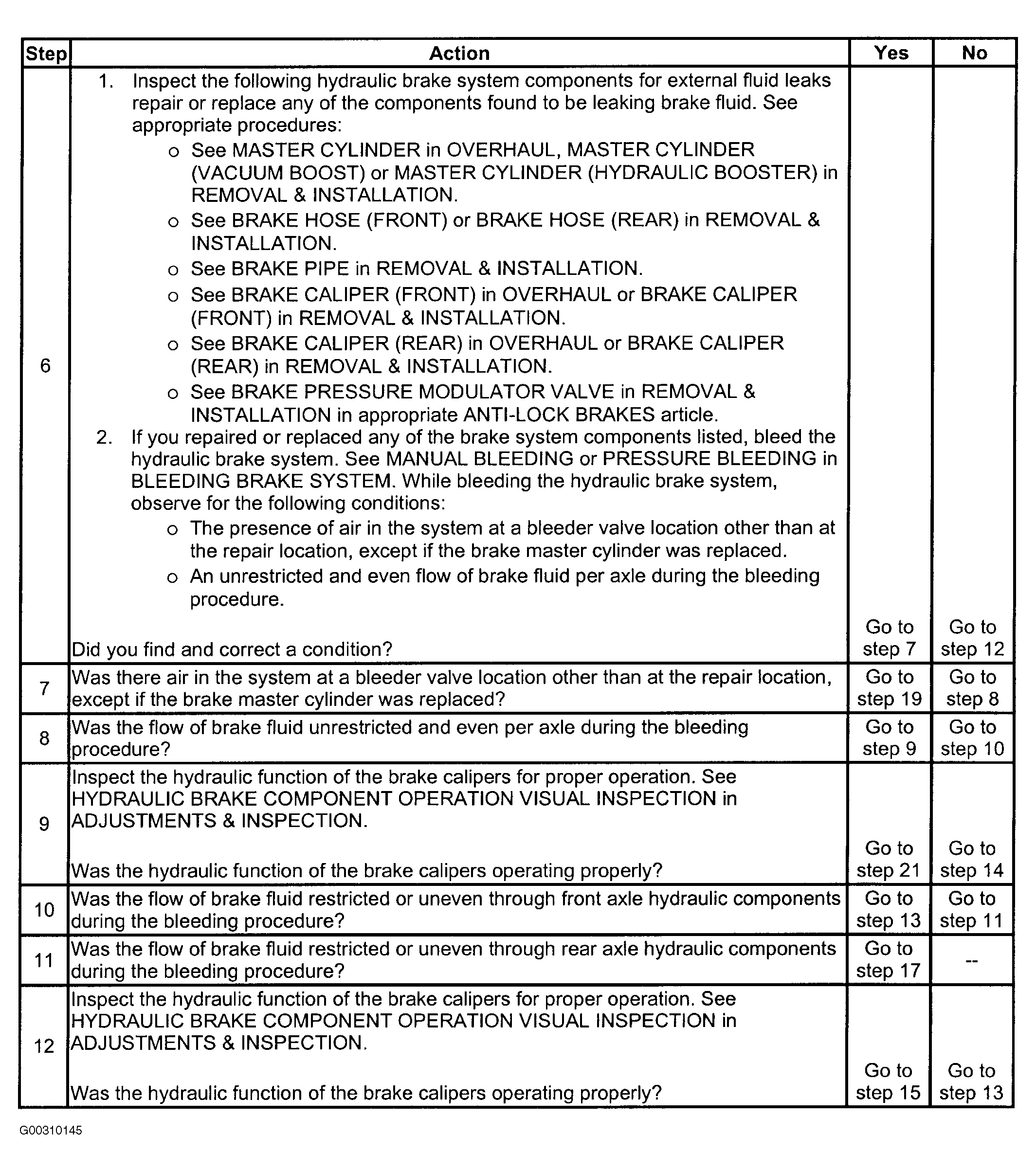

Fig 3: Hydraulic Brake Diagnosis (3 Of 5)
G00310145Courtesy of GENERAL MOTORS CORP.

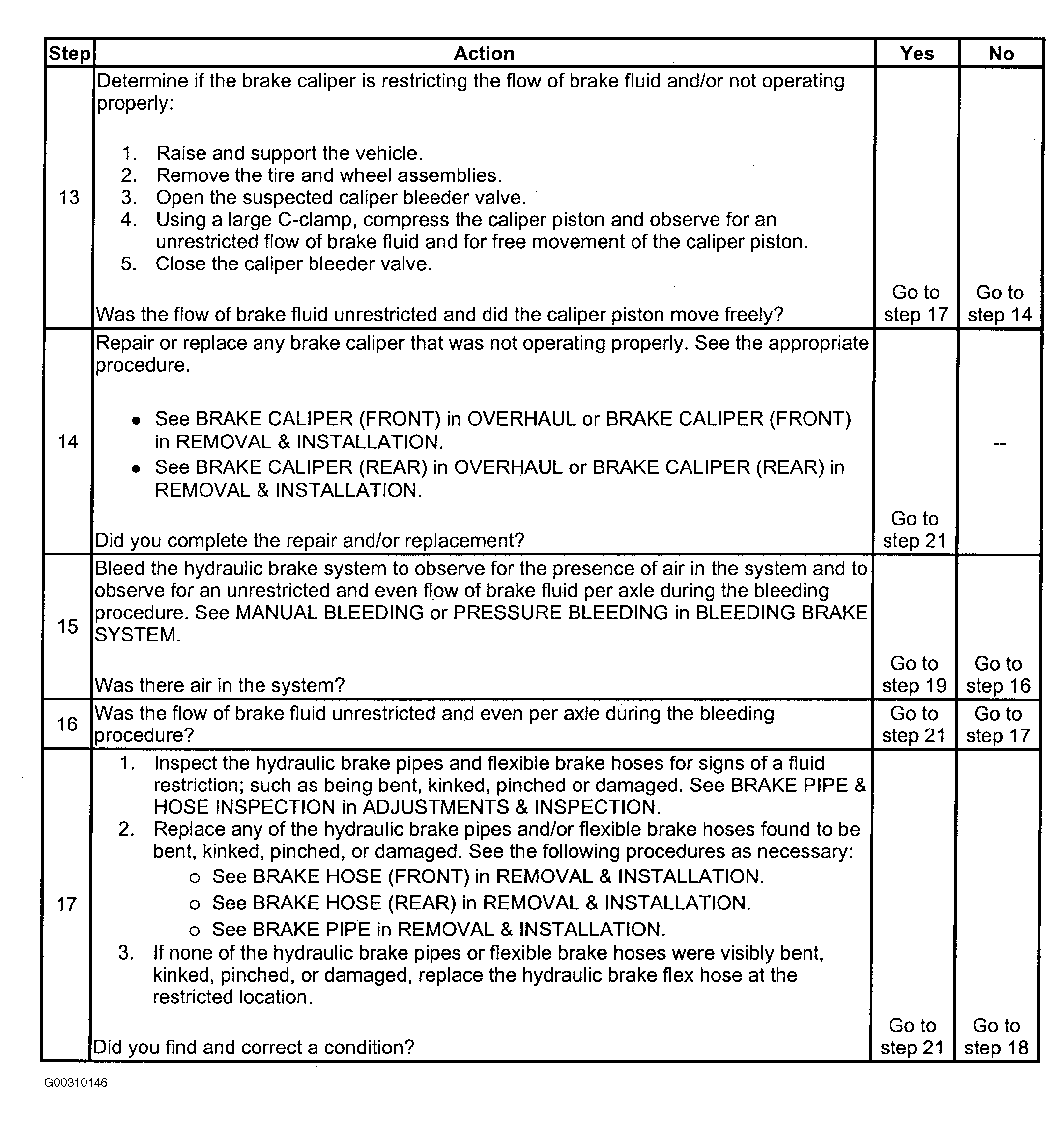

Fig 4: Hydraulic Brake Diagnosis (4 Of 5)
G00310146Courtesy of GENERAL MOTORS CORP.

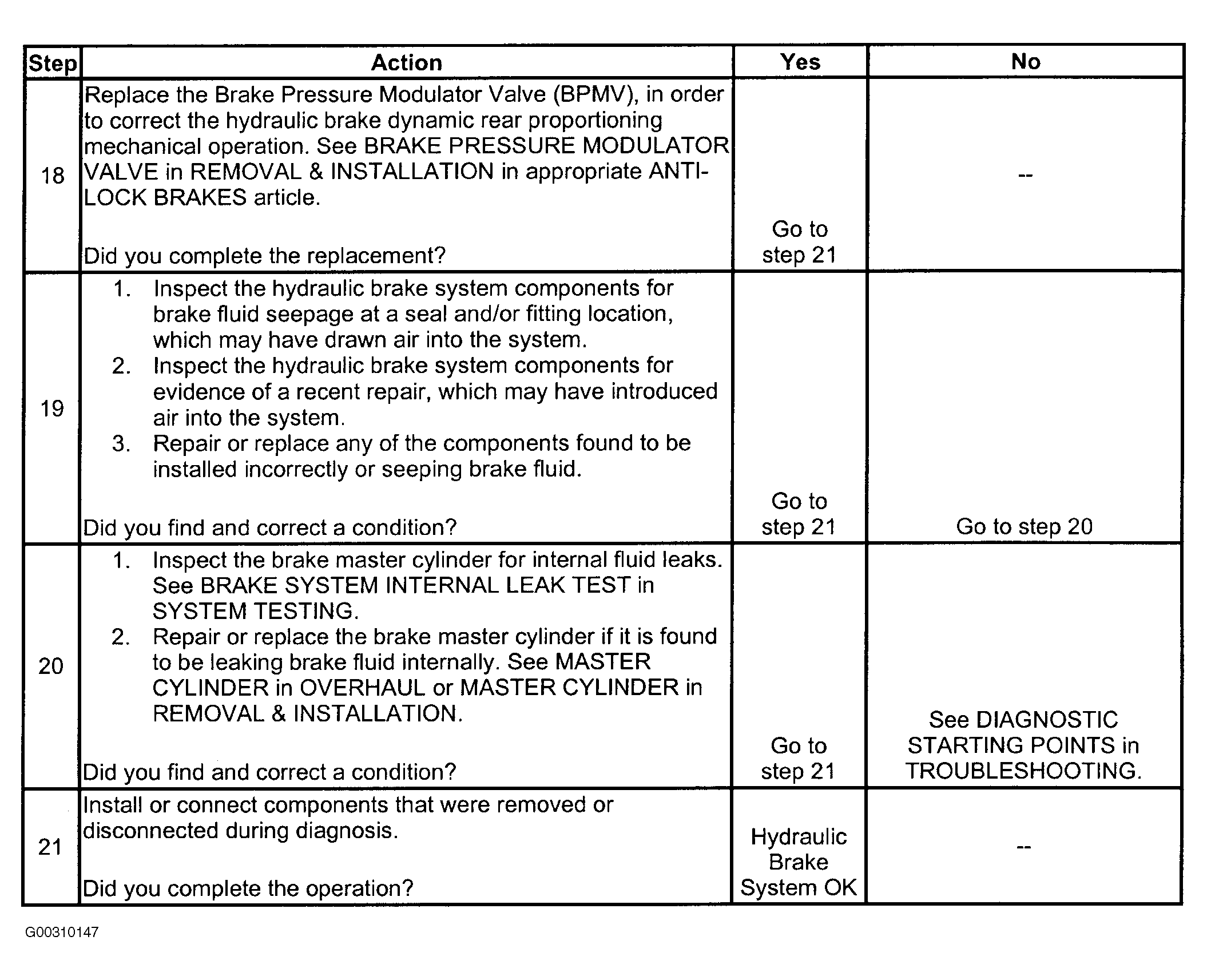

Fig 5: Hydraulic Brake Diagnosis (5 Of 5)
G00310147Courtesy of GENERAL MOTORS CORP.
